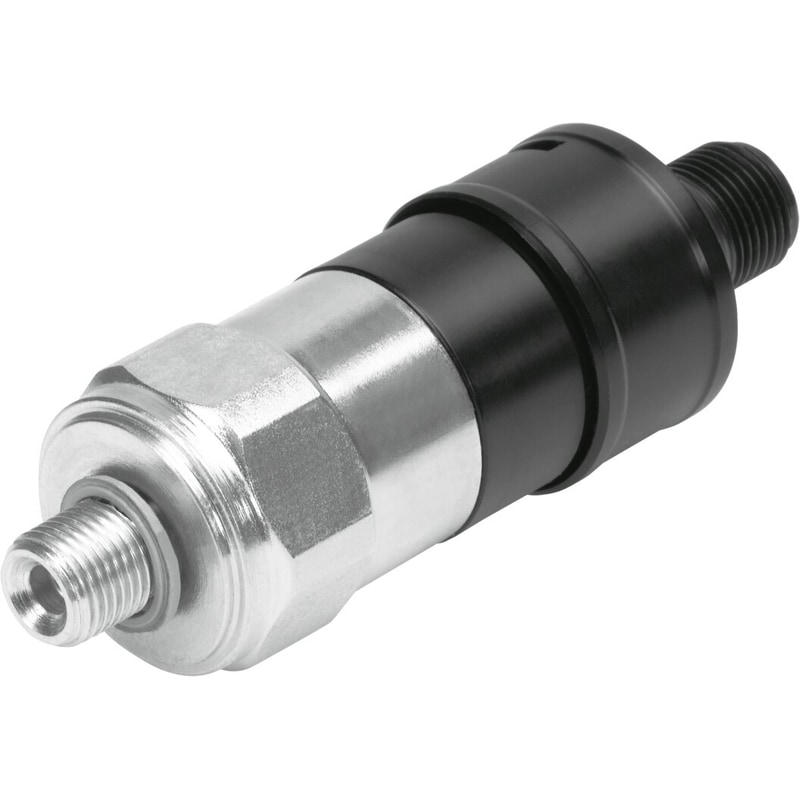

pressure switch SPBA-P2R-G18-W-M12-0,25X Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Pneu./elect. pressure transducer, Operating pressure=-1 – 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4]
| Materials note | Conforms to RoHS |
|---|---|
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Operating pressure | ‘-1 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Switch output | Contact-type |
| Switching function | Threshold value with fixed hysteresis |
| Switching element function | Changeover switch |
| Switch-on point | 0.25 bar |
| Switch-on point maximum | 0.4 bar |
| Switch-off point minimum | 0.05 bar |
| Max. output current DCÂ | 1,000 mA |
