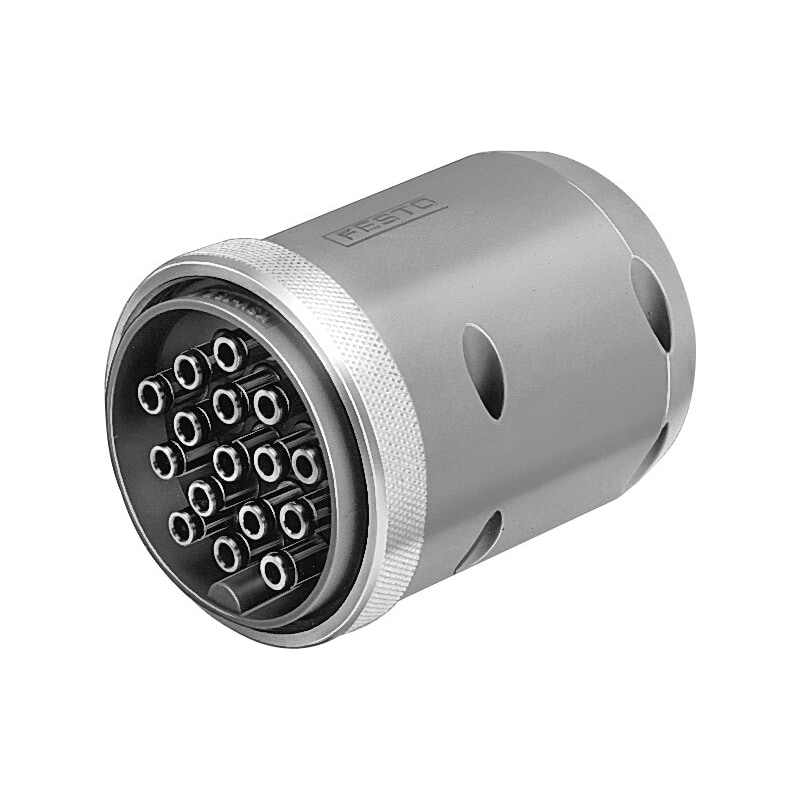

multi-plug KSV-32-B Nominal size=4 mm, Operating pressure=-0,95 – 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=2 – Moderate corrosion stress
| Fitting Type | n/a |
|---|---|
| Nominal size | 4 mm |
| Operating pressure | ‘-0.95 … 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Medium temperature | ‘-10 … 60 °C |
| Ambient temperature | ‘-10 … 60 °C |
| Product weight | 374 g |
| Max. number of connections | 32 |
| Pneumatic connection | PK-2PK-3PK-4 |
| Colour | Grey |
| Materials note | Conforms to RoHS |
