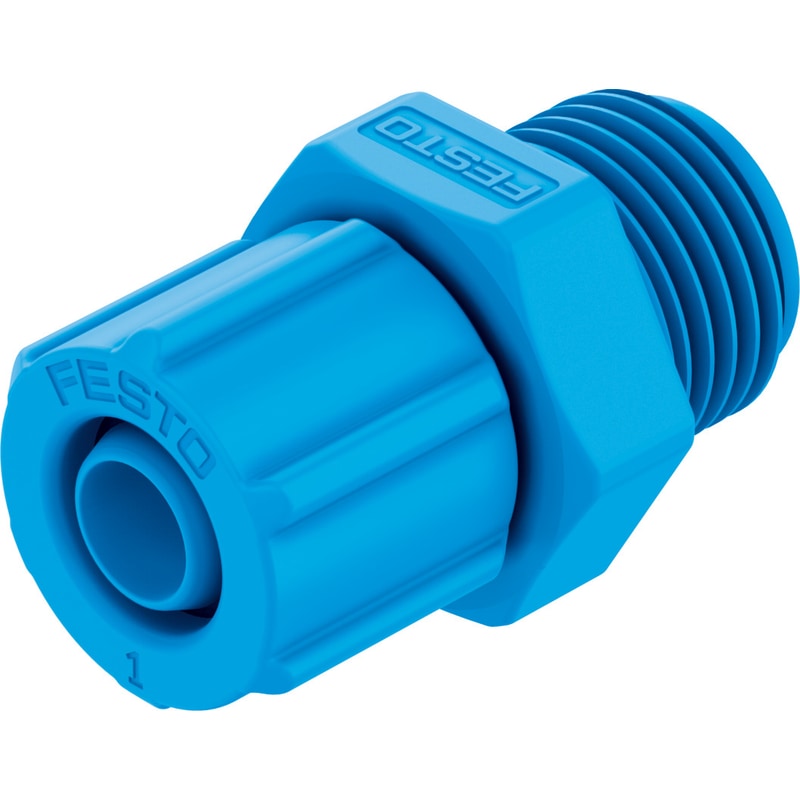

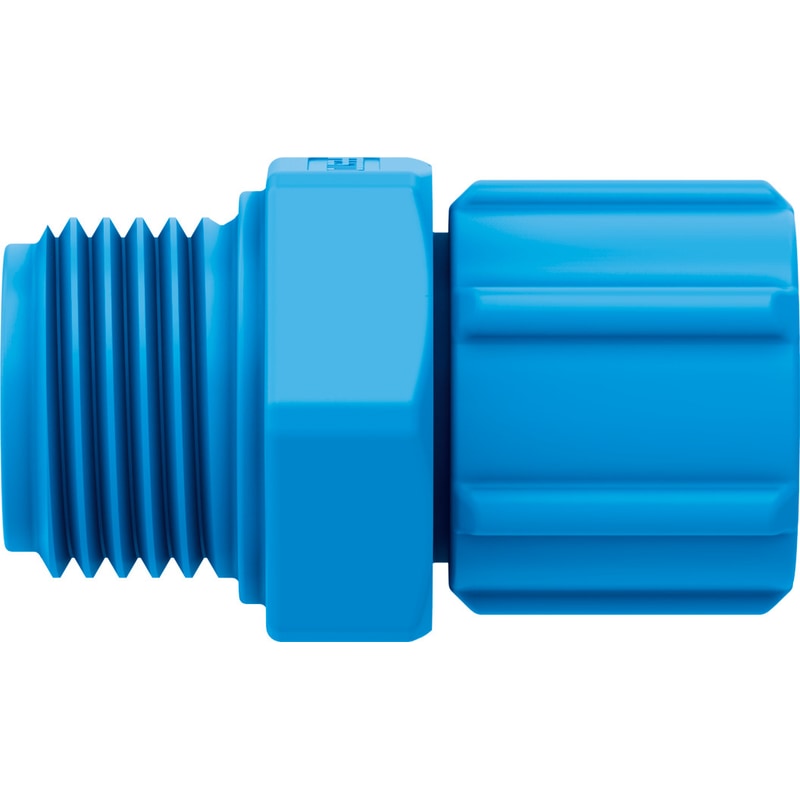

quick connector CK-1/4-PK-6-KU Male thread with sealing ring, polymeric design. Nominal size=5,3 mm, Type of seal on screw-in stud=Sealing edge, Assembly position=Any, Operating pressure complete temperature range=0 – 10 bar, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer’s declaration at www.festo.com)
Fitting Type | n/a |
---|---|
Nominal size | 5.3 mm |
Type of seal on screw-in stud | Sealing edge |
Assembly position | Any |
Operating pressure complete temperature range | 0 … 10 bar |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
Ambient temperature | ‘-10 … 60 °C |
Maritime classification | see certificate |
connection 1Â | Male thread G1/4 |
connection 2Â | For tubing outside diameter 8 mm |
Materials note | Conforms to RoHS |
Material housing | POM |
