SKU: 575592
UNSPSC: 40141603
GTIN: 4052568261290

SKU: 575592 Category:

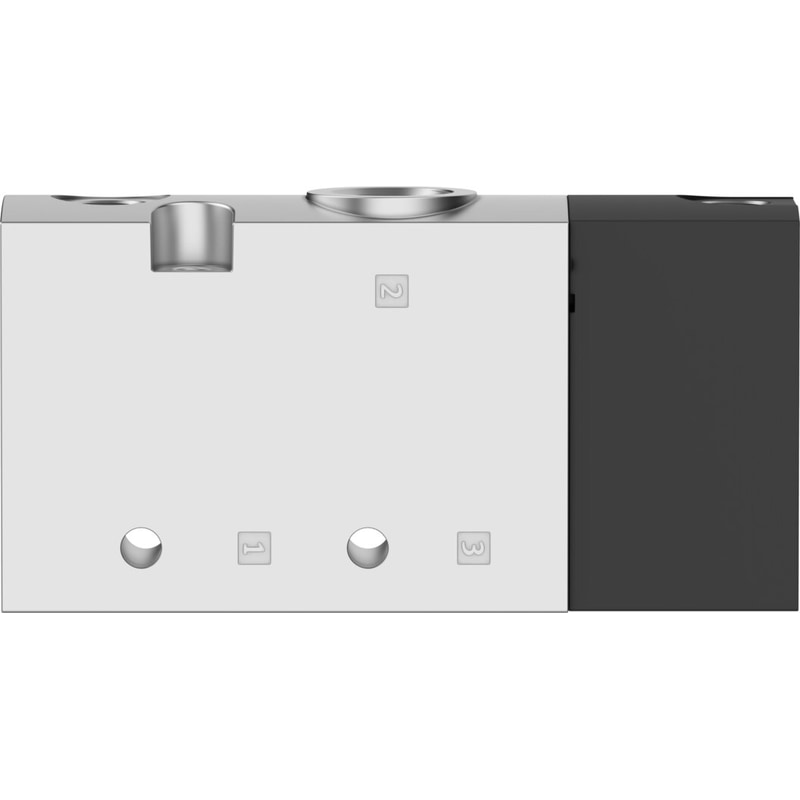

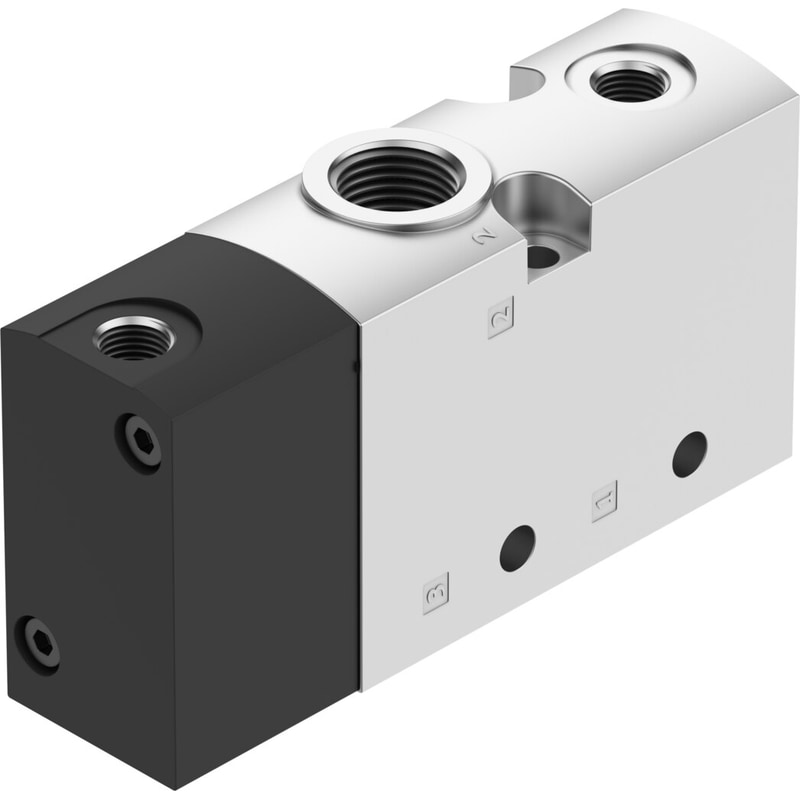

Sturdy, elegant valve with easy handling.

Valve function 3/2, open, monostable
Material of screws Steel, nickel-plated
Lap Overlap
Actuation type Pneumatic
Valve size 31 mm
Standard nominal flow rate 2300 l/min
Pneumatic working port G3/8
Operating pressure -0.9 bar … 10 bar
Design Piston gate valve
Reset method Pneumatic spring
Certification c UL us – Recognized (OL)
Nominal width 9.4 mm
Type code VUWS
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Manual override None
Type of control Direct
Pilot air supply port External
Flow direction Reversible
Symbol 00995402
Pilot pressure 2.5 bar … 10 bar
Switching time off 40 ms
On switching time 21 ms
Explosion prevention and protection Zone 22 (ATEX)Observe the information on the certificateZone 2 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX)
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Temperature of medium -10 °C … 60 °C
Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature -10 °C … 60 °C
