SKU: 575561
UNSPSC: 40141603

SKU: 575561 Category:

Sturdy, elegant valve with easy handling.

Valve function 5/3, pressurized
Material of screws Steel, galvanized
Lap Overlap
Actuation type Pneumatic
Valve size 26.5 mm
Standard nominal flow rate 1000 l/min
Pneumatic working port 1/4 NPT
Operating pressure -0.9 bar … 10 bar
Design Piston gate valve
Reset method Mechanical spring
Certification c UL us – Recognized (OL)
Nominal width 6.3 mm
Type code VUWS
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Manual override None
Type of control Direct
Pilot air supply port Internal
Flow direction Reversible

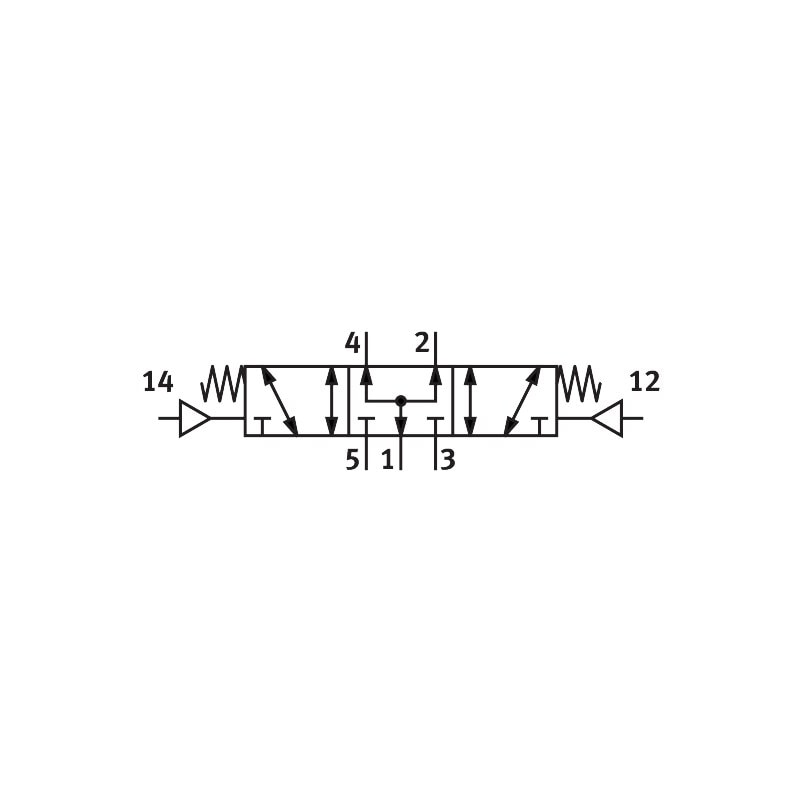

Symbol 00991022
Pilot pressure 2.5 bar … 10 bar
Switching time off 65 ms
On switching time 13 ms
Changeover time 30 ms
Explosion prevention and protection Observe the information on the certificateZone 22 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX)
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Temperature of medium -10 °C … 60 °C
Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
