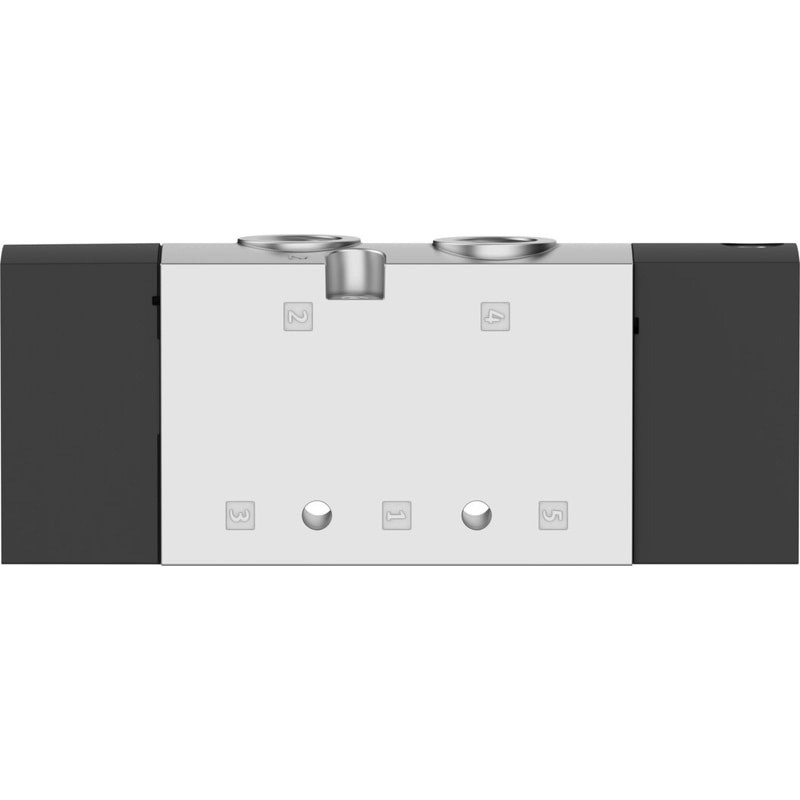

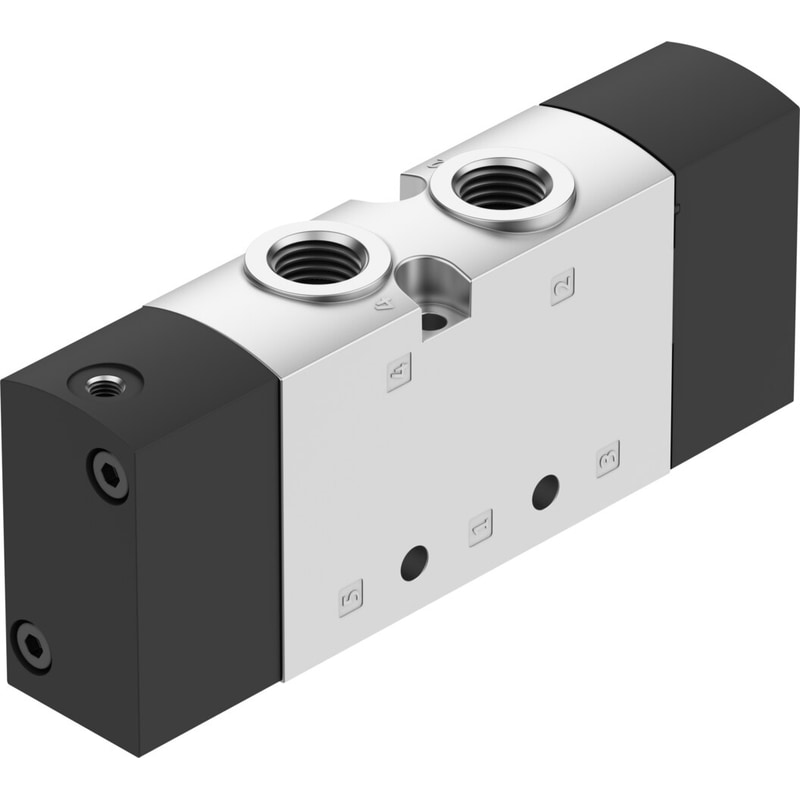

VUWS-L25-M52-M-N14

$62.33

SKU: 575555
UNSPSC: 40141603
GTIN:

SKU: 575555 Category: Tag: Brand:

Sturdy, elegant valve with easy handling.

Valve function5/2, monostable
Material of screwsSteel, galvanized
LapOverlap
Actuation typePneumatic
Valve size26.5 mm
Standard nominal flow rate1300 l/min
Pneumatic working port1/4 NPT
Operating pressure-0.9 bar … 10 bar
DesignPiston gate valve
Reset methodMechanical spring
Certificationc UL us – Recognized (OL)
Nominal width6.9 mm
Type codeVUWS
Exhaust air functionWith flow control option
Sealing principleSoft
Mounting positionAny
Manual overrideNone
Type of controlDirect
Pilot air supply portInternal
Flow directionReversible
Symbol00991029
Pilot pressure2.5 bar … 10 bar
Switching time off42 ms
On switching time10 ms
Explosion prevention and protectionObserve the information on the certificateZone 22 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX)
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)2 – Moderate corrosion stress
Temperature of medium-10 °C … 60 °C
Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 °C … 60 °C
