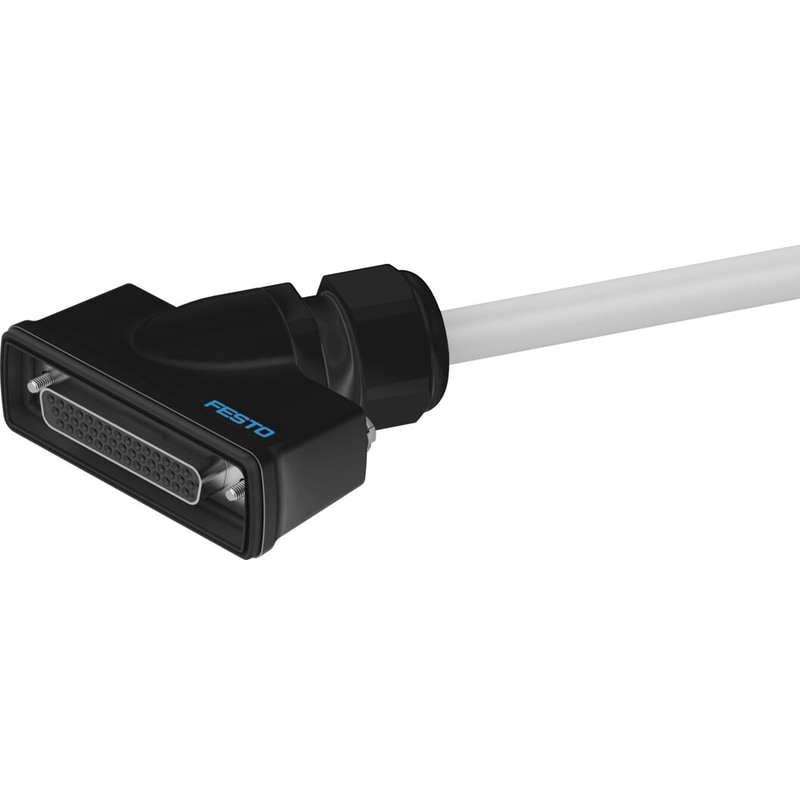

| Type code | NEBV |
|---|---|
| Cable fitting | M20x1.5 |
| Based on norm | DIN 47100 |
| Cable designation | Without label holder |
| Contact durability | 50 |
| Product weight | 1660 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Sub-D |
| Electrical connection 1, number of pins/wires | 44 |
| Electrical connection 1, occupied pins/wires | 44 |
| Electrical connection 1, type of mounting | 2x screw, 4-40 UNC |
| Electrical connection for input 1, connection pattern | 995646 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 44 |
| Electrical connection 2, occupied pins/wires | 44 |
| DC operating voltage range | 0 V … 30 V |
| Current rating at 40°C | 0.86 A |
| Surge resistance | 2.4 kV |
| Cable length | 10 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 42 mm |
| Bending radius, flexible cable installation | ≥ 126 mm |
| Cable diameter | 10.2 mm |
| Cable diameter tolerance | ± 0.3 mm |
| Cable design | 44 x 0.14 mm² |
| Nominal conductor cross section | 0.14 mm² |
| Wire ends | Cut off bluntly |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -35 °C … 80 °C |
| Ambient temperature with flexible cable installation | -5 °C … 80 °C |
| Storage temperature | -35 °C … 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Gray |
| Housing material | PA66-GF30 |
| Housing colour | Black |
| Material of screws | Steel |
| Seals material | NBR |
| Material of pin contacts | BronzeGold-plated |
| Insulating sheath material | PVC |
| Weight | 3.632336 lbs |
|---|---|
| Dimensions | 12.598425 × 9.84252 × 3.149606 in |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connector system | Sub-D |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connector system | Open end |
| Cable length | 10 m |
