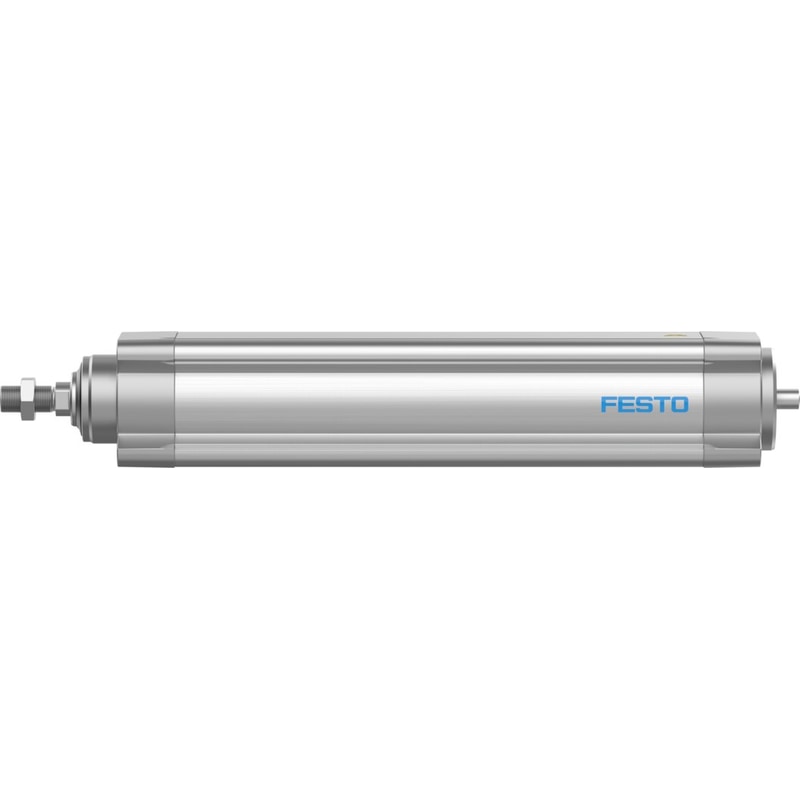

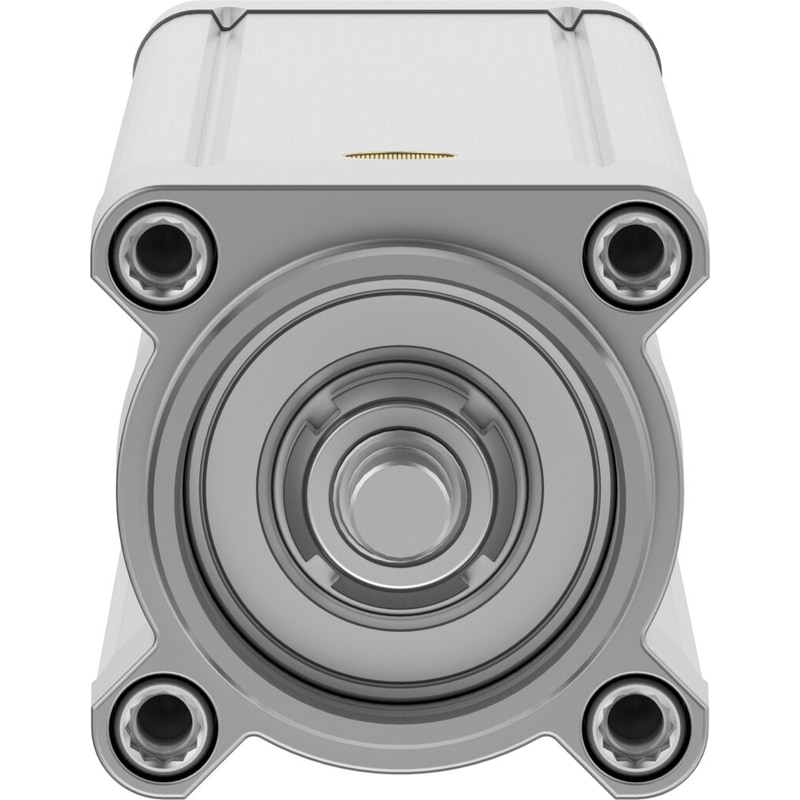

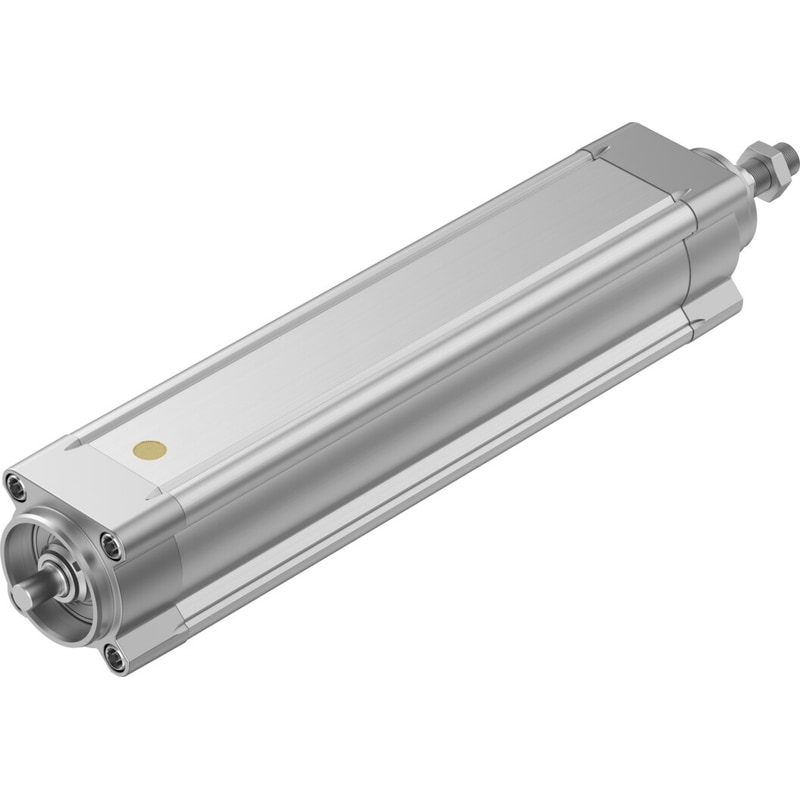

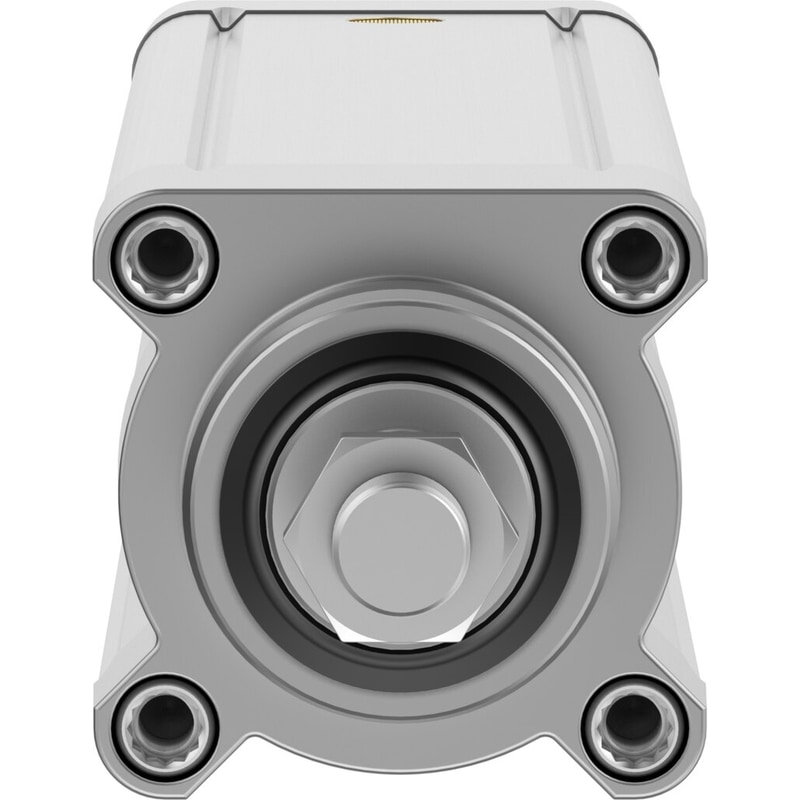

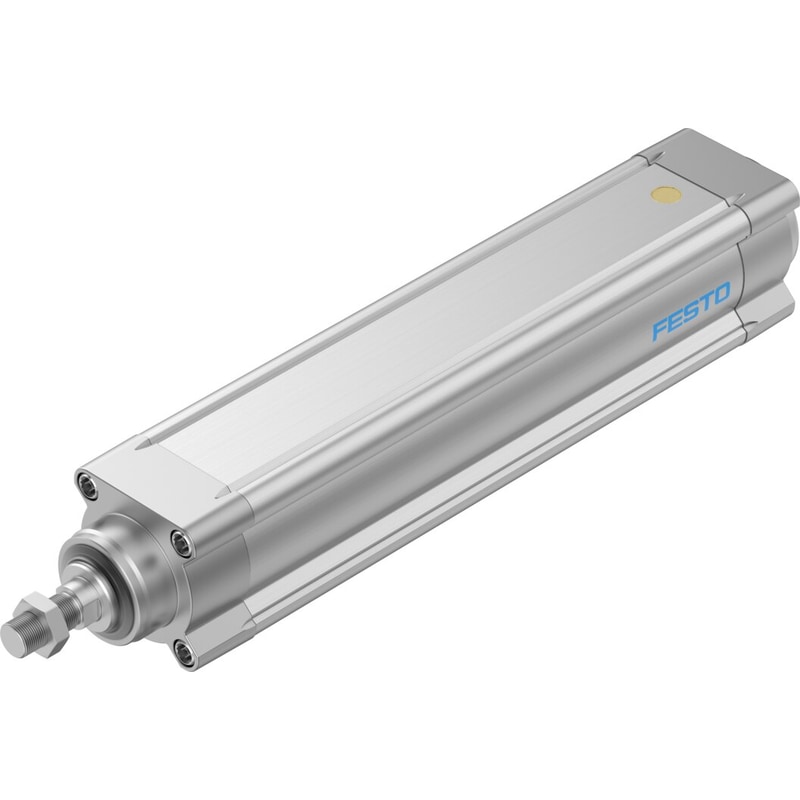

electric cylinder ESBF-BS-63-400-5P With ball screw, electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. Working stroke=400 mm, Size=63, Stroke=400 mm, Piston rod thread=M16x1,5, Reversing backlash=30 µm
| Working stroke | 400 mm |
|---|---|
| Size | 63 |
| Stroke | 400 mm |
| Piston rod thread | M16x1,5 |
| Reversing backlash | 30 µm |
| Spindle diameter | 25 mm |
| Spindle pitch | 5 mm/U |
| Max. angular deflection of piston rod +/-Â | 0.4 deg |
| Based on the standard | ISO 15552 |
| Assembly position | Any |
| Piston-rod end | Male thread |
| Motor type | Servomotor |
| Position detection | For proximity sensor |
