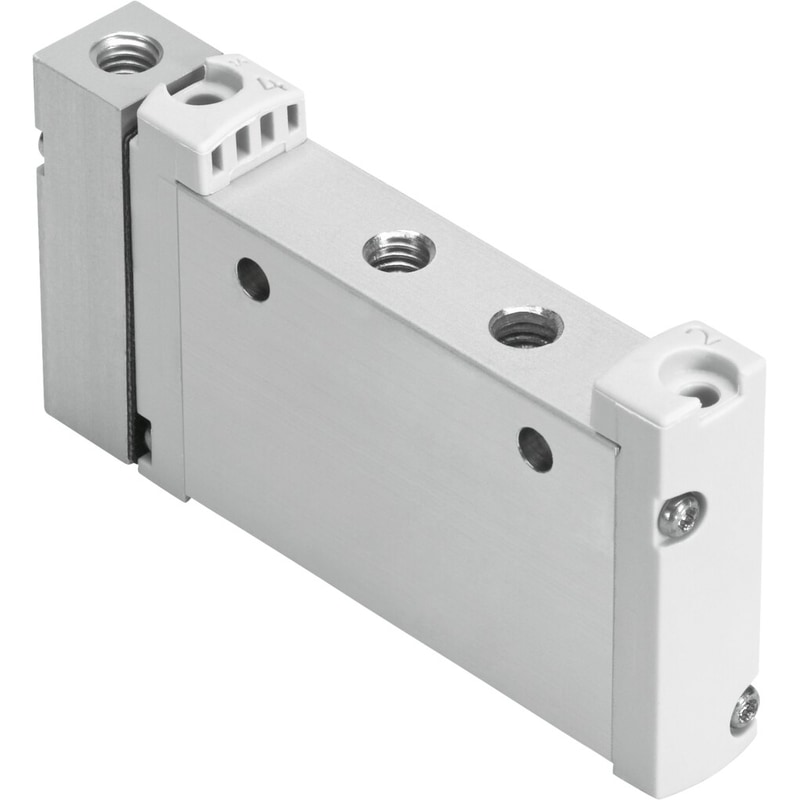

Compact pneumatic valve for high flow rates.
| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Pneumatic |
| Valve size | 10 mm |
| Standard nominal flow rate | 220 l/min |
| Pneumatic working port | M5 |
| Operating pressure | 2.5 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic springMechanical spring |
| Width dimension | 10.5 mm |
| Type code | VUWG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | None |
| Type of control | Direct |
| Flow direction | Reversible with restrictions |
| Symbol | 00992907 |
| Pilot pressure | 2.5 bar … 10 bar |
| Suitability for vacuum | no |
| Switching time off | 12 ms |
| On switching time | 6 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -5 °C … 50 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C … 60 °C |
| Product weight | 45 g |
| Type of mounting | With through-holeOn PR railOptionally: |
| Pilot air port 12 | M5 |
| Pilot air port 14 | M5 |
| Pneumatic connection 1 | M5 |
