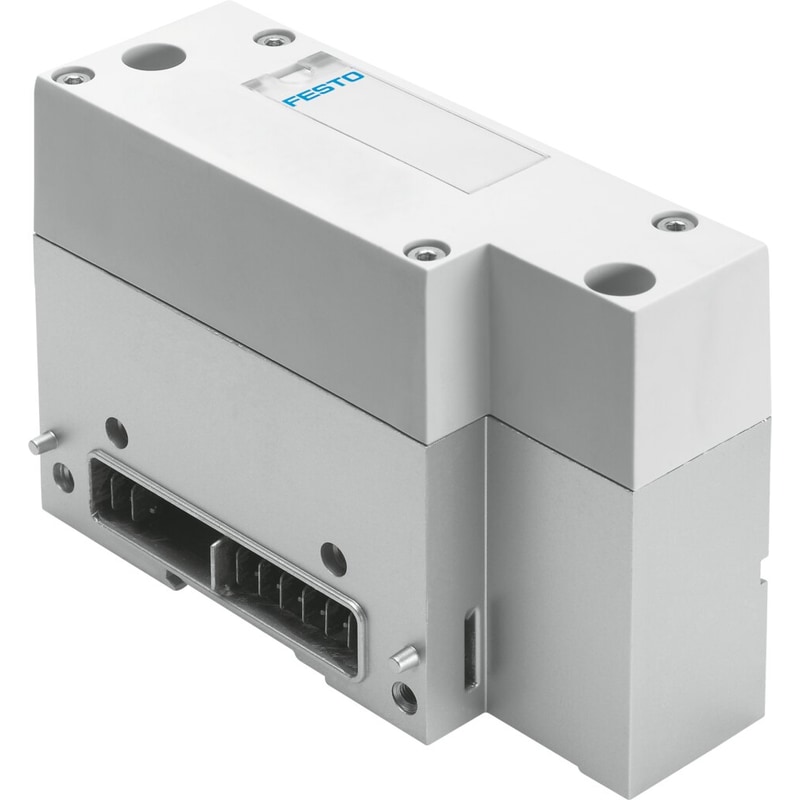

pneumatic interface VABA-S6-1-X2-D Valve terminal interface=Type 44, VTSA, Diagnosis=- Undervoltage of valves, Max. number of valve positions=(* 16 with bistable valves, * 32 with monostable valves), LED displays=(* – 1 Group diagnosis, * – Channel status on valves), Parameters configuring=(* Failsafe per channel, * Forces per channel, * Idle mode per channel, * Module monitoring)
| Valve terminal interface | Type 44, VTSA |
|---|---|
| Diagnosis | ‘- Undervoltage of valves |
| Max. number of valve positions | 16 with bistable valves32 with monostable valves |
| LED displays | ‘- 1 Group diagnosis- Channel status on valves |
| Parameters configuring | Failsafe per channelForces per channelIdle mode per channelModule monitoring |
| Protection (short circuit)Â | Internal electronic fuse protection per valve output |
| Operating voltage range DCÂ | 21.6 … 26.4 V |
| Intrinsic current consumption at operating voltage | Typically 15 mA (power supply for electronics)Typically 50 mA (load voltage supply for valve) |
| Max. power supply per channel | 0,2 A |
| Max. resultant current per module | 0.166666666666667 |
| Nominal operating voltage DCÂ | 24 V |
| Electrical isolation channel – internal bus | Yes, for additional power supply |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
