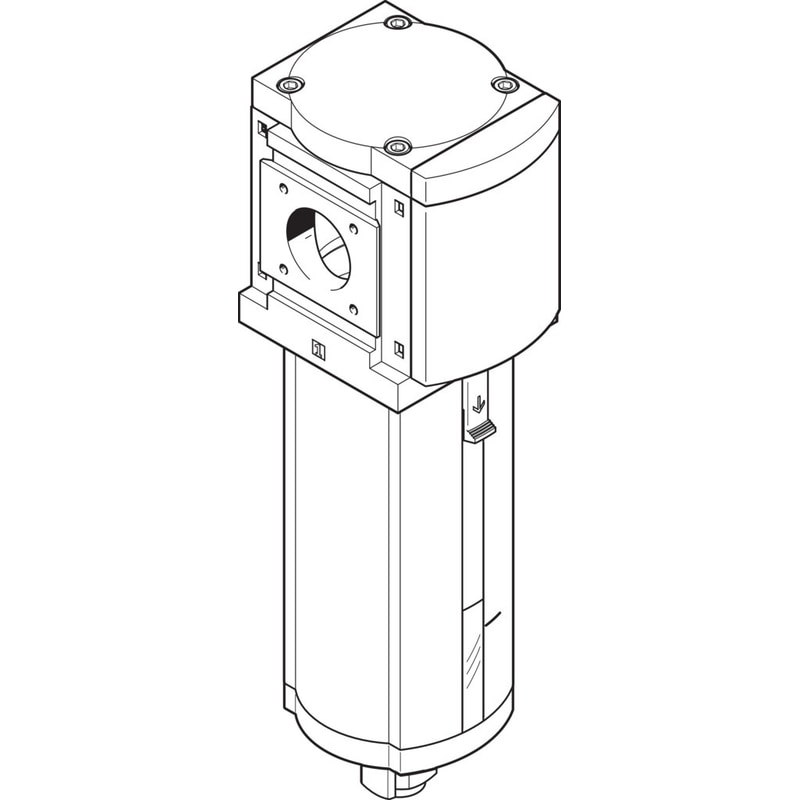

water separator MS9-LWS-G-U-V Condensate drain through fully automatic condensate drain valve. Size=9, Series=MS, Assembly position=Vertical +/- 5°, Condensate drain=fully automatic, Design structure=Centrifugal separator
| Size | 9 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Condensate drain | fully automatic |
| Design structure | Centrifugal separator |
| Max. condensate volume | 220 ml |
| Bowl guard | integrated as metal shell |
| Degree of condensate separation | 0.99 |
| Operating pressure | 2 … 12 bar |
| Standard nominal flow rate | 15,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:7:4] |
| Vibration resistance | Transport application test at severity level 1 in accordance with FN 942017-4 and EN 60068-2-6 |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
