| KC characters | KC-EMV |
|---|---|
| Nominal width pressurization | 7 mm |
| Exhaust nominal width | 7 mm |
| Type code | MPPES |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |

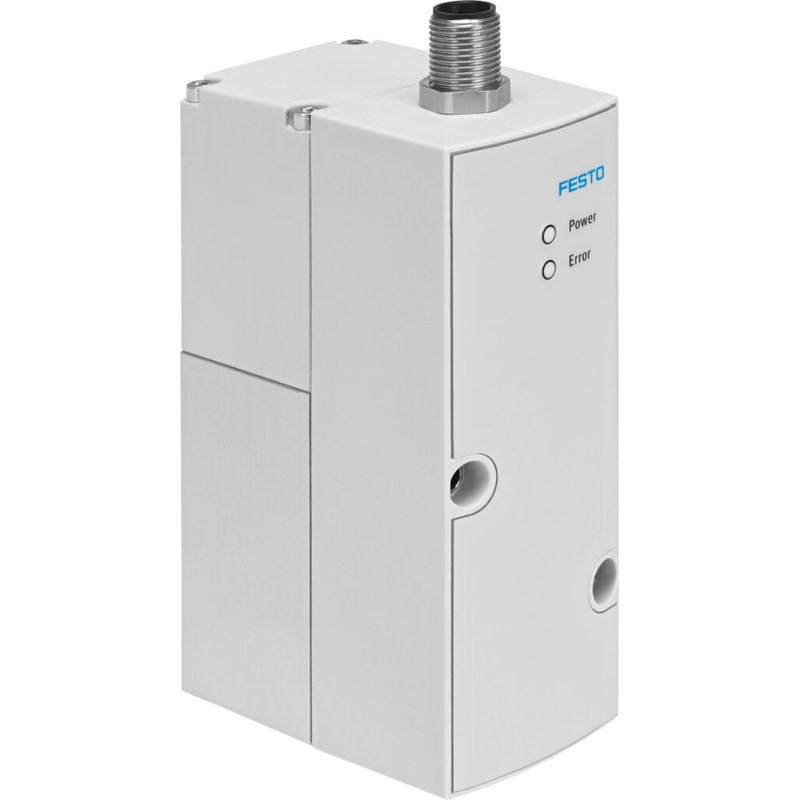

| Design | Pilot-controlled piston control valve |
| Short-circuit protection | For all electrical connections |
| Safety instructions | MPPES safety position: if the power supply cable breaks, the outlet pressure will drop to 0 bar. |
| Symbol | 00995304 |
| Reverse polarity protection | for all electrical connections |
| Valve function | 3-way proportional pressure control valve closed |
| Operating pressure | ≤ 8 bar |
| Pressure regulation range | 0 bar … 6 bar |
| Inlet pressure 1 | 7 bar … 8 bar |
| Max. pressure hysteresis | 0.05 bar |
| Switching time off | 640 ms |
| On switching time | 200 ms |
| DC operating voltage range | 18 V … 30 V |
| Residual ripple | 10 % |
| Setpoint/actual values | Current type 4–20 mA |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 0 °C … 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C … 50 °C |
| Certification | RCM compliance mark |
| Product weight | 1310 g |
| Electrical connection | Round design8-pinM16x0.75Plugas per DIN 45326 |
| Type of mounting | With through-hole |
| Weight | 1.146404 lbs |
|---|---|
| Dimensions | 8.543307 × 4.566929 × 2.559055 in |
