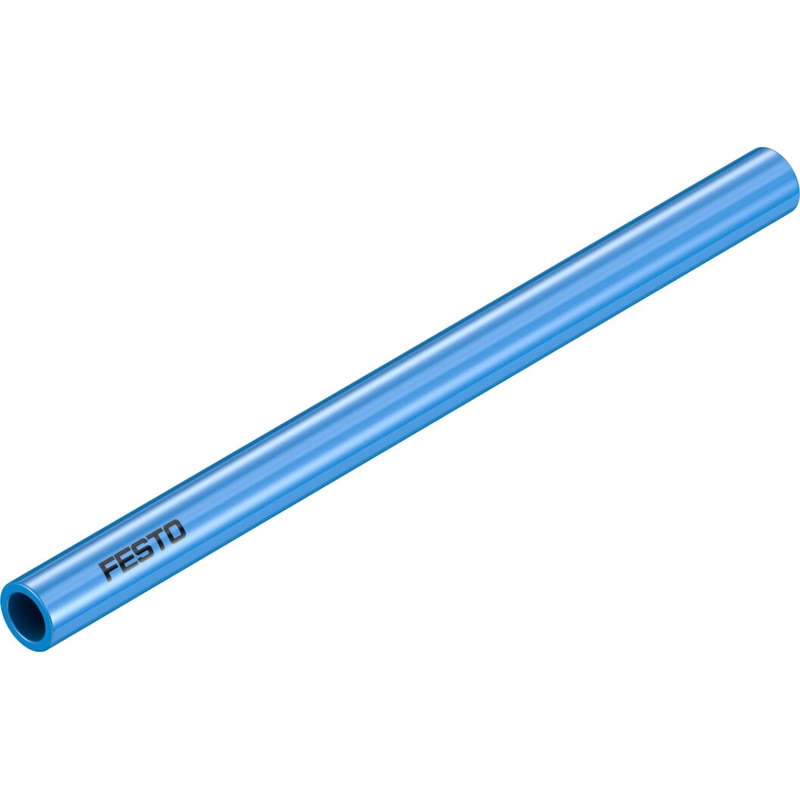

| Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
|---|---|
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Outside diameter | 16 mm |
| Bending radius relevant for flow rate | 90 mm |
| Inside diameter | 11.8 mm |
| Min. bending radius | 50 mm |
| Type code | PUN-V0 |
| Temperature-dependent operating pressure | -0.95 bar … 9 bar |
| Operating medium | Water as per manufacturer’s declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-] |
| Material fire test | UL94 V-2 (0.75mm)UL94 V-0 (3mm) |
| Ambient temperature | -35 °C … 60 °C |
| Certification | German Technical Control Board (TÃœV) |
| Product weight by length | 0.122 kg/m |
| Pneumatic connection | For plug connection outside diameter 16 mm |
| Color | Blue |
| Information on color | Deviates from the standard color due to flame protection |
| Shore hardness | D 54 +/-3 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of pneumatic tubing | TPE-U(PU) |
| Weight | 0.299035 lbs |
|---|---|
| Dimensions | 19.88189 × 19.88189 × 6.102362 in |
| Outside diameter | 16 mm |
| Inside diameter | 11.8 mm |
| Temperature-dependent operating pressure | -0.95 bar – 9 bar |
| Ambient temperature | -35?C – 60?C |
