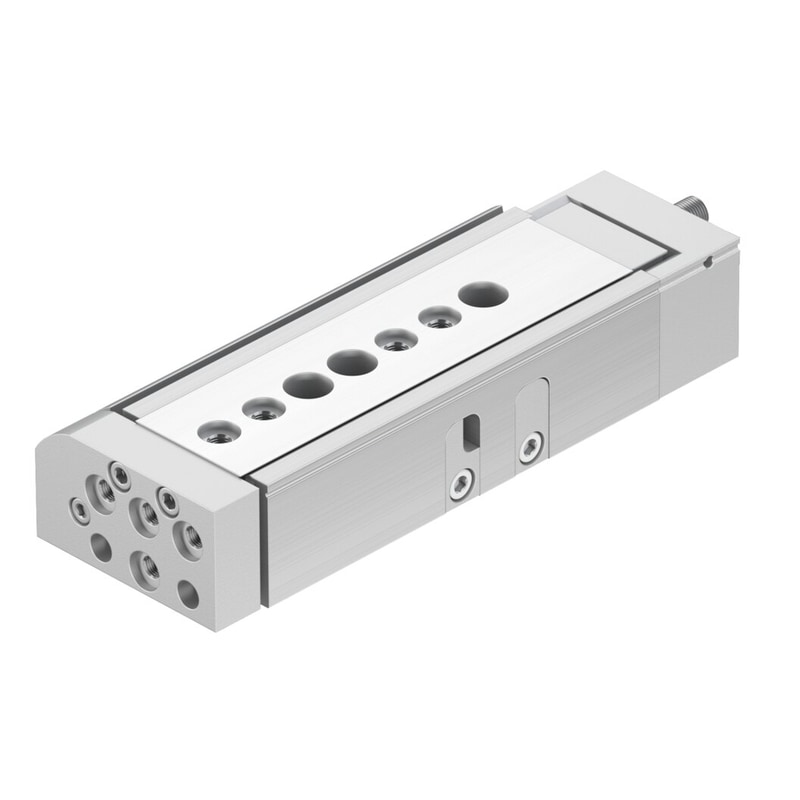

mini slide DGSL-8-40-EA Stroke=40 mm, Adjustable endposition range/front length=20,5 mm, Adjustable endposition range/rear length=3,5 mm, Piston diameter=10 mm, Operating mode of drive unit=Yoke
| Stroke | 40 mm |
|---|---|
| Adjustable endposition range/front length | 20.5 mm |
| Adjustable endposition range/rear length | 3.5 mm |
| Piston diameter | 10 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | Short elastic cushioning rings/pads at both ends |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 … 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | 0,3 mm |
