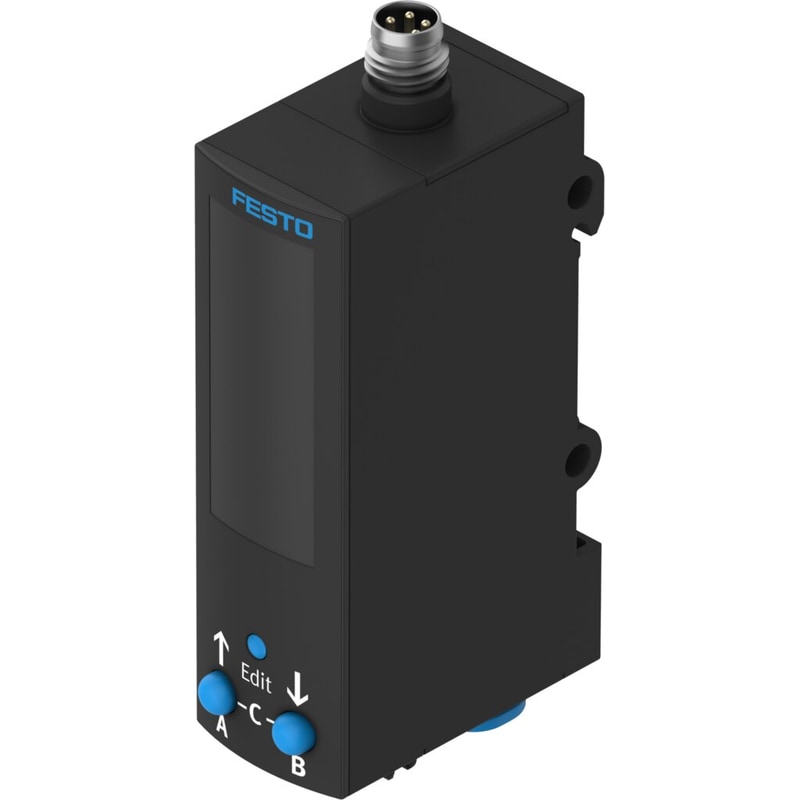

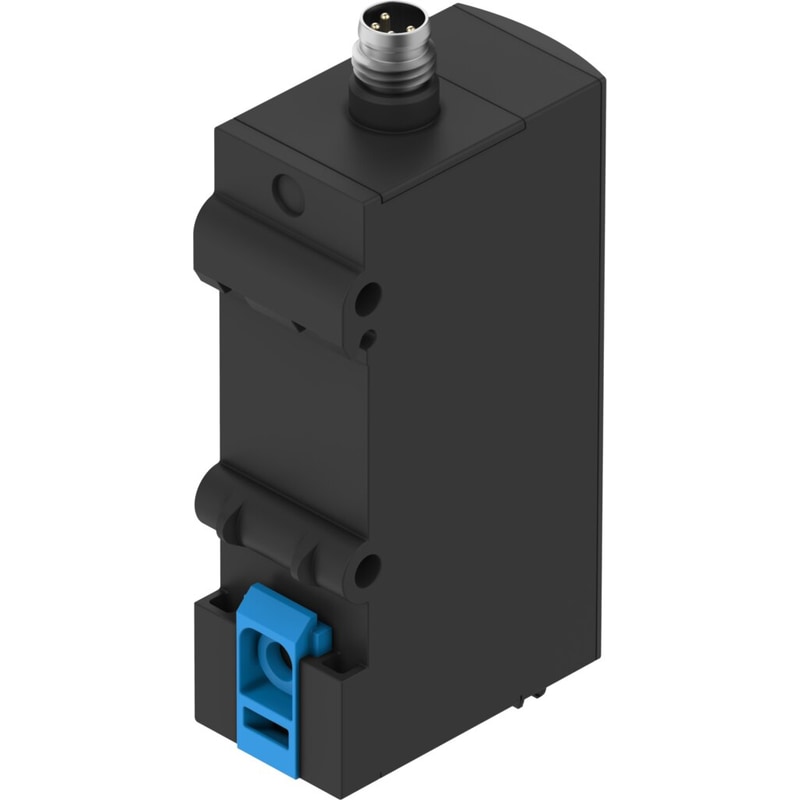

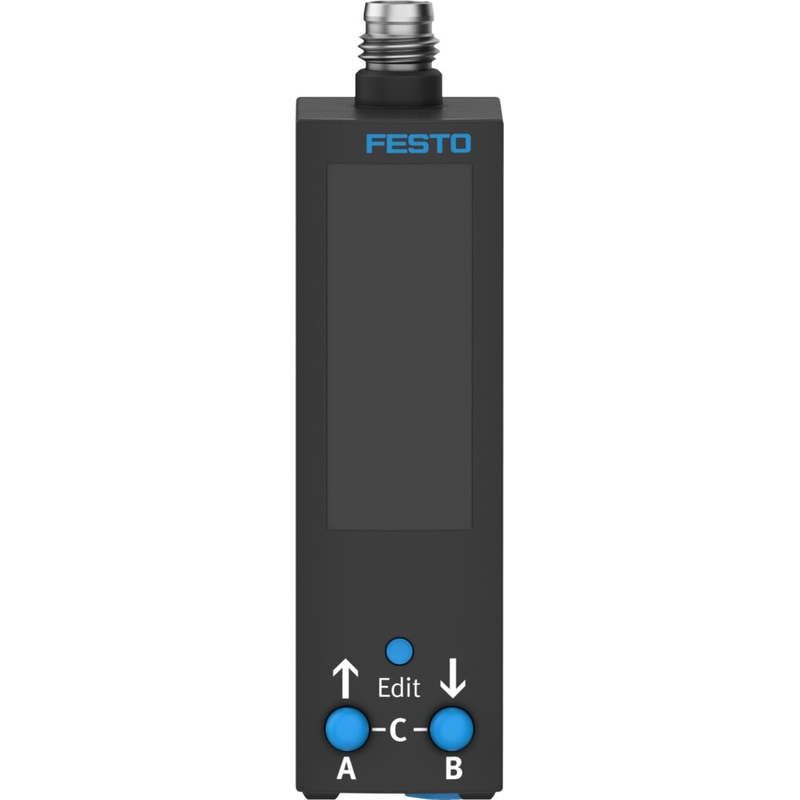

pressure sensor SDE3-D10M-B-HQ4-2P-M8 Authorisation=(* RCM Mark, * c UL us – Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS), Measured variable=1x relative pressure/1x differential pressure, Measurement method=Piezoresistive pressure sensor with display
| Authorisation | RCM Markc UL us – Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Measured variable | 1x relative pressure/1x differential pressure |
| Measurement method | Piezoresistive pressure sensor with display |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 … 50 °C |
| Ambient temperature | 0 … 50 °C |

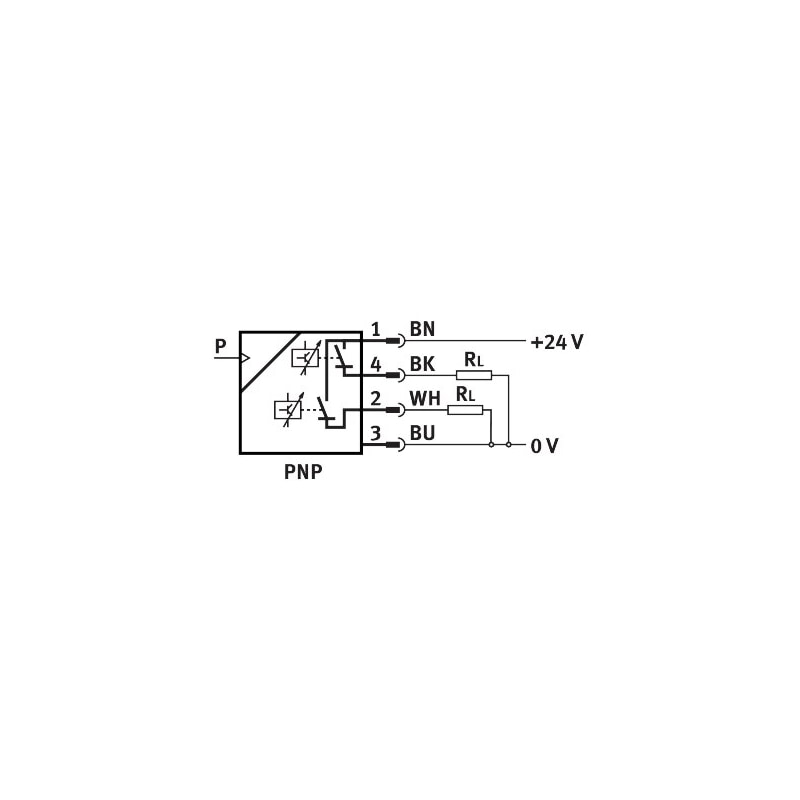

| Switch output | 2xPNP |
| Switching function | Freely programmable |
