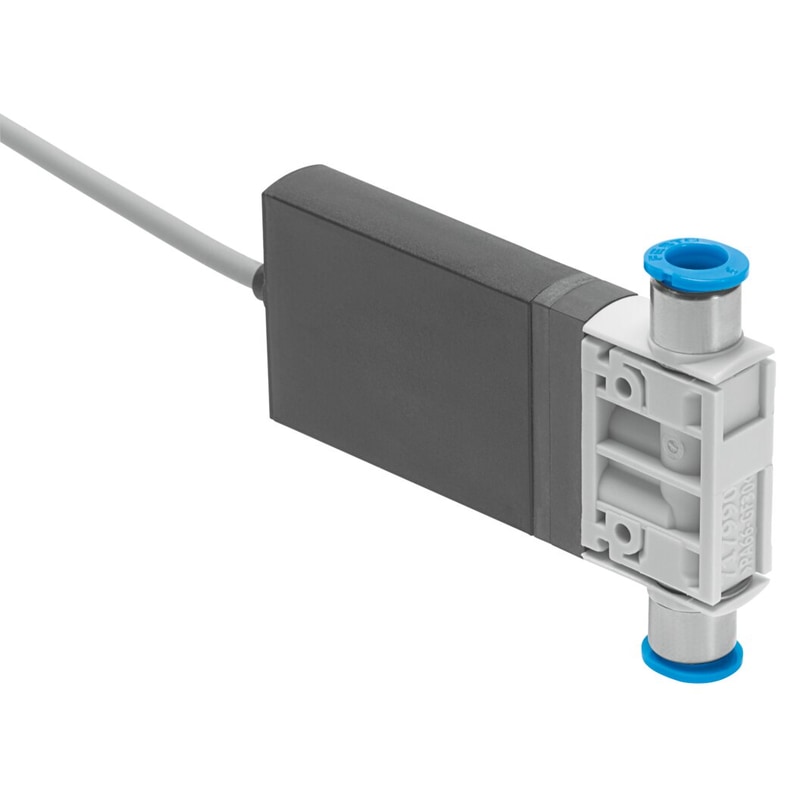

solenoid valve MHJ10-S-2,5-QS-1/4-HF-U Valve function=2/2 closed, monostable, Type of actuation=electrical, Width=10 mm, Standard nominal flow rate=160 l/min, Operating pressure=0,5 – 6 bar
| Valve function | 2/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 10 mm |
| Standard nominal flow rate | 160 l/min |
| Operating pressure | 0.5 … 6 bar |
| Design structure | Poppet valve without spring return |
| Type of reset | Air spring |
| Protection class | IP65 |
| Grid dimension | 10.5 mm |
| Operating conditions to DIN VDE 0580Â | S3 50% 20 min. with individual valveS3 25% 20 min. with block mounting |
| Note on operation | Power supply unit must be able to supply at least 1.7 A without voltage dropDo not operate without flow |
| Sealing principle | Hard |
| Assembly position | Any |
