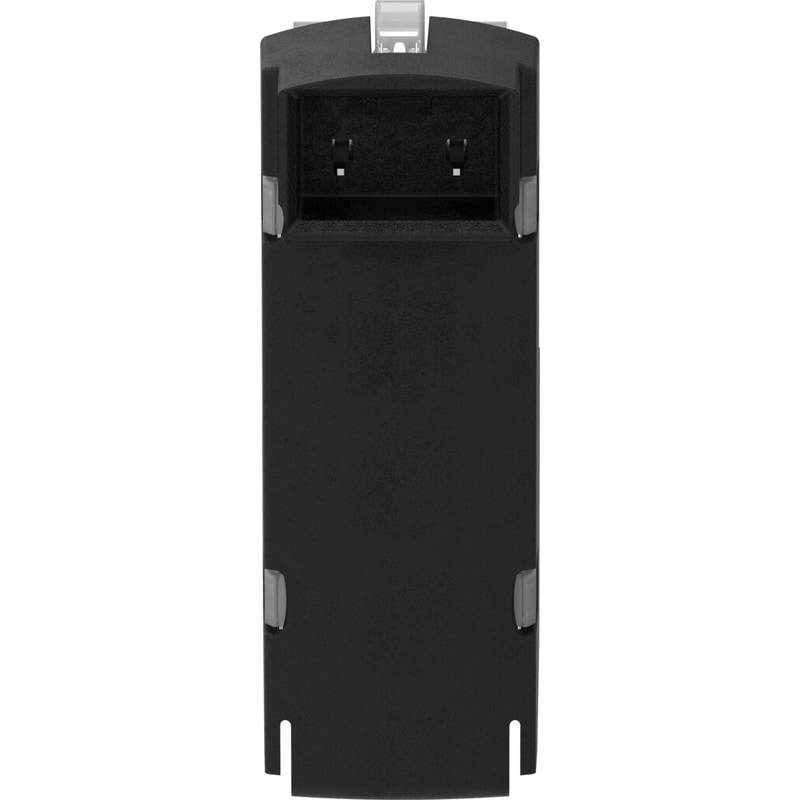

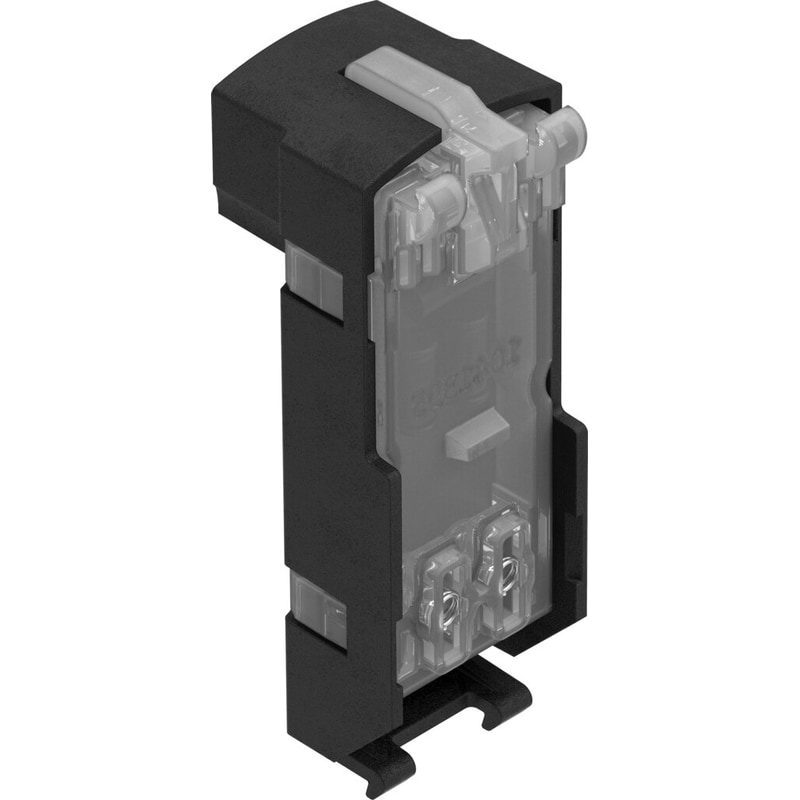

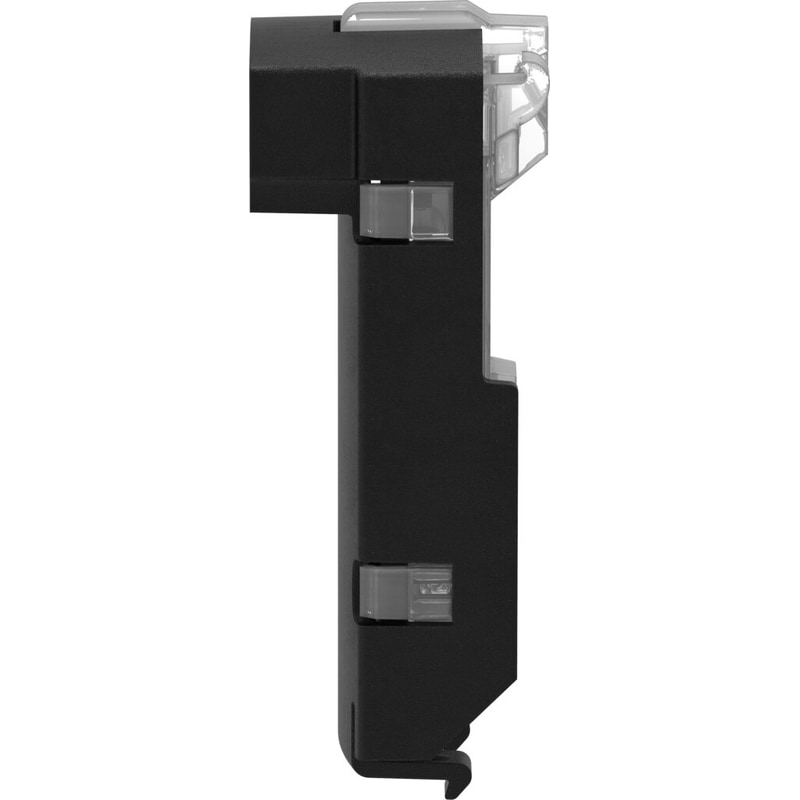

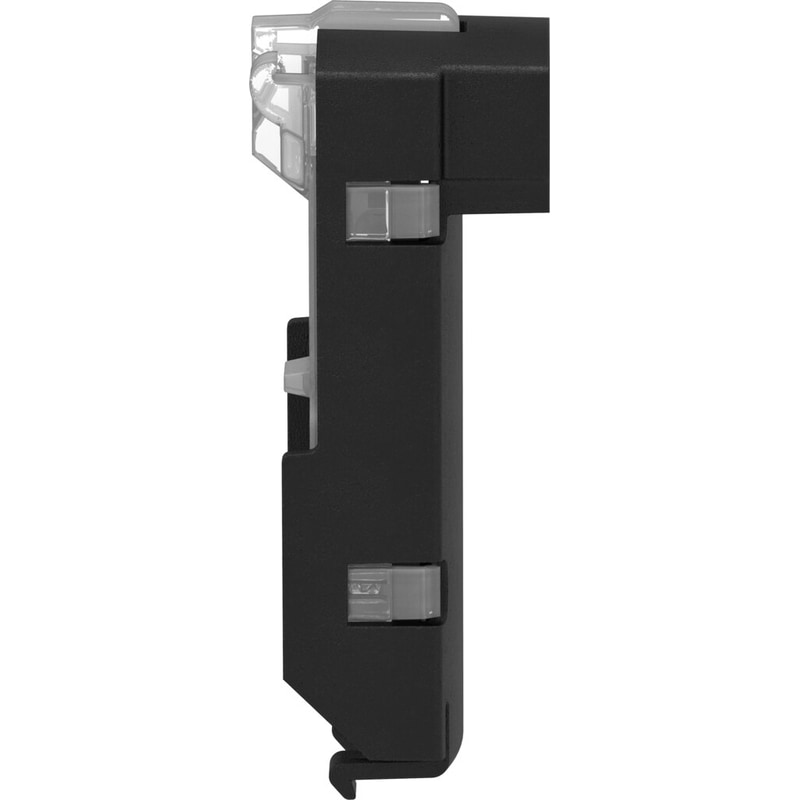

electrical connection box VAVE-L1-1H2-LR Assembly position=Any, Polarity protected=for operating voltage, Additional functions=(* Spark arresting, * Reduction of holding current), Signal status display=LED, Nominal operating voltage DC=24 V
| Assembly position | Any |
|---|---|
| Polarity protected | for operating voltage |
| Additional functions | Spark arrestingReduction of holding current |
| Signal status display | LED |
| Nominal operating voltage DCÂ | 24 V |
| Surge strength | 0.8 kV |
| Degree of contamination | 3 |
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
| Protection class | IP40 |
| Ambient temperature | ‘-5 … 60 °C |
| Authorisation | RCM Mark |
| Product weight | 1.5 g |
