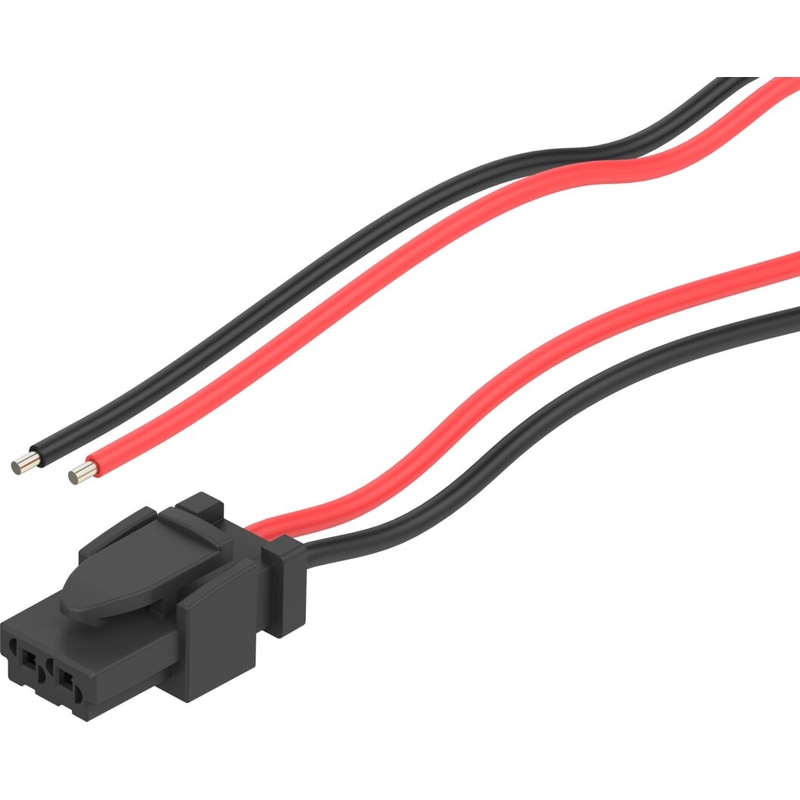

| Type code | NEBV |
|---|---|
| Cable designation | Without label holder |
| Product weight | 4 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram S |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Snap-locking |
| Electrical connection for input 1, connection pattern | 995631 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | 2x single wires |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 0 V … 60 V |
| Current rating at 40°C | 0.125 |
| Cable length | 0.5 m |
| Cable characteristic | Standard |
| Cable diameter | 1.3 mm |
| Cable design | 2 x 0.14 mm² |
| Wire ends | Cut off bluntly |
| Degree of protection | IP40 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -5 °C … 60 °C |
| Note on materials | RoHS-compliant |
| Housing material | POM |
| Housing colour | Black |
| Material of pin contacts | Tin-platedCopper alloy |
| Insulating sheath material | PVC |
| Mounting position | Any |
| Weight | 0.011828 lbs |
|---|---|
| Dimensions | 1.968504 × 1.968504 × 0.393701 in |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connector system | Connection pattern S |
| Electrical connection 2, connection type | 2x single wires |
| Electrical connection 2, connector system | Open end |
| Cable length | 0.5 m |
