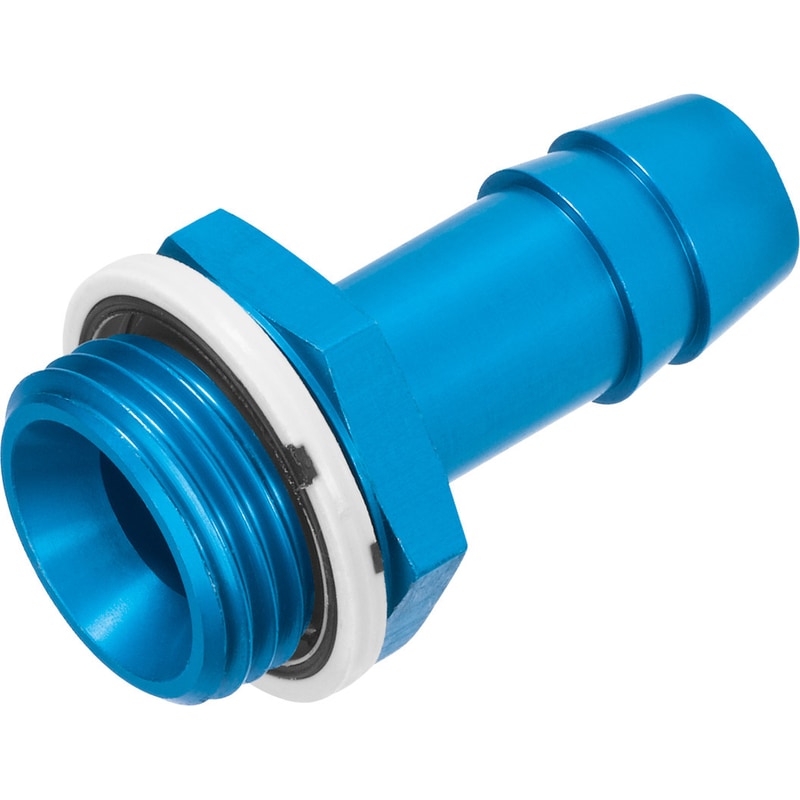

barbed hose fitting N-3/4-P-19-NPT Nominal size=16,5 mm, Operating pressure complete temperature range=-0,95 – 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=2 – Moderate corrosion stress
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 16.5 mm |
| Operating pressure complete temperature range | ‘-0.95 … 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| connection 1Â | NPT3/4-14 |
| connection 2Â | For tubing internal diameter 19Â mm |
| Materials note | Conforms to RoHS |
