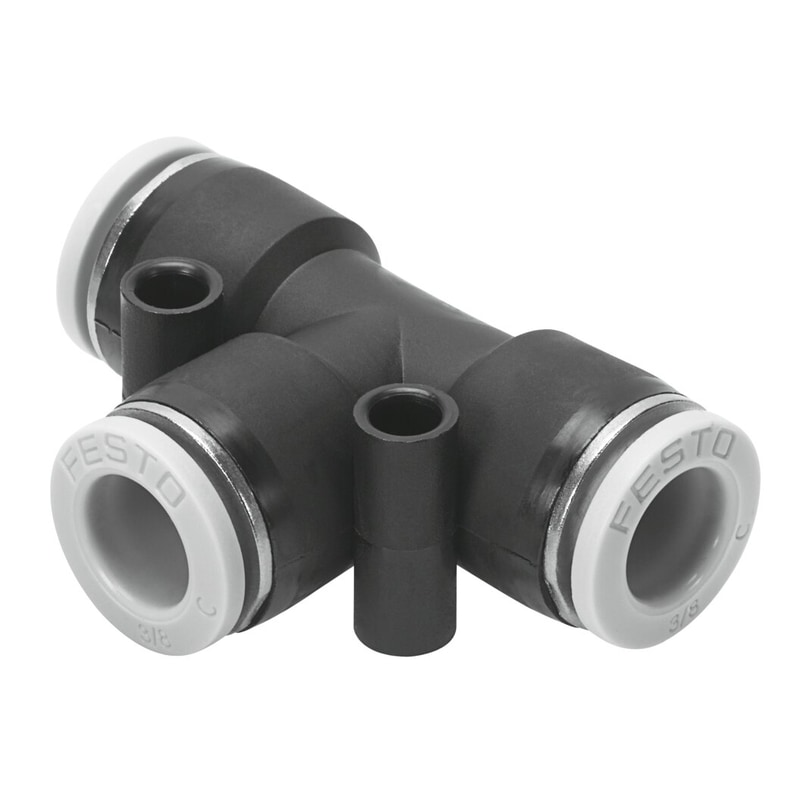

push-in T-connector QBT-3/8T-U Size=Standard, Nominal size=0,315 “, Assembly position=Any, Design structure=Push/pull principle, Operating pressure complete temperature range=-13,8 – 145 Psi
| Fitting Type | Union Tee |
|---|---|
| Size | Standard |
| Nominal size | 0.315 “ |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-13.8 … 145 Psi |
| Temperature dependent operating pressure | ‘-13.8 … 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | 32 … 140 °F |
| Product weight | 0.691 oz |
| connection 1Â | 3/8″ outside diameter, for tubing |
| connection 2Â | 3/8″ outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High alloy steel, non-corrosive |
