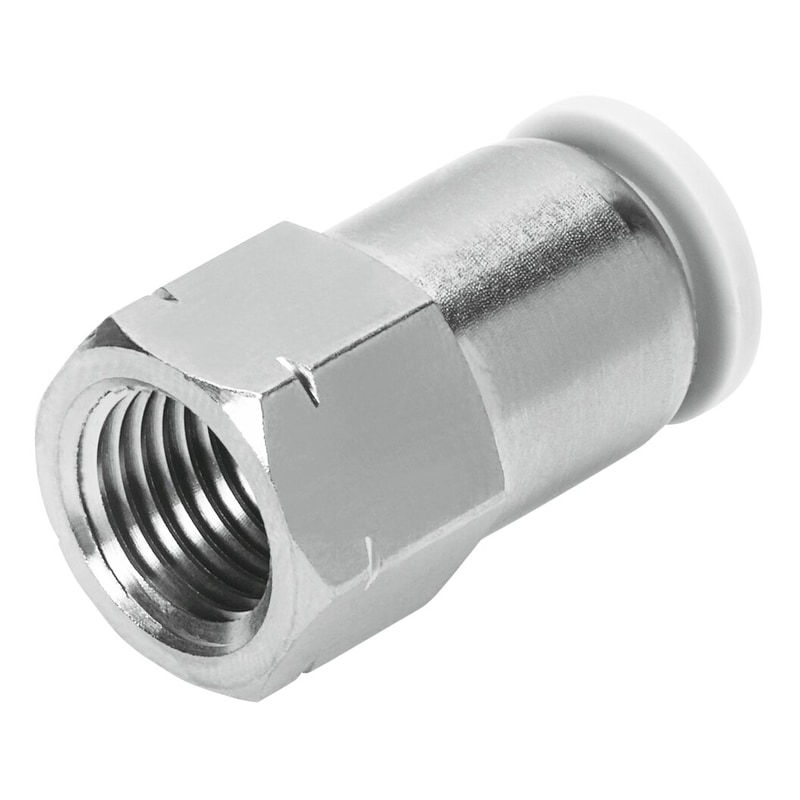

push-in fitting QBF-3/8-1/2-U female thread with external hexagon. Size=Standard, Nominal size=0,394 “, Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | Female Straight |
|---|---|
| Size | Standard |
| Nominal size | 0.394 “ |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-13.8 … 145 Psi |
| Temperature dependent operating pressure | ‘-13.8 … 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | 32 … 140 °F |
| Max. tightening torque | 16.226 ft-lbf |
| Product weight | 1.591 oz |
| connection 1Â | Female thread NPT3/8-18 |
| connection 2Â | 1/2″ outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | Nickel-plated brass |
| Material of threaded seal | PTFE |
