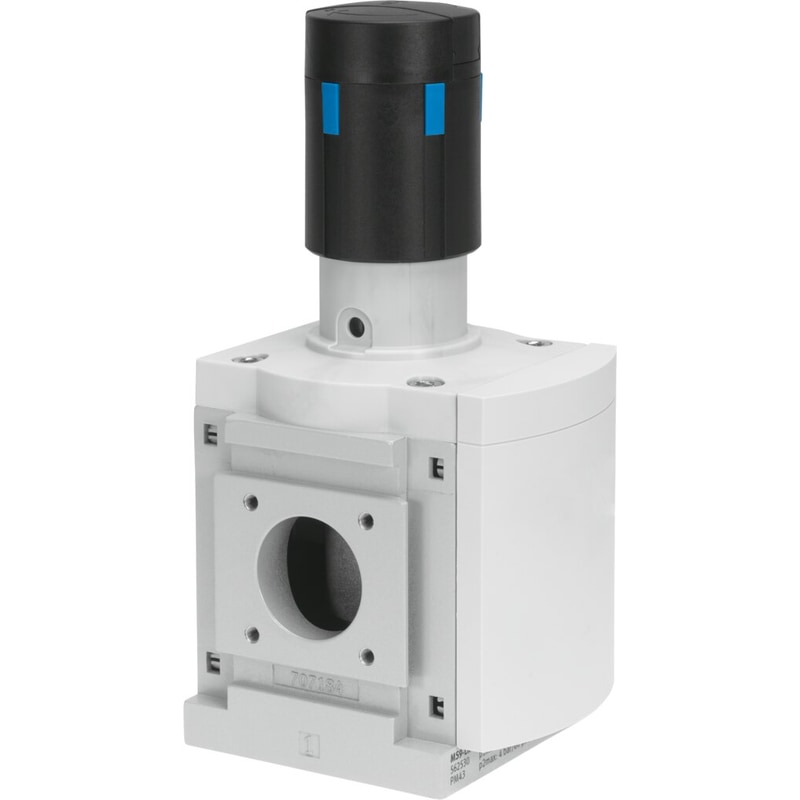

MS9-LR-G-D5-AG-BAR-AS

$346.80

SKU: 564134
UNSPSC: 27131603
GTIN: 4052568211578

SKU: 564134 Category: Tag: Brand:

pressure regulator MS9-LR-G-D5-AG-BAR-AS 4 bar maximum output pressure, with pressure gauge, lockable regulator head, direction of flow: from left to right. Series=MS, Actuator lock=with accessories, lockable, Assembly position=Any, Design structure=Pilot actuated diaphragm regulator, Controller function=(* Output pressure constant, * with initial pressure compensation, * with secondary exhaust, * with return flow)

Series MS
Actuator lock with accessories, lockable
Assembly position Any
Design structure Pilot actuated diaphragm regulator
Controller function Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow
Pressure gauge with pressure gauge
Operating pressure 1 … 20 bar
Pressure regulation range 0.5 … 4 bar
Max. pressure hysteresis 0.4 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 – Moderate corrosion stress
Storage temperature ‘-10 … 60 °C
Series

MS

Actuator lock

with accessories, lockable

Assembly position

Any

Design structure

Pilot actuated diaphragm regulator

Controller function

Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow

Pressure gauge

with pressure gauge

Operating pressure

1 … 20 bar

Pressure regulation range

0.5 … 4 bar

Max. pressure hysteresis

0.4 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

2 – Moderate corrosion stress

Storage temperature

-10 … 60 °C
