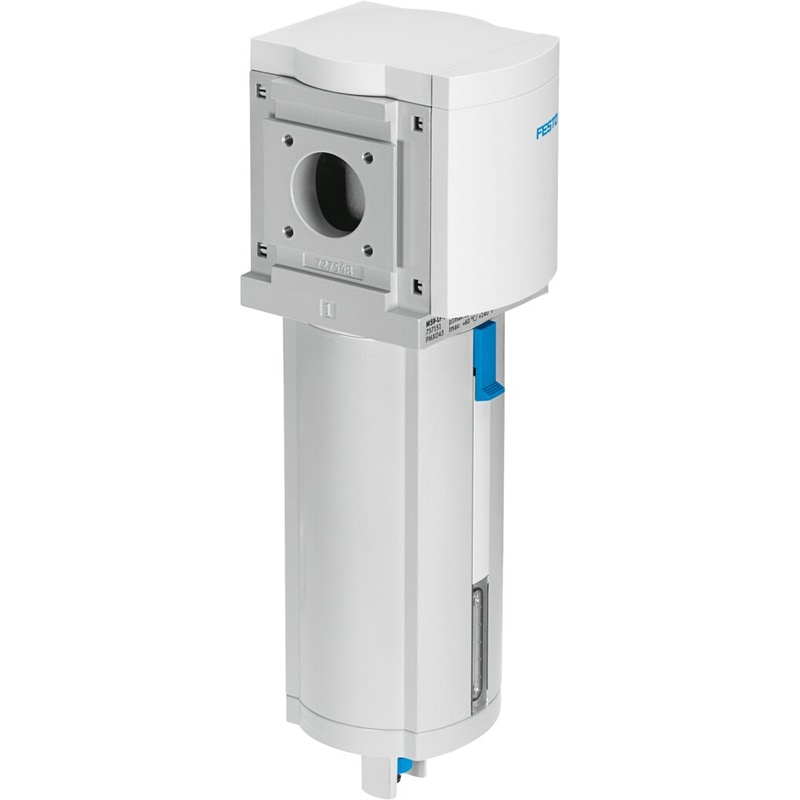

filter MS9-LF-G-CUV 5 µm filter, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Size=9, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=fully automatic
| Size | 9 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | fully automatic |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 220 ml |
| Operating pressure | 2 … 12 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:9:-] |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Storage temperature | 5 … 60 °C |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [6:8:4] |
| Medium temperature | 5 … 60 °C |
