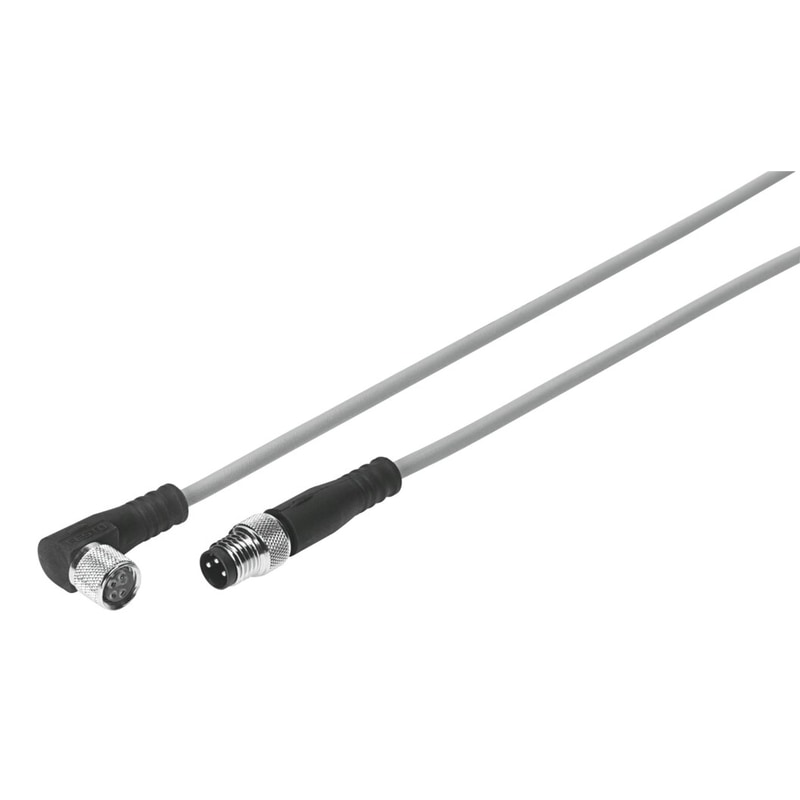

connecting cable NEBV-M8W4L-E-2.5-M8G3 Conforms to standard=(* EN 61076-2-101, * ISO 20401), Operating status display=Yellow LED, Product weight=50 g, Electrical connection=(* angled socket / straight plug, * M8x1 / M8x1, * 4-pin / 3-pin), Operating voltage range DC=20,4 – 26,4 V
| Conforms to standard | EN 61076-2-101ISO 20401 |
|---|---|
| Operating status display | Yellow LED |
| Product weight | 50 g |
| Electrical connection | angled socket / straight plugM8x1 / M8x14-pin / 3-pin |
| Operating voltage range DCÂ | 20.4 … 26.4 V |
| Acceptable current load at 40°C | 0.125 |
| Cable length | 2.5 m |
| Cable attribute | Suitable for chain link trunking |
| Min. cable bending radius | 35 mm |
| Cable diameter | 3.3 mm |
| Cable structure | 2×0,25 |
| Protection class | IP65IP67 |
| Ambient temperature | ‘-10 … 50 °C |
