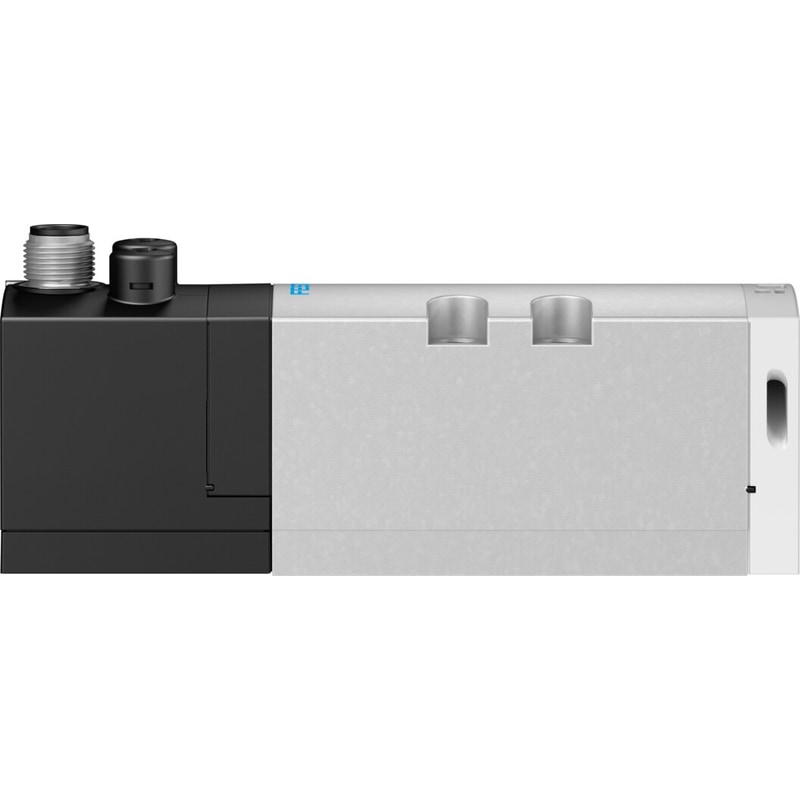

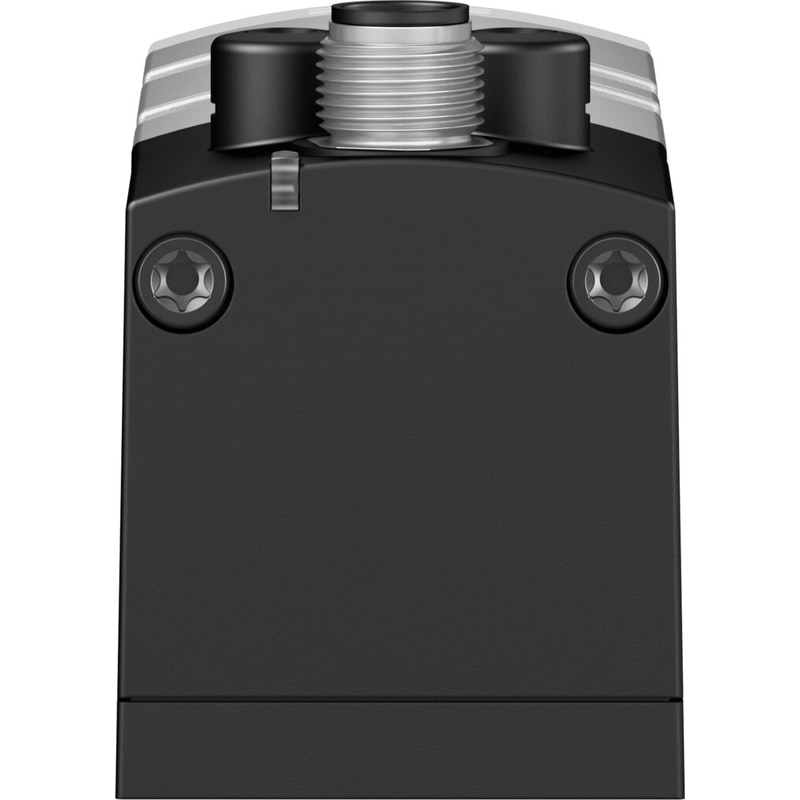

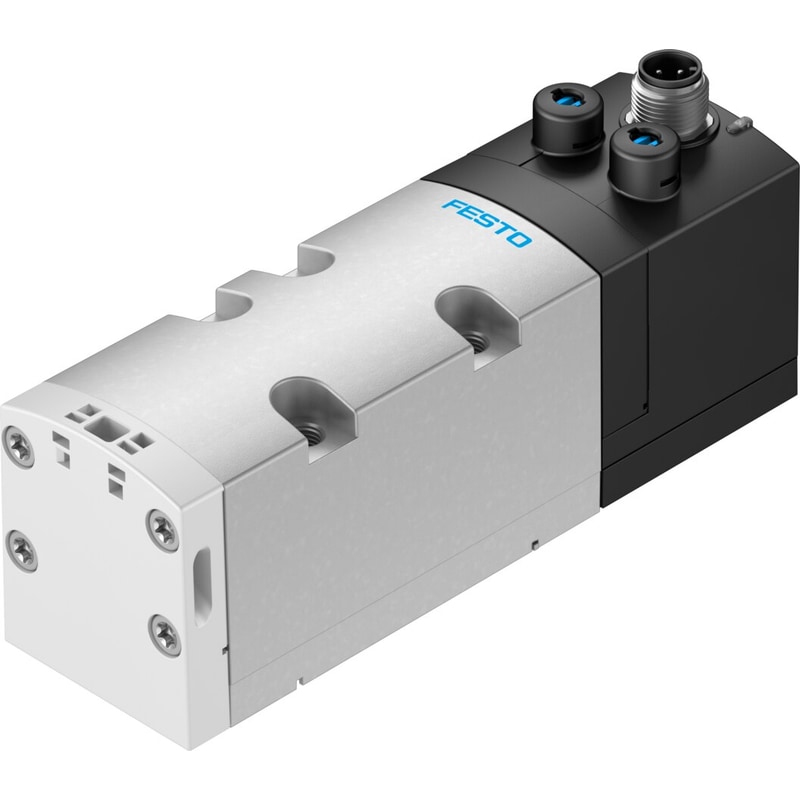

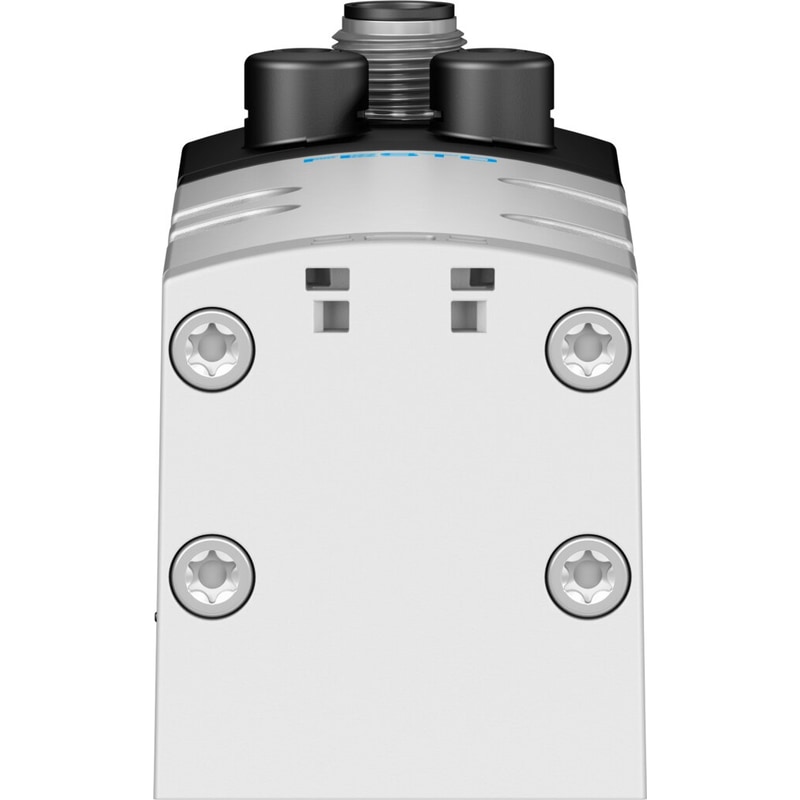

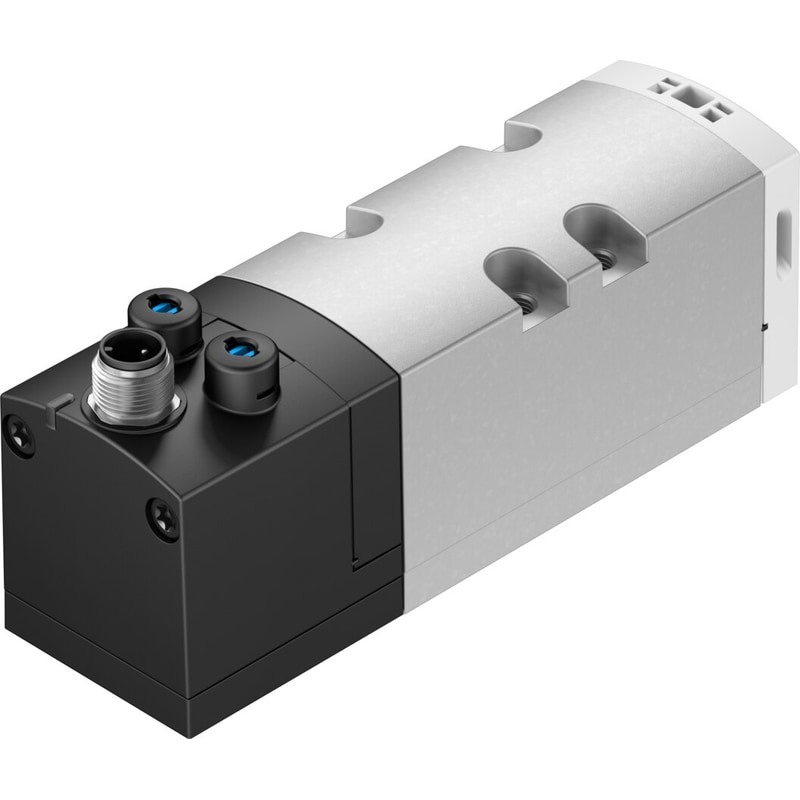

solenoid valve VSVA-B-T32C-AZD-D1-1R5L Valve function=2×3/2 closed, monostable, Type of actuation=electrical, Width=42 mm, Standard nominal flow rate=1100 l/min, Operating pressure=3 – 10 bar

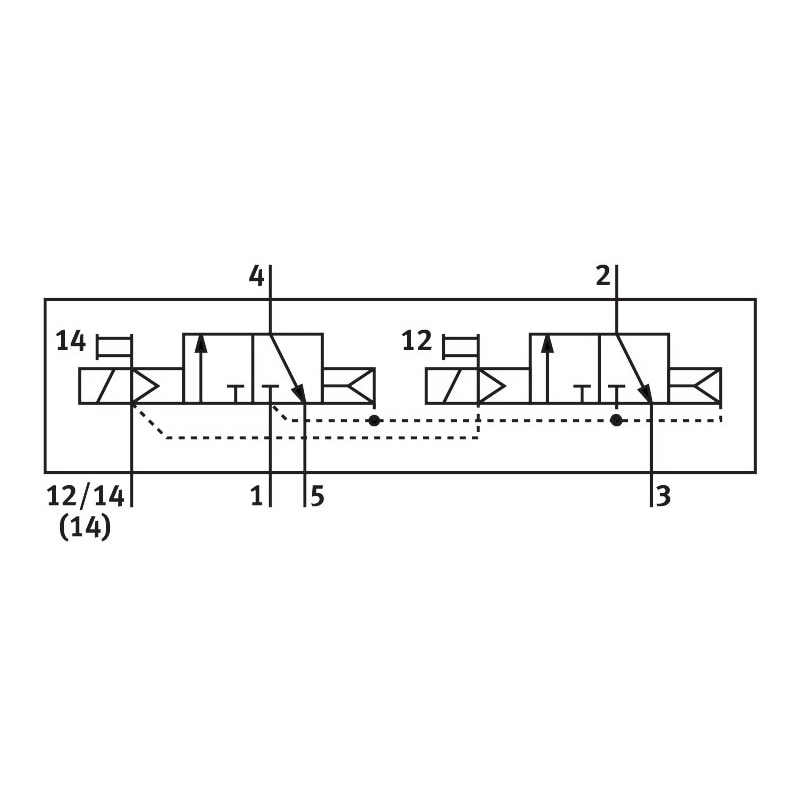

| Valve function | 2×3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1,100 l/min |
| Operating pressure | 3 … 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65NEMA 4 |
| Authorisation | c CSA us (OL)c UL us – Recognized (OL) |
| Nominal size | 11 mm |
| Grid dimension | 43 mm |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
