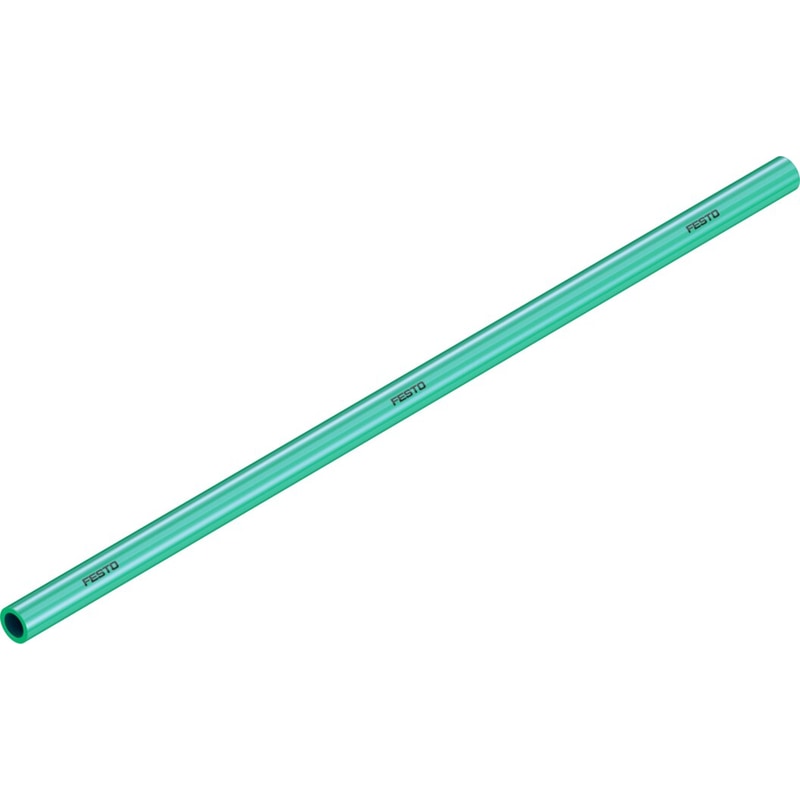

PUN-H-8X1,25-GN (50 Meters)

$99.50

50 Meters
SKU: 558294
UNSPSC: 40183001
GTIN: 4052568054410

Festo

plastic tubing PUN-H-8X1,25-GN Approved for use in food processing (hydrolysis resistant) Outside diameter=8 mm, Bending radius relevant for flow rate=37 mm, Inside diameter=5,7 mm, Min. bending radius=21 mm, Temperature dependent operating pressure=-0,95 – 10 bar

Outside diameter 8 mm
Bending radius relevant for flow rate 37 mm
Inside diameter 5.7 mm
Min. bending radius 21 mm
Tubing characteristics Suitable for energy chains in applications with high cycle rates
Tubing test conditions Suitable for energy chains: > 5 million cycles to FN 942021
Temperature dependent operating pressure ‘-0.95 … 10 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com
Food-safe See Supplementary material information
Ambient temperature ‘-35 … 60 °C
Authorisation TÜV
Product weight according to length 0.0287 kg/m
Pneumatic connection For push-in connector outside diameter 8 mmfor barbed connector internal diameter 6 mm with nut
Outside diameter

8 mm

Bending radius relevant for flow rate

37 mm

Inside diameter

5.7 mm

Min. bending radius

21 mm

Tubing characteristics

Suitable for energy chains in applications with high cycle rates

Tubing test conditions

Suitable for energy chains: > 5 million cycles to FN 942021

Temperature dependent operating pressure

-0.95 … 10 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at http://www.festo.com

Food-safe

See Supplementary material information

Ambient temperature

-35 … 60 °C

Authorisation

TÜV

Product weight according to length

0.0287 kg/m

Pneumatic connection

For push-in connector outside diameter 8 mmfor barbed connector internal diameter 6 mm with nut
