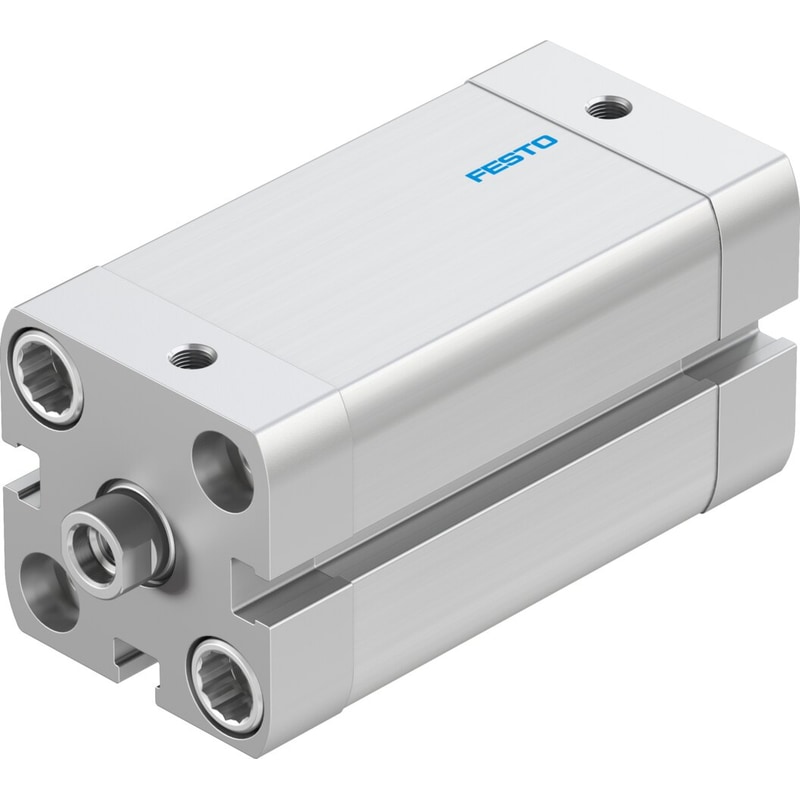

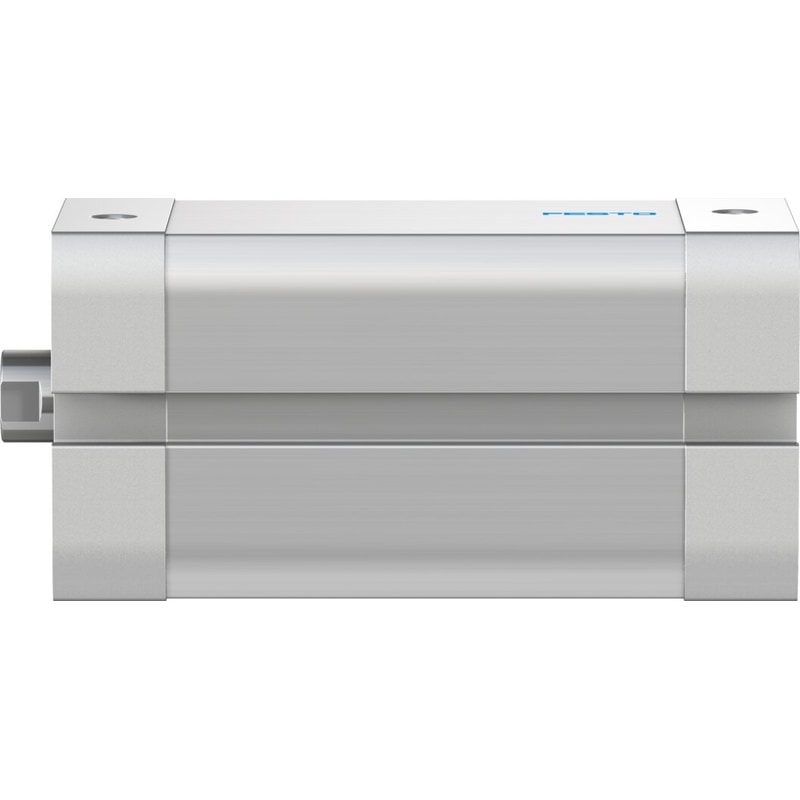

compact cylinder ADN-1″-11/2″-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke=1,5 “, Piston diameter=1”, Piston rod thread=UNF10-32, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 1.5 “ |
|---|---|
| Piston diameter | 1″ |
| Piston rod thread | UNF10-32 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Female thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 … 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
