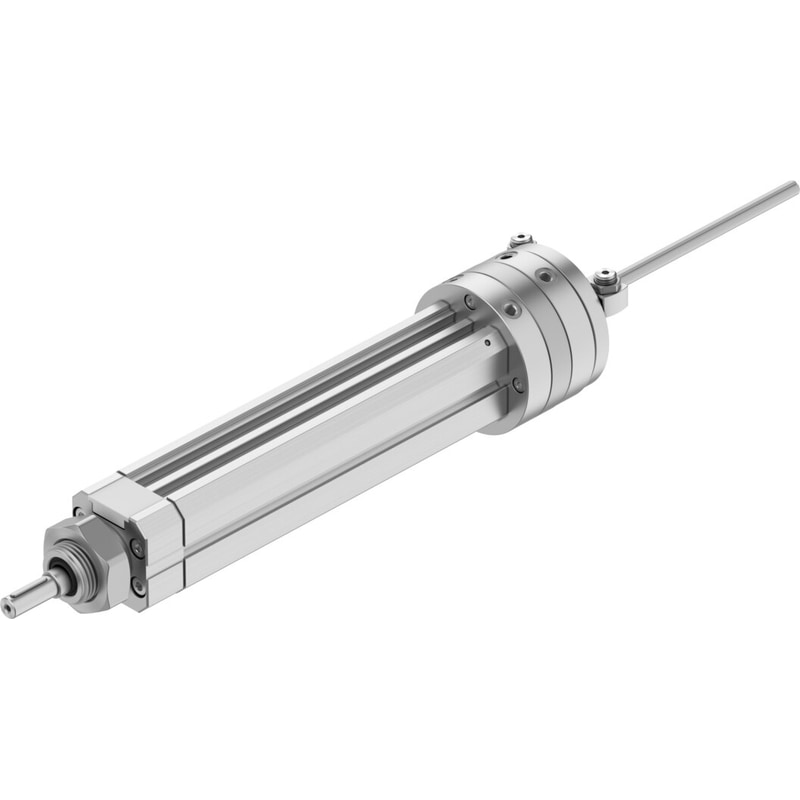

swivel/linear unit DSL-16-100-270-P-A-S2-KF-B For proximity sensing. Rotary and linear movement can be actuated independently of one another. Rotary movement of 0° – 270° infinitely adjustable. Rotation angle adjustment range=0 – 270 deg, Stroke=100 mm, Piston diameter=16 mm, Swivel angle=0 – 272 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
| Rotation angle adjustment range | 0 … 270 deg |
|---|---|
| Stroke | 100 mm |
| Piston diameter | 16 mm |
| Swivel angle | 0 … 272 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Fine adjustment | ‘-6 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Variants | Through piston rod |
| Protection against torque/guide | with ball-bearing guide |
| Operating pressure | 2.5 … 8 bar |
