DSL-16-25-270-CC-A-S2-B

$1,414.38

SKU: 556391
UNSPSC: 31251504
GTIN: 4052568200268

SKU: 556391 Category: Tag:
Festo

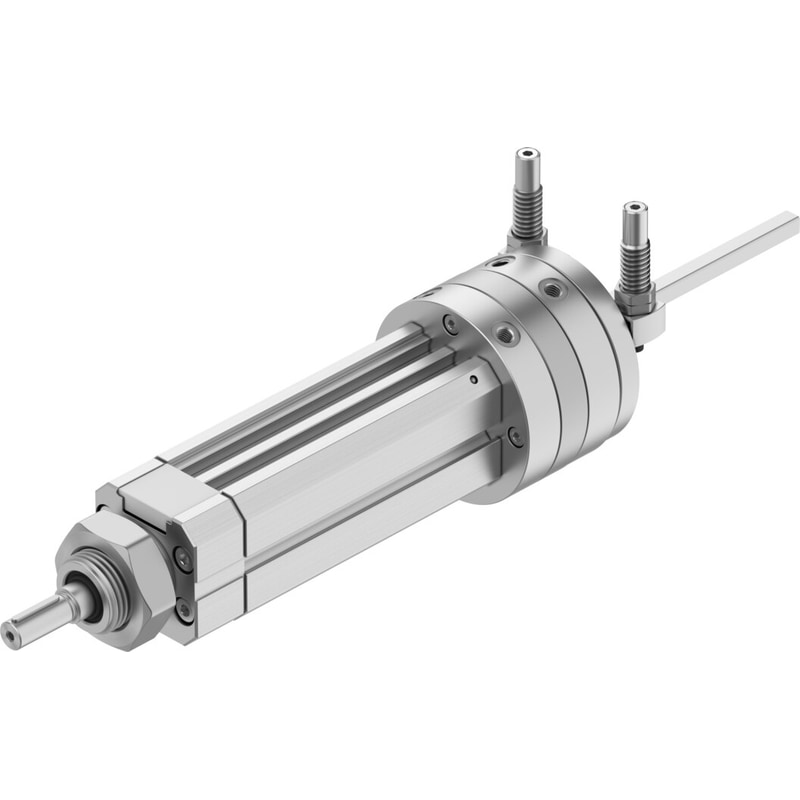

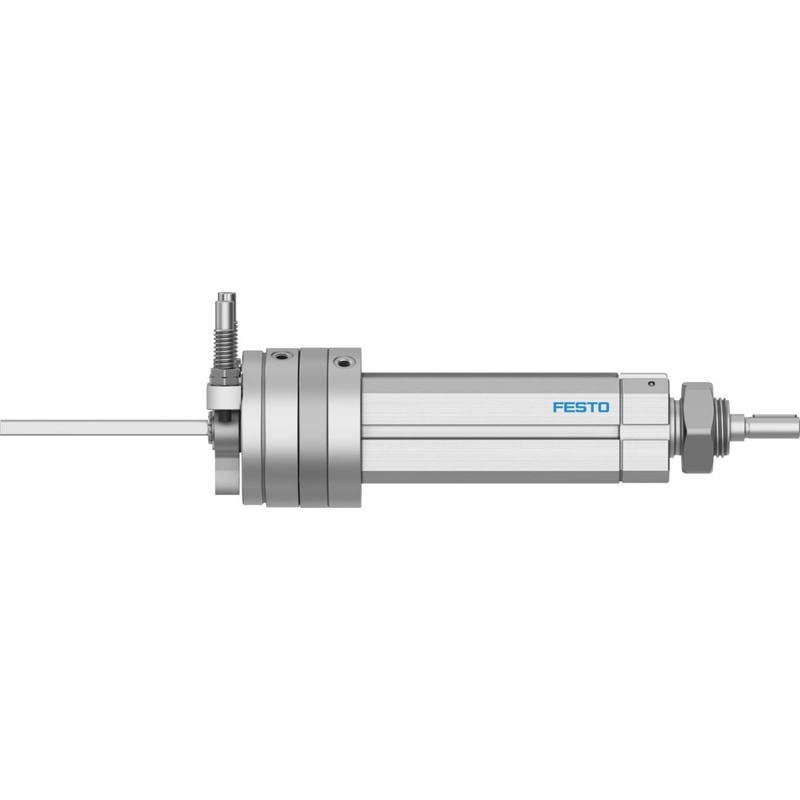

swivel/linear unit DSL-16-25-270-CC-A-S2-B For proximity sensing. Rotary and linear movement can be actuated independently of one another. Rotary movement of 0° – 270° infinitely adjustable. Cushioning angle=15 deg, Rotation angle adjustment range=0 – 246 deg, Stroke=25 mm, Piston diameter=16 mm, Swivel angle=0 – 246 deg

Cushioning angle  15 deg
Rotation angle adjustment range  0 … 246 deg
Stroke  25 mm
Piston diameter  16 mm
Swivel angle  0 … 246 deg
Cushioning  CC: Shock absorber at both endsP: Flexible cushioning rings/plates at both ends
Assembly position  Any
Fine adjustment  ‘-3 deg
Mode of operation  double-acting
Design structure  Rotary vane
Position detection  For proximity sensor
Variants  Through piston rod
Protection against torque/guide  with plain-bearing guide
Cushioning angle

15 deg

Rotation angle adjustment range

0 … 246 deg

Stroke

25 mm

Piston diameter

16 mm

Swivel angle

0 … 246 deg

Cushioning

CC: Shock absorber at both endsP: Flexible cushioning rings/plates at both ends

Assembly position

Any

Fine adjustment

-3 deg

Mode of operation

double-acting

Design structure

Rotary vane

Position detection

For proximity sensor

Variants

Through piston rod

Protection against torque/guide

with plain-bearing guide
