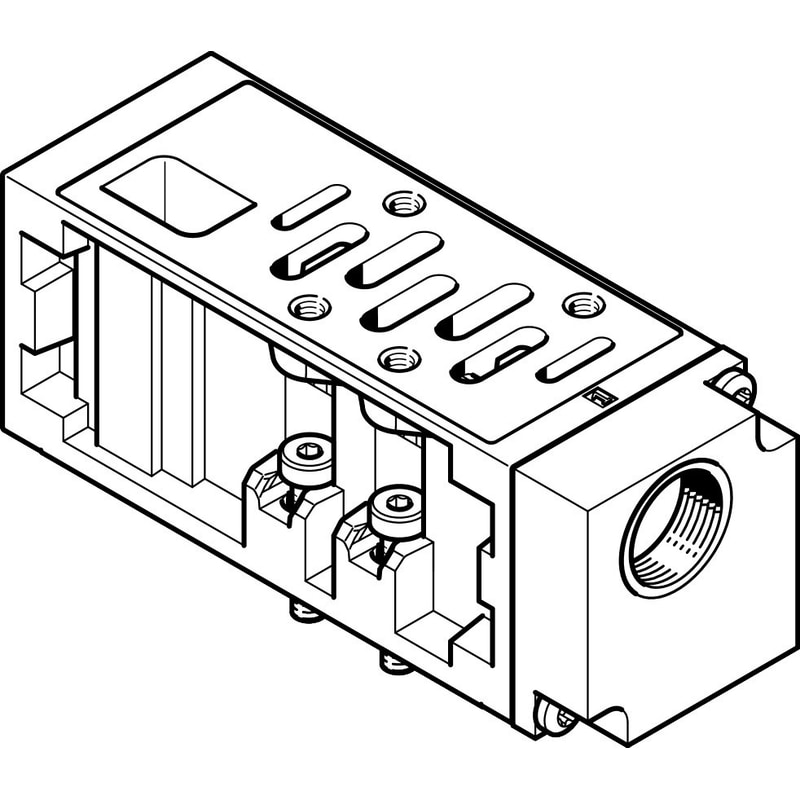

vertical pressure supply plate VABF-S1-2-P1A3-G12 Width=54 mm, Based on the standard=ISO 5599-1, Assembly position=Any, Pneumatic vertical stacking=Alternative pressure supply for 1, Operating pressure=-0,9 – 10 bar
| Width | 54 mm |
|---|---|
| Based on the standard | ISO 5599-1 |
| Assembly position | Any |
| Pneumatic vertical stacking | Alternative pressure supply for 1 |
| Operating pressure | ‘-0.9 … 10 bar |
| Inlet pressure 1Â | 0.5 … 10 bar |
| Standard nominal flow rate | 2,800 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | ‘-5 … 50 °C |
| Product weight | 605 g |
