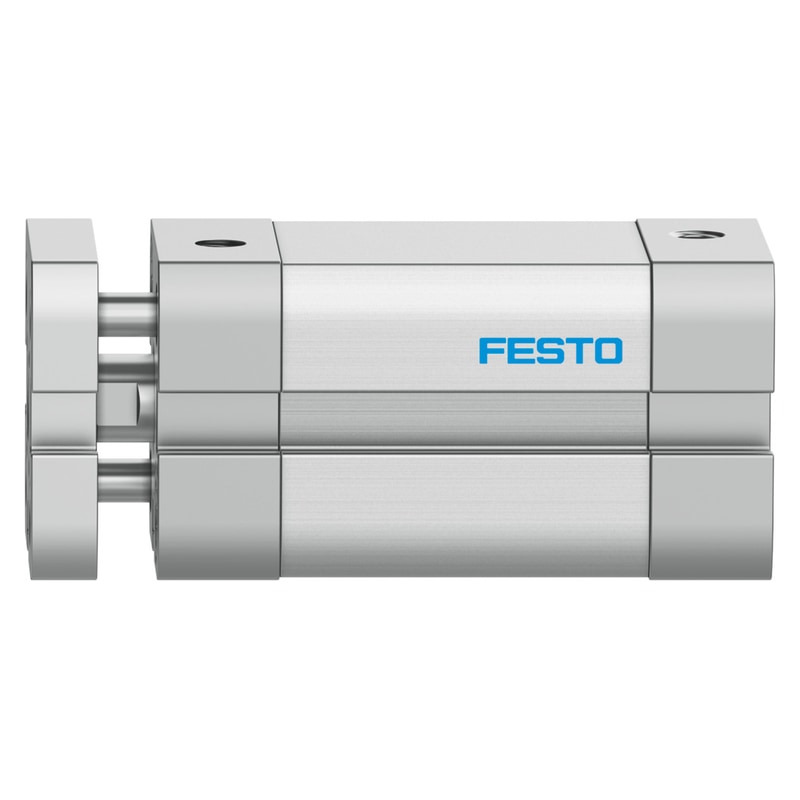

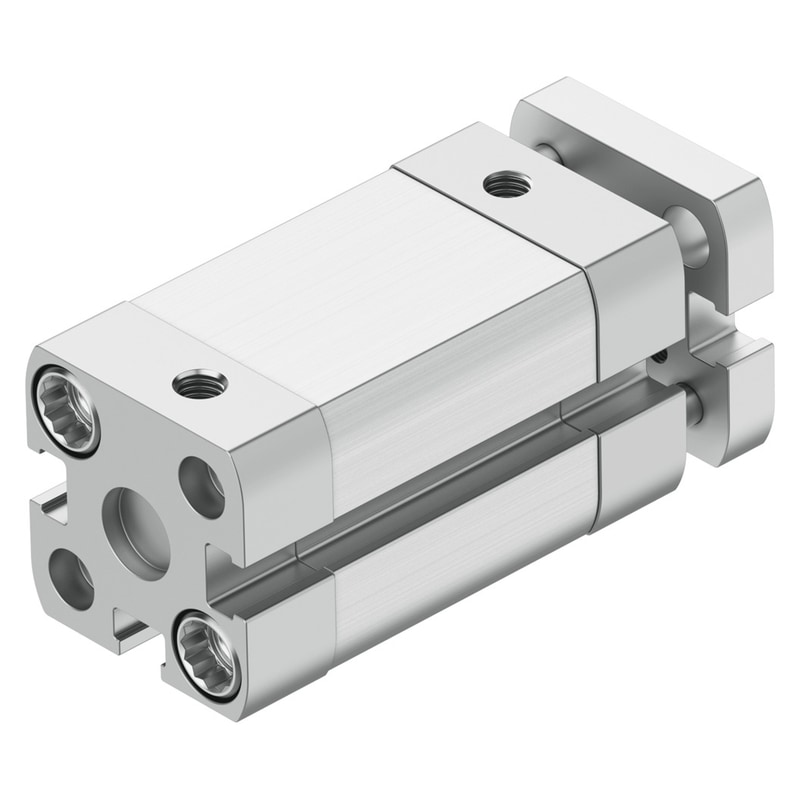

compact cylinder ADNGF-16-20-P-A According to ISO 21287, with plain-bearing guide, piston rod secured against rotation by means of guide rods and yoke plate. Stroke=20 mm, Piston diameter=16 mm, Based on the standard=ISO 21287, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 20 mm |
|---|---|
| Piston diameter | 16 mm |
| Based on the standard | ISO 21287 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Protection against torque/guide | Guide rod with yoke |
| Operating pressure | 1.5 … 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
