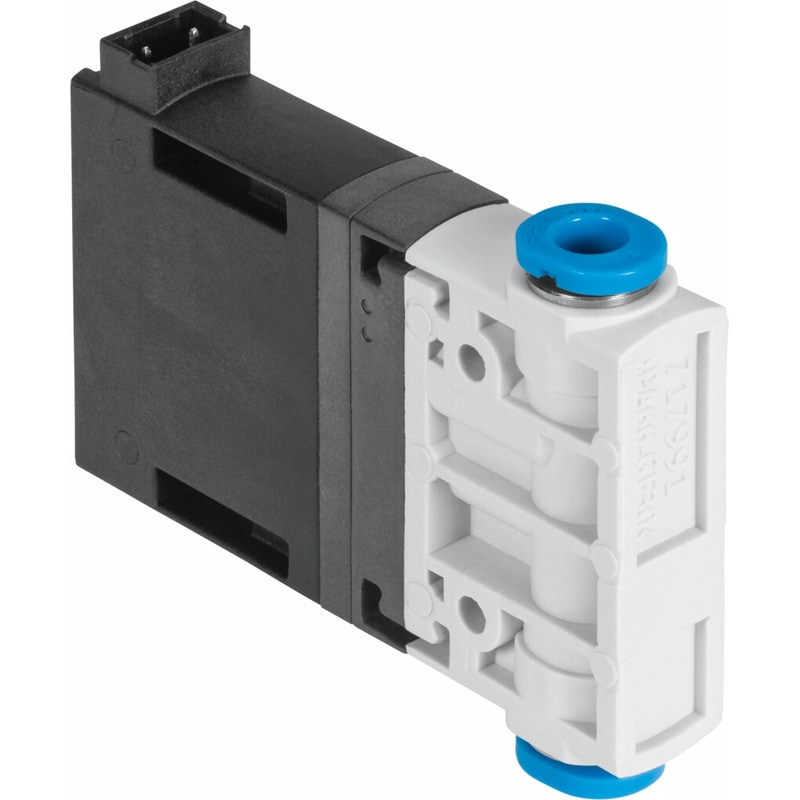

solenoid valve MHJ9-QS-4-MF Valve function=2/2 closed, monostable, Type of actuation=electrical, Width=9 mm, Standard nominal flow rate=100 l/min, Operating pressure=0,5 – 6 bar
| Valve function | 2/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 9 mm |
| Standard nominal flow rate | 100 l/min |
| Operating pressure | 0.5 … 6 bar |
| Design structure | Poppet valve without spring return |
| Type of reset | Air spring |
| Protection class | IP40 |
| Grid dimension | 9.5 mm |
| Note on operation | Do not operate without flowFor block mounting with flow, max. ambient temperature 45°C. |
| Sealing principle | Hard |
| Assembly position | Any |
| Manual override | None |
