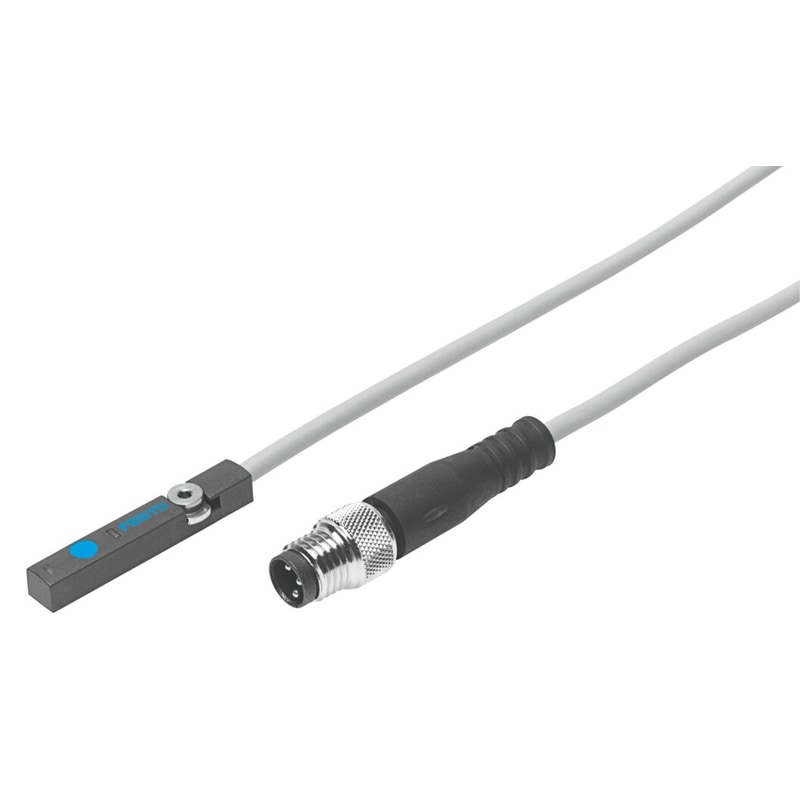

proximity sensor SIES-8M-PS-24V-K-10-M8D inductive, cable with plug, can be flush-mounted, N/O function Design=for T-slot, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us – Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS)
| Design | for T-slot |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us – Listed (OL) |
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Nominal switching distance | 1.5 mm |
| Reduction factors | Aluminium = 0.62Stainless steel V2A = 0.95Copper = 0.6Brass = 0.72Steel, St 37 = 1.0 |
| Ambient temperature | ‘-25 … 70 °C |
| Repetition accuracy for constant conditions | <= 0.05 mm, approach from the side |
| Switch output | PNP |
| Switching element function | Normally open contact |
| Max. switching frequency | 4,500 Hz |
| Max. output current | 150 mA |
