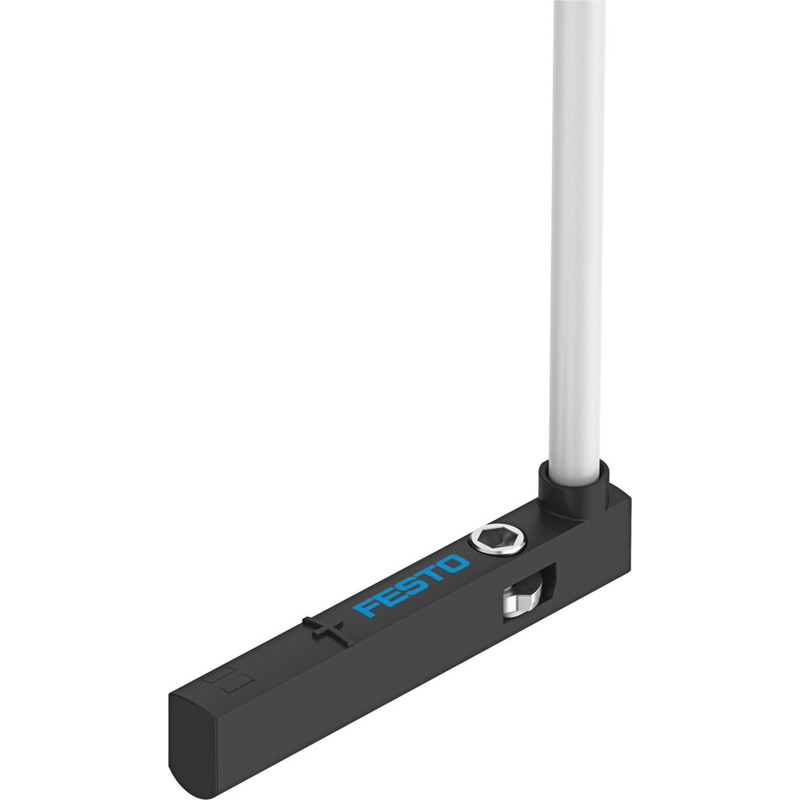

proximity sensor SME-10M-DS-24V-E-2,5-Q-OE Suitable for C-slot. Design=for round slot, Conforms to standard=EN 60947-5-2, Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant
| Design | for round slot |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | C-Tick |
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| Special characteristics | Oil resistant |
| Materials note | Free of copper and PTFEConforms to RoHSHalogen-free |
| Measured variable | Position |
| Measuring principle | Reed magnetic |
| Ambient temperature | ‘-40 … 70 °C |
| Switch output | with contact, bipolar |
| Switching element function | Normally open contact |
| Switching output repetition accuracy in ± mm | 0.1 mm |
| Switch-on time | <= 1.2 ms |
