DWA-50-150-Y-AB

$214.39

SKU: 549706 Category: Tag: Brand:

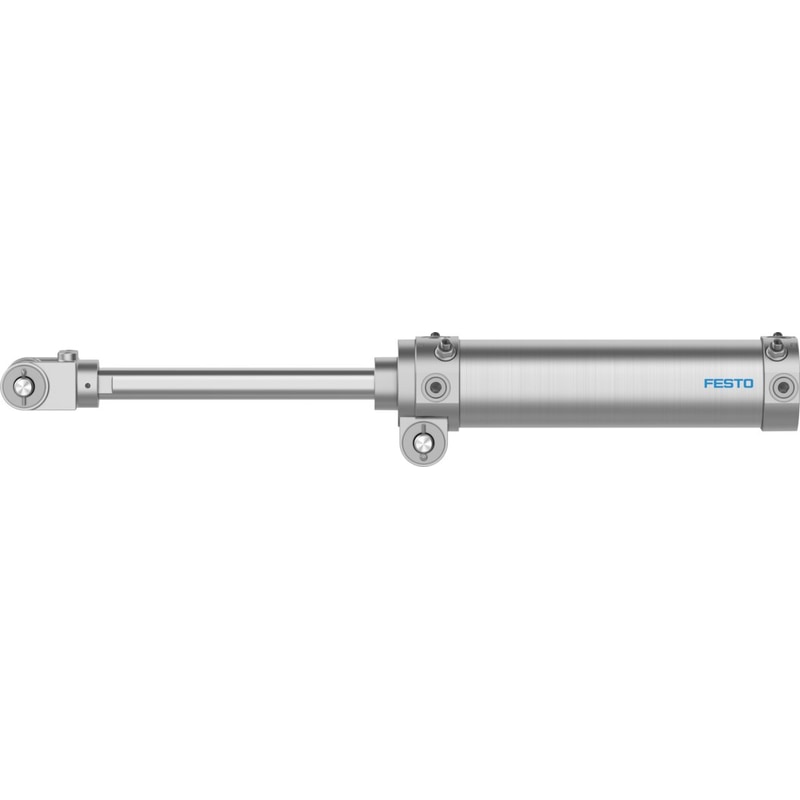

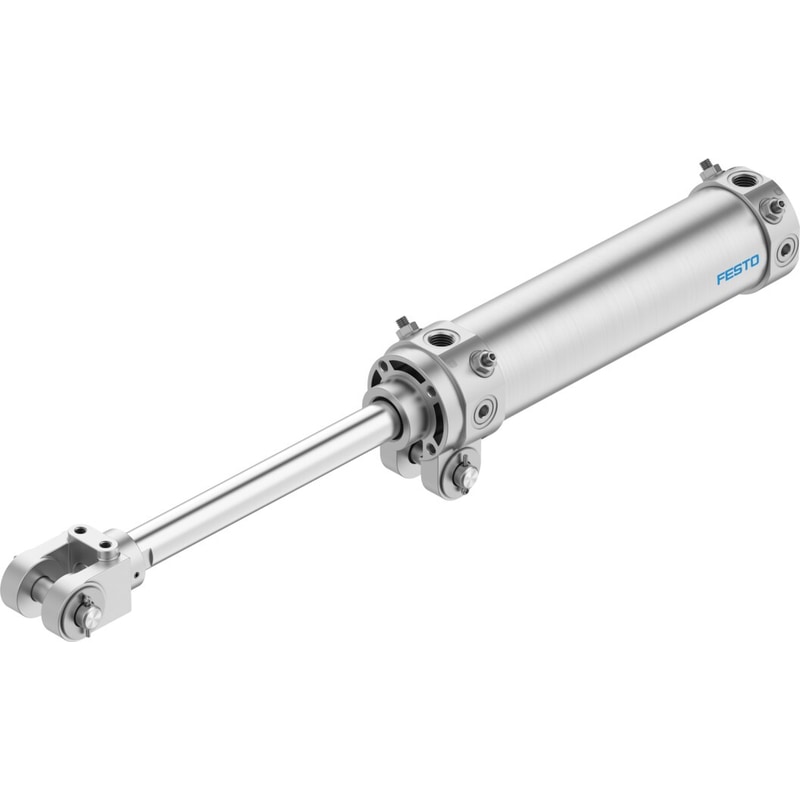

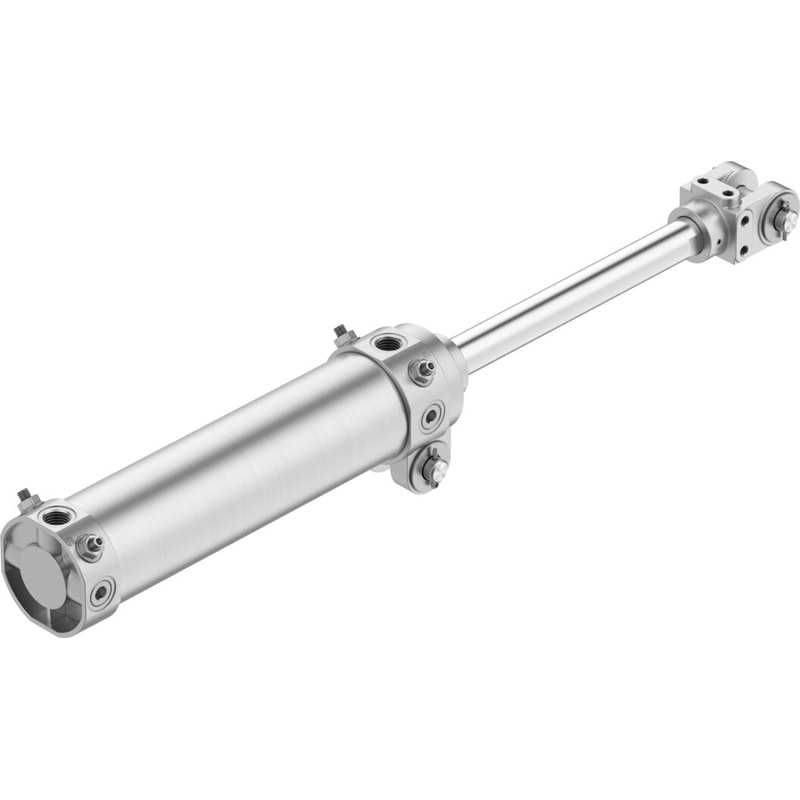

hinge cylinder
DWA-50-150-Y-AB
Part number: 549706

Stroke 150 mm
Piston diameter 50 mm
Piston rod thread M16x1,5
Distance of rod clevis to swivel mounting 16 mm
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Design structure PistonPiston rod with rod clevisSwivel mounting on bearing capCylinder barrel
Speed regulation Integrated flow control valves on both sides
Position detection For proximity sensor
Piston-rod end Male thread with rod clevis
Operating pressure 1 … 10 bar
Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Stroke

150 mm

Piston diameter

50 mm

Piston rod thread

M16x1,5

Distance of rod clevis to swivel mounting

16 mm

Cushioning

PPV: Pneumatic cushioning adjustable at both ends

Assembly position

Any

Design structure

PistonPiston rod with rod clevisSwivel mounting on bearing capCylinder barrel

Speed regulation

Integrated flow control valves on both sides

Position detection

For proximity sensor

Piston-rod end

Male thread with rod clevis

Operating pressure

1 … 10 bar

Mode of operation

double-acting

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]
