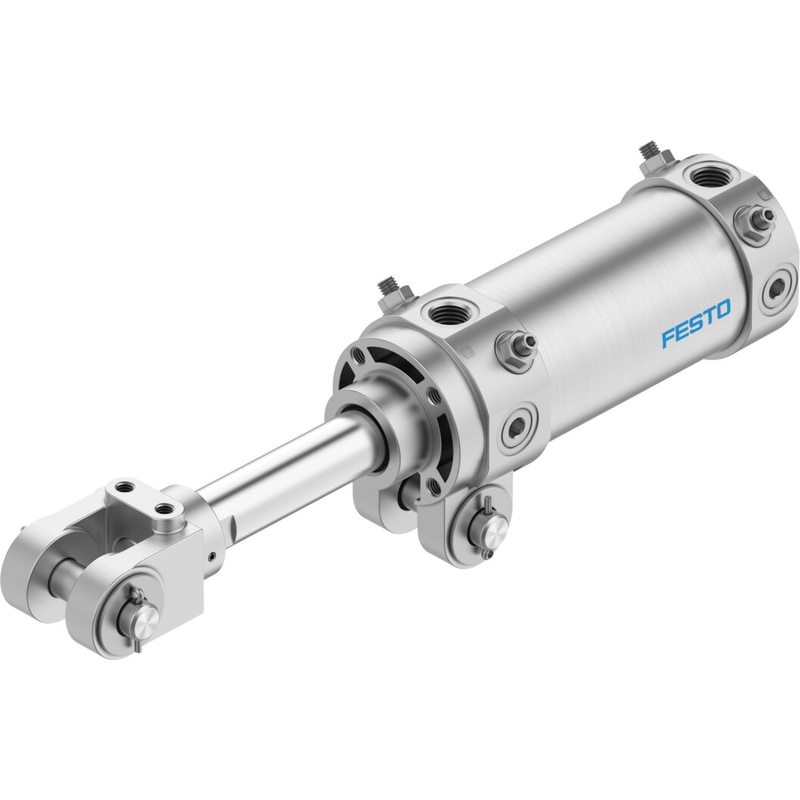

DWA-50-50-Y

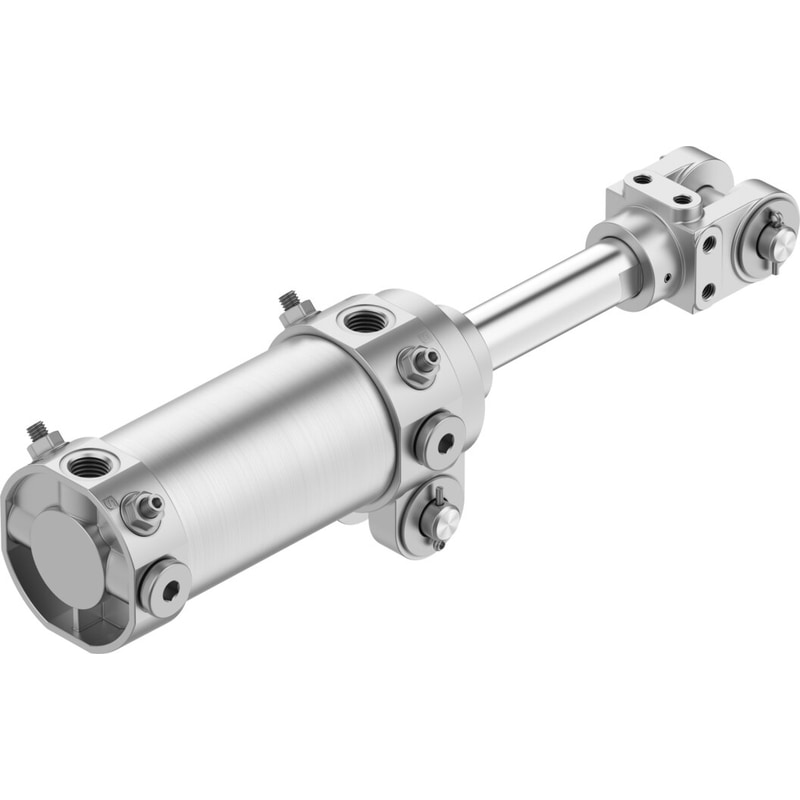

DWA-50-50-Y - Image 2

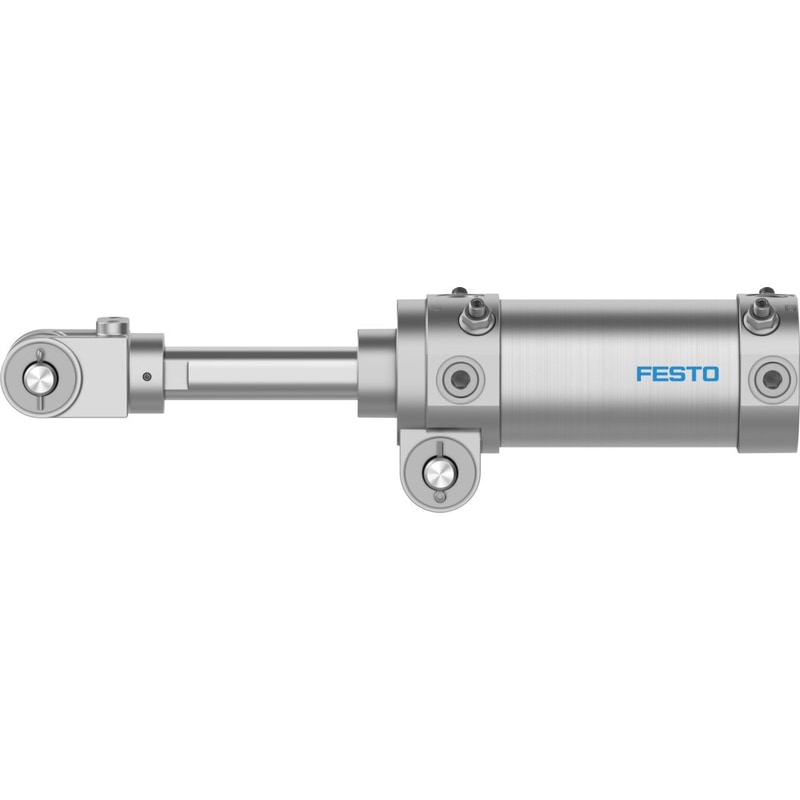

DWA-50-50-Y - Image 3

DWA-50-50-Y

$211.41

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 549543 Category: Tag:
DW_ENUS.PDF
Brand:

hinge cylinder
DWA-50-50-Y
Part number: 549543

Stroke  50 mm
Piston diameter  50 mm
Piston rod thread  M16x1,5
Distance of rod clevis to swivel mounting  16 mm
Cushioning  PPV: Pneumatic cushioning adjustable at both ends
Assembly position  Any
Design structure  PistonPiston rod with rod clevisSwivel mounting on bearing capCylinder barrel
Speed regulation  Integrated flow control valves on both sides
Position detection  No
Piston-rod end  Male thread with rod clevis
Operating pressure  1 … 10 bar
Mode of operation  double-acting
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Weight 3.15702 lbs
Dimensions 10.433071 × 3.543307 × 3.543307 in
Piston diameter

50 mm
Stroke

50 mm
Pneumatic connection

Rc1/4
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

1178 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke

990 N
