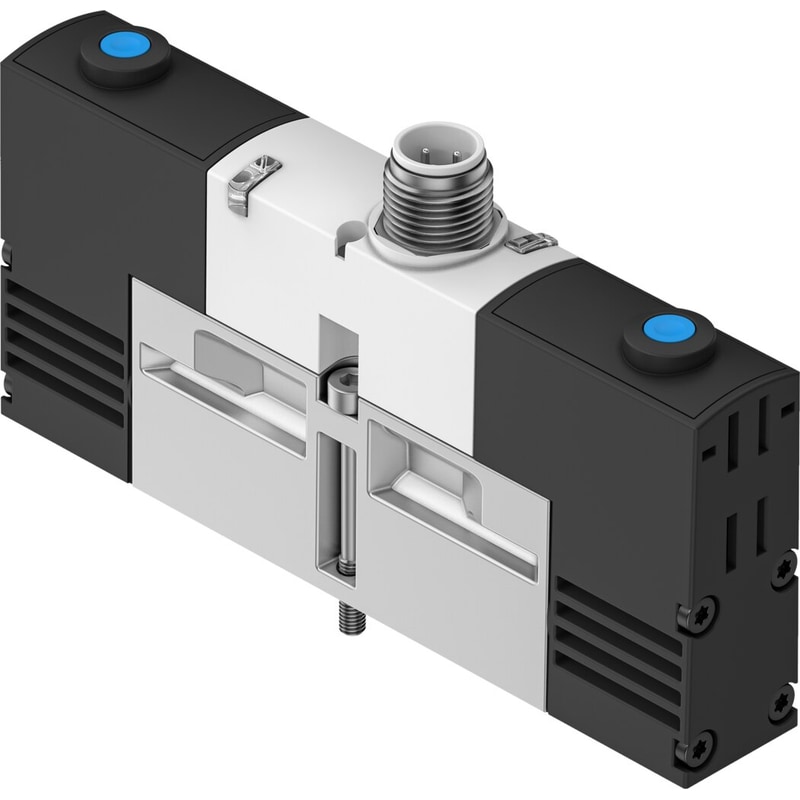

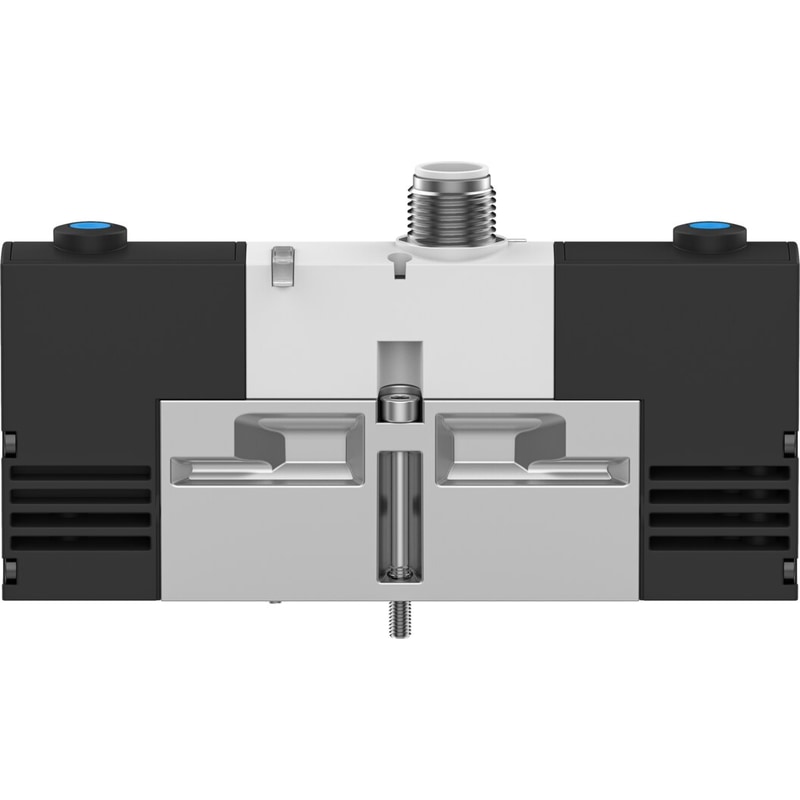

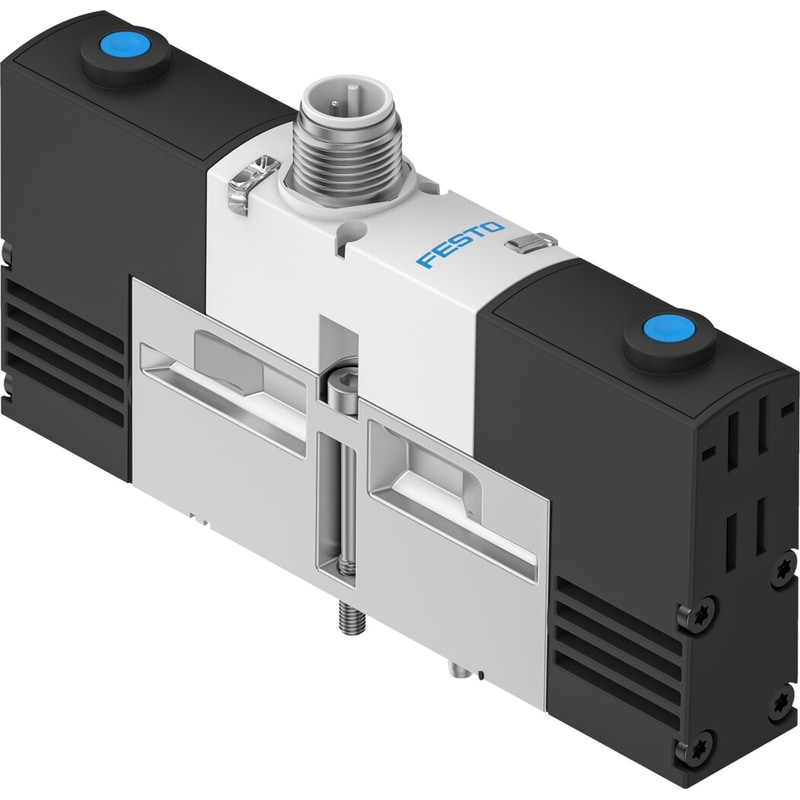

solenoid valve VSVA-B-T32C-AZH-A2-1R5L with central plug, round design M12x1. Valve function=2×3/2 closed, monostable, Type of actuation=electrical, Width=18 mm, Standard nominal flow rate=400 l/min, Operating pressure=3 – 10 bar

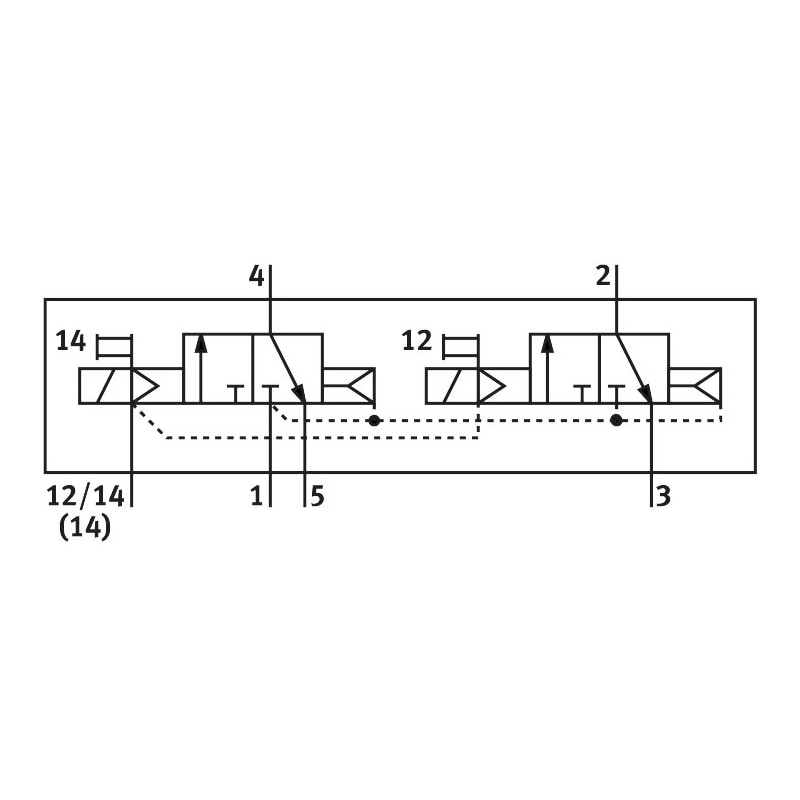

| Valve function | 2×3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 18 mm |
| Standard nominal flow rate | 400 l/min |
| Operating pressure | 3 … 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65 |
| Authorisation | C-Tickc CSA us (OL)c UL us – Recognized (OL) |
| Nominal size | 5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
