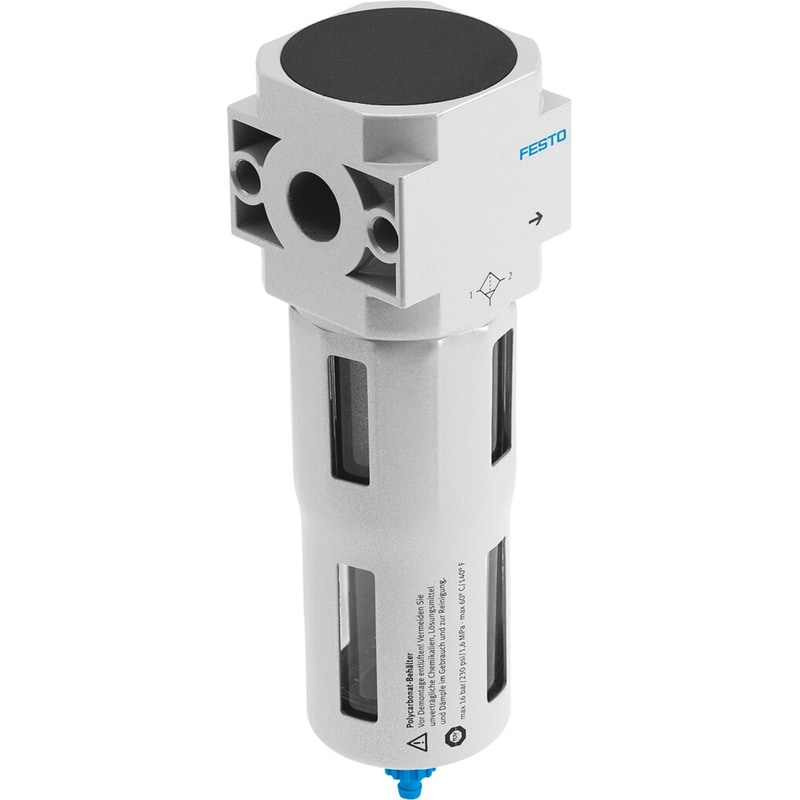

| Series | D |
|---|---|
| Size | Midi |
| Type code | LFMA |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Fully automatic |
| Symbol | 00991520 |
| Operating pressure | 1.448 bar … 12.411 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4]Inert gas |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2]Inert gas |
| Filter efficiency | 99.9999 % |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 1 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Mounting position | Vertical +/- 5° |
| Housing material | Die-cast zinc |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Product weight | 644.962 g |
| Weight | 1.431021 lbs |
|---|---|
| Dimensions | 8.661417 × 2.559055 × 2.362205 in |
| Series | D |
| Size | Midi |
| Structural design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Fully automatic |
| Symbol | 00991520 |
| Operating pressure | 2 bar … 12 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4], Inert gas |
| Air quality class at the output | Compressed air according to ISO 8573-1:2010 [3:4:2], Inert gas |
| Filter efficiency | 99.9999 % |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 1 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Filter efficiency, fine particles | 99995 % |
| MPPS | 0.05 µm |
| MPPS filter efficiency | 99.95 % |
| Residual oil content | 0.01 mg/m³ |
| Filter efficiency, oil aerosol | 99 % |
| Type of mounting | With accessories |
| Mounting position | Vertical +/- 5° |
| Housing material | Die-cast zinc |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
| Note on materials | RoHS-compliant |
| Product weight | 644.962 g |
