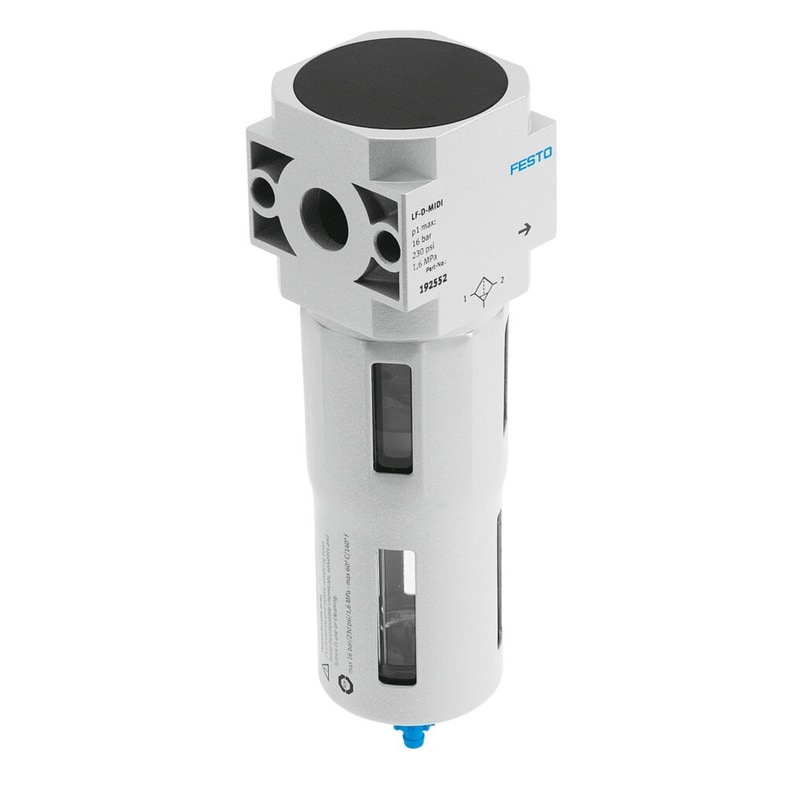

Name: LF-D-MIDI-U
Brand: Festo
SKU: 546422
Availability: InStock

filter LF-D-MIDI-U Without threaded connection plates with FRB threaded pin. Degree of filtration: 40 µm, with bowl guard and manual condensate drain. Size=Midi, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=manual rotary

Size	Midi
Series	D
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	manual rotary
Design structure	Sintered filter with centrifugal separator
Max. condensate volume	1.462 oz(l)
Bowl guard	Metal bowl guard
Operating pressure	0 … 240 Psi
Standard nominal flow rate	94.5 cfm
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Storage temperature	14 … 140 °F

Size	Midi
Series	D
Mounting position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	Manually rotating
Structural design	Sinter filter with centrifugal separator
Bowl guard	Metal bowl guard
Degree of condensate separation	75 %
Symbol	00991519
Operating pressure	0 psi … 232 psi
Normal nominal flow rate (normalized to DIN 1343)	12012.71 l/min
Operating medium	Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10 °C … 60 °C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:8:4], Inert gas
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Pore size	40 µm
Product weight	694.575 g
Type of mounting	With mounting bracket
Note on materials	RoHS-compliant
Compressed air filter material	PE
Housing material	Die-cast zinc
Material of bowl	PC
