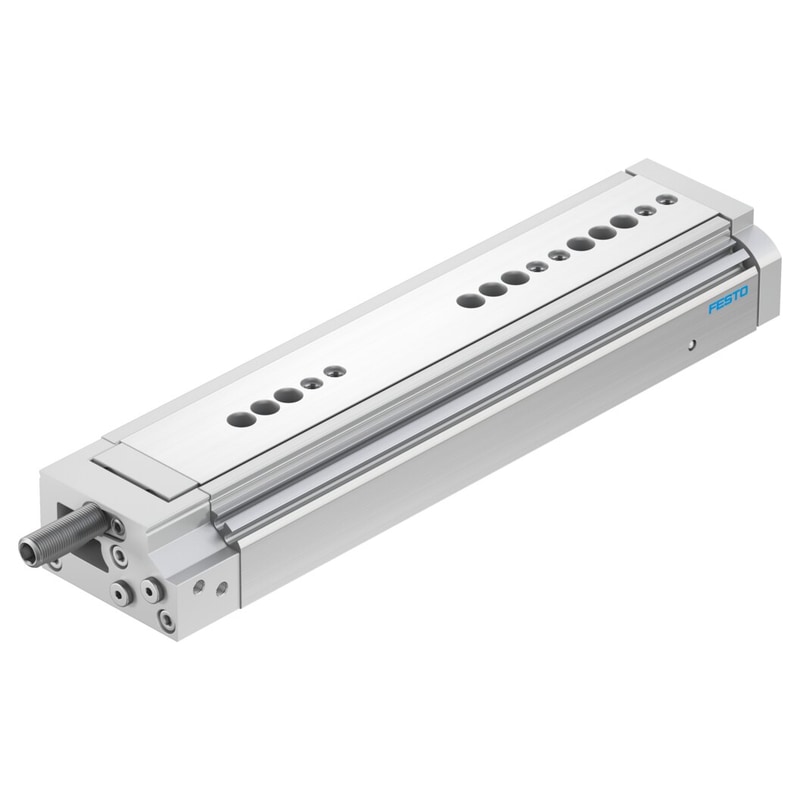

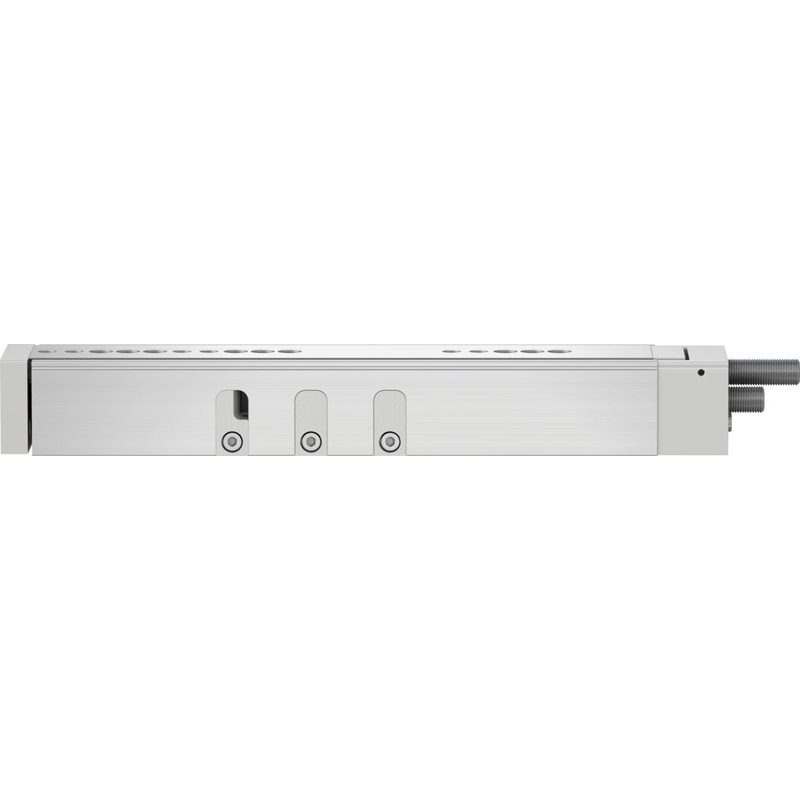

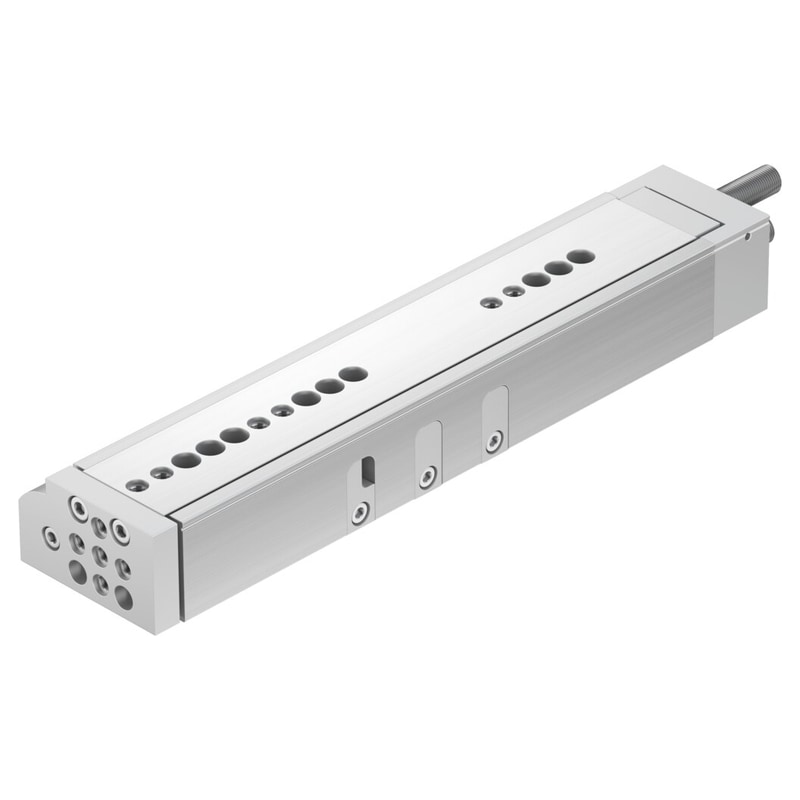

mini slide DGSL-12-150-PA With position sensing, highly accurate, durable ball-cage guide, flexible damping on both sides without metallic end position (P). Stroke=150 mm, Adjustable endposition range/front length=87 mm, Adjustable endposition range/rear length=25,5 mm, Piston diameter=16 mm, Operating mode of drive unit=Yoke
| Stroke | 150 mm |
|---|---|
| Adjustable endposition range/front length | 87 mm |
| Adjustable endposition range/rear length | 25.5 mm |
| Piston diameter | 16 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1 … 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | 0,3 mm |
