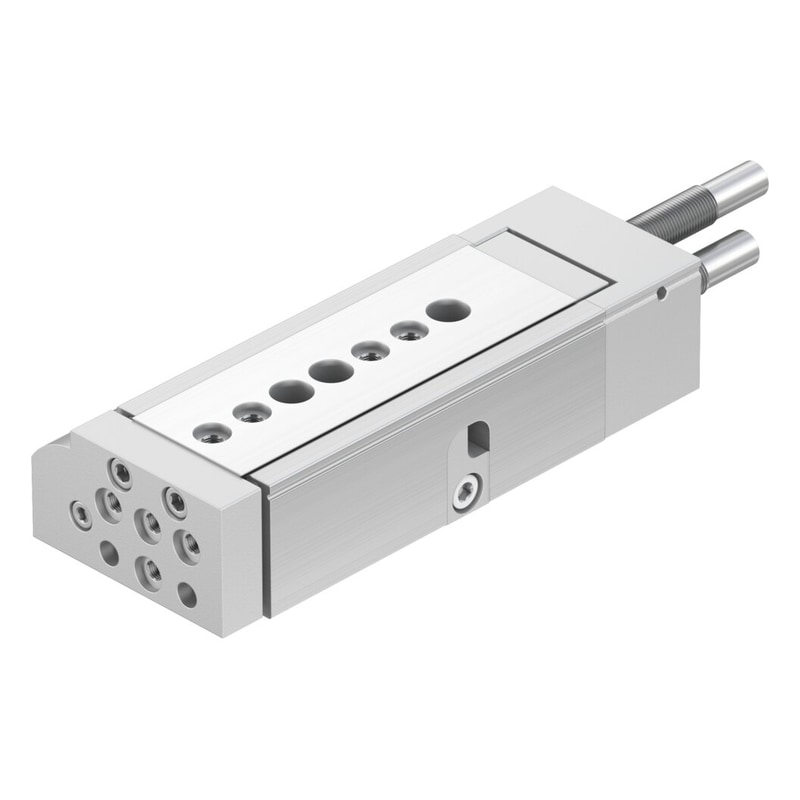

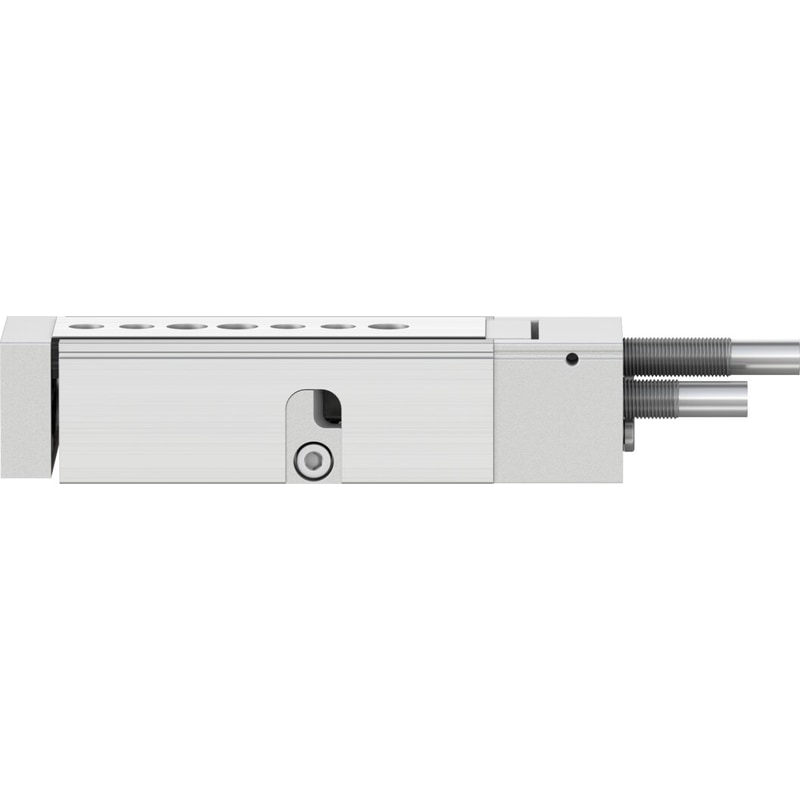

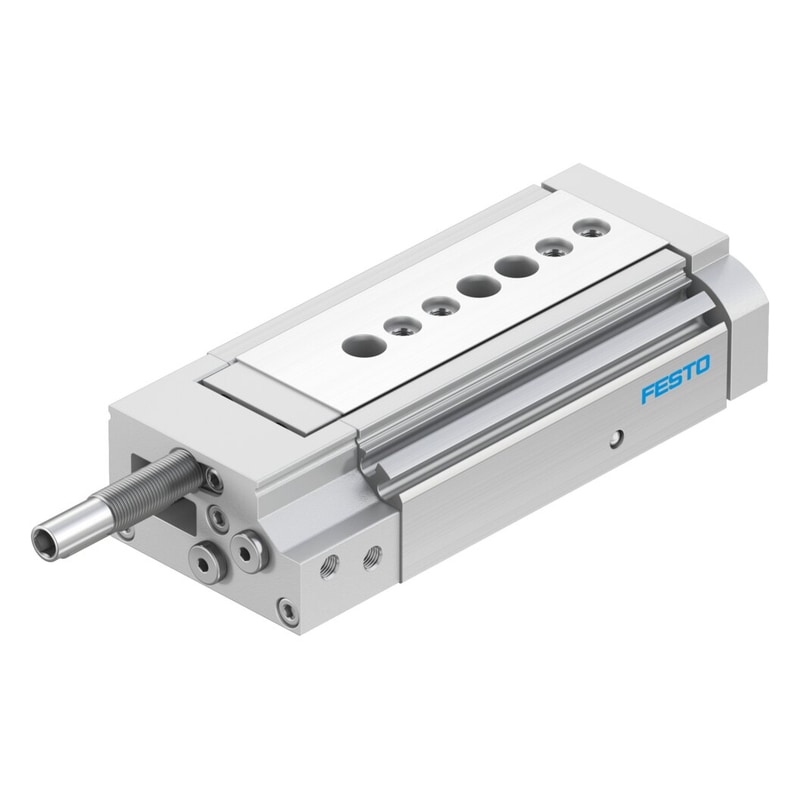

mini slide DGSL-10-30-Y3A For position sensing, with highly accurate, durable ball-cage guide and very high repetition accuracy, hydraulic shock absorbers on both sides (Y3). Stroke=30 mm, Adjustable endposition range/front length=24 mm, Adjustable endposition range/rear length=15 mm, Piston diameter=12 mm, Operating mode of drive unit=Yoke
| Stroke | 30 mm |
|---|---|
| Adjustable endposition range/front length | 24 mm |
| Adjustable endposition range/rear length | 15 mm |
| Piston diameter | 12 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | Y3: Shock absorber at both ends, progressive |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 … 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | ±0,01 mm |
