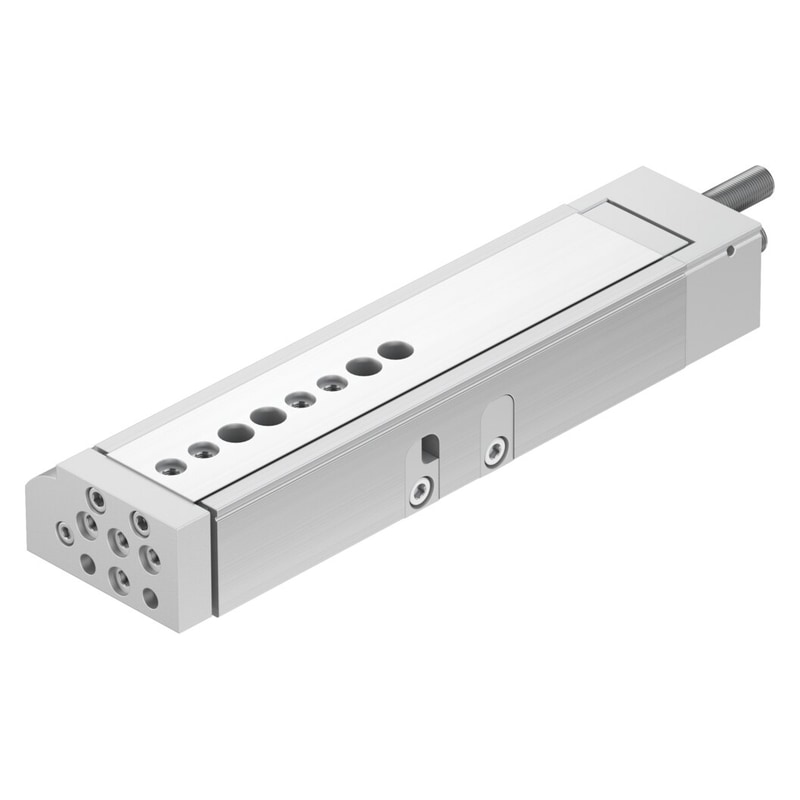

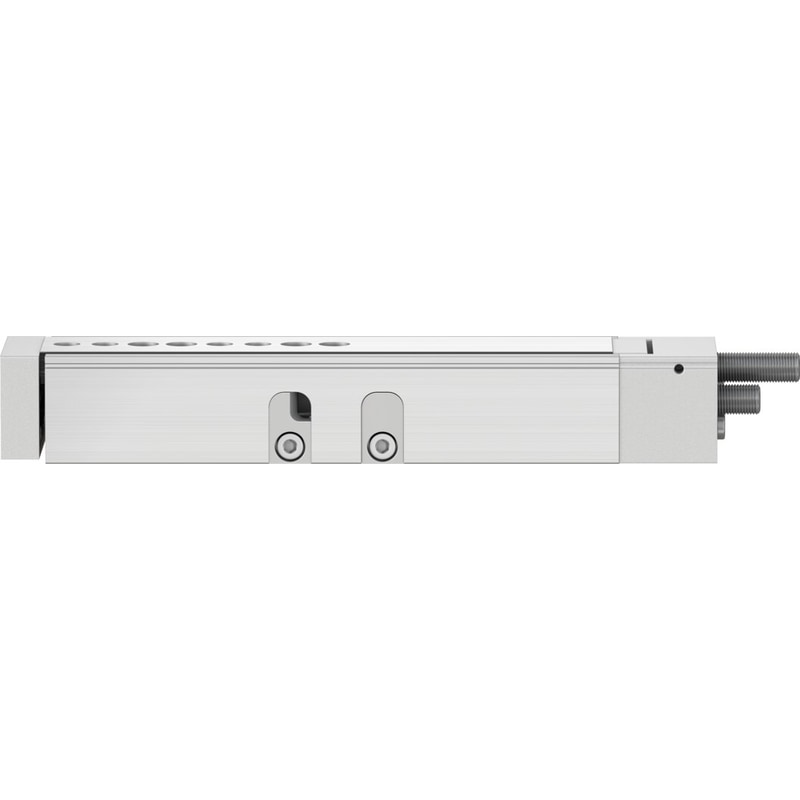

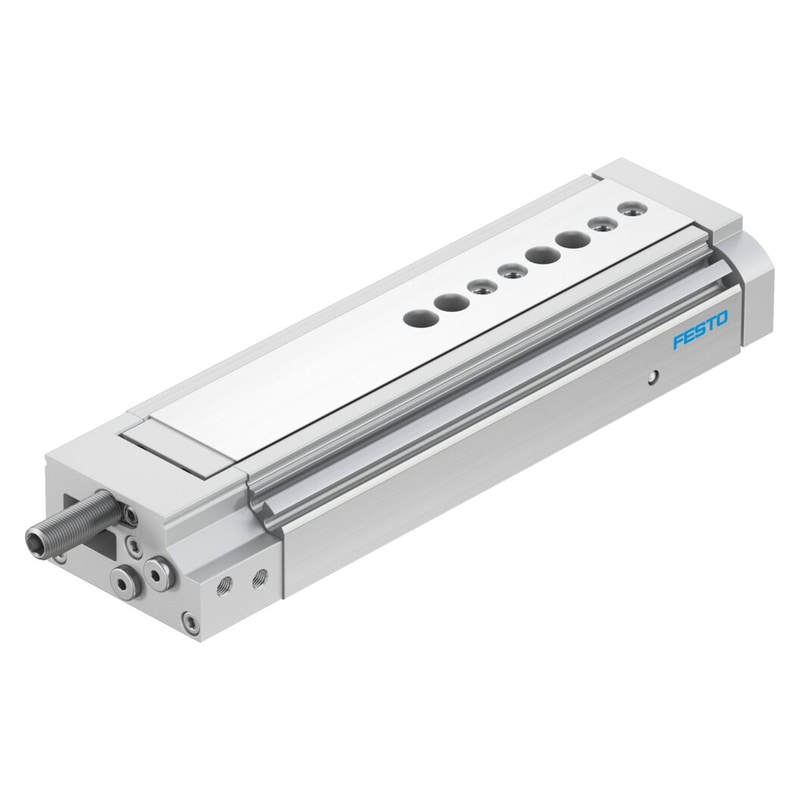

mini slide DGSL-10-80-P1A For position sensing, with highly accurate, durable ball-cage guide and very high repetition accuracy, flexible damping on both sides with metallic end position (P1). Stroke=80 mm, Adjustable endposition range/front length=51,5 mm, Adjustable endposition range/rear length=20 mm, Piston diameter=12 mm, Operating mode of drive unit=Yoke
| Stroke | 80 mm |
|---|---|
| Adjustable endposition range/front length | 51.5 mm |
| Adjustable endposition range/rear length | 20 mm |
| Piston diameter | 12 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P1: Flexible cushioning rings/plates with stop at both ends |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 … 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | ±0,01 mm |
