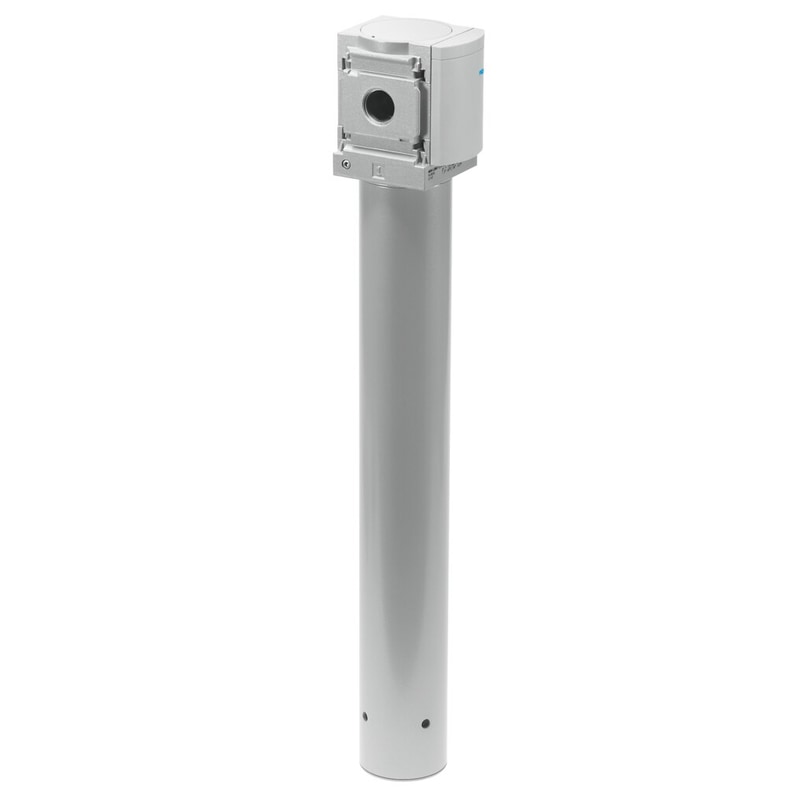

Membrane air dryer MS6N-LDM1-3/8-P20
Membrane air dryer MS6N-LDM1-3/8-P20 - Image 2

Membrane air dryer MS6N-LDM1-3/8-P20

$956.01

SKU: 543654
UNSPSC: 23201202
GTIN:

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 543654 Category: Tag:
MS6-LDM1-NPT_ENUS.PDF
Brand:

membrane air dryer MS6N-LDM1-3/8-P20 Reduced pressure dew-point, with metal bowl, direction of flow: from left to right Size=6, Series=MS, Assembly position=Vertical +/- 5°, Design structure=Membrane dryer, Operating pressure=3 – 12,5 bar

Size  6
Series  MS
Assembly position  Vertical +/- 5°
Design structure  Membrane dryer
Operating pressure  3 … 12.5 bar
Standard nominal flow rate  200 l/min
Operating medium  Compressed air in accordance with ISO8573-1:2010 [1:4:2]
Note on operating and pilot medium  Lubricated operation not possible
Pressure dew-point reduction  20 K
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Storage temperature  ‘-20 … 60 °C
Air purity class at output  Compressed air to ISO8573-1:2010 [1:3:2]
Medium temperature  2 … 50 °C
Weight 3.007105 lbs
Dimensions 16.220472 × 6.496063 × 8.110236 in
Size

6
Series

MS
Mounting position

Vertical +/- 5°
Structural design

Membrane dryer
Symbol

00991516
Operating pressure

3 bar … 12.5 bar
Normal nominal flow rate (normalized to DIN 1343)

200 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [1:4:2]
Information on operating and pilot media

Operation with oil lubrication not possible
Pressure dew point reduction

20 K
Corrosion resistance class (CRC)

2 – Moderate corrosion stress
LABS (PWIS) conformity

VDMA24364-B2-L
Storage temperature

-20 °C … 60 °C
For use in the food industry

See supplementary material information
Air quality class at the output

Compressed air as per ISO 8573-1:2010 [1:3:2]
Temperature of medium

2 °C … 50 °C
Ambient temperature

2 °C … 50 °C
Product weight

1050 g
Type of mounting

With accessories
Pneumatic connection 1

3/8 NPT
Pneumatic connection 2

3/8 NPT
Note on materials

RoHS-compliant
Housing material

Die-cast aluminum
Material of bowl

Wrought aluminum alloy
