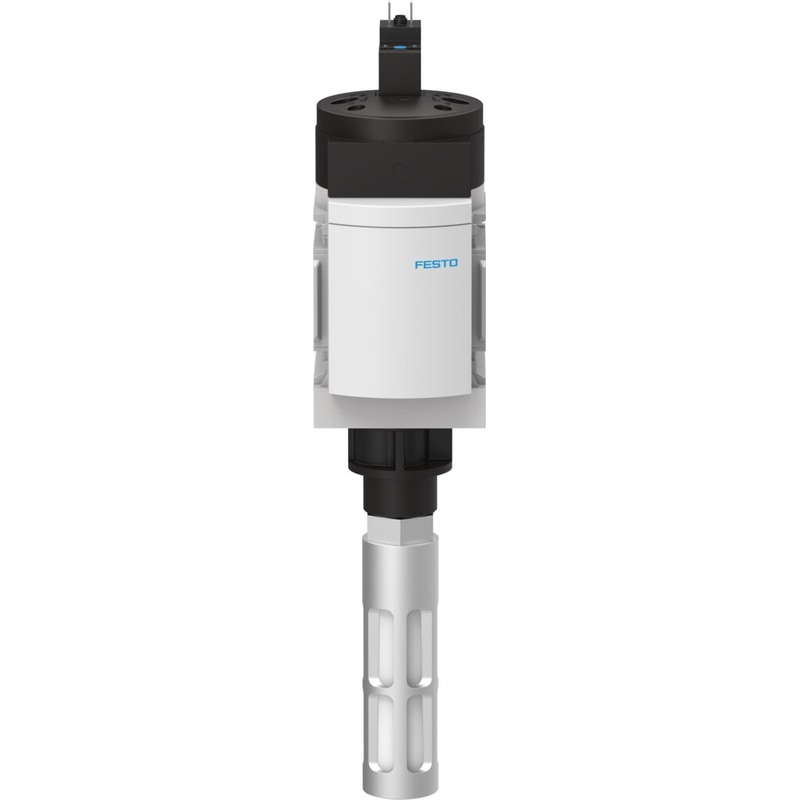

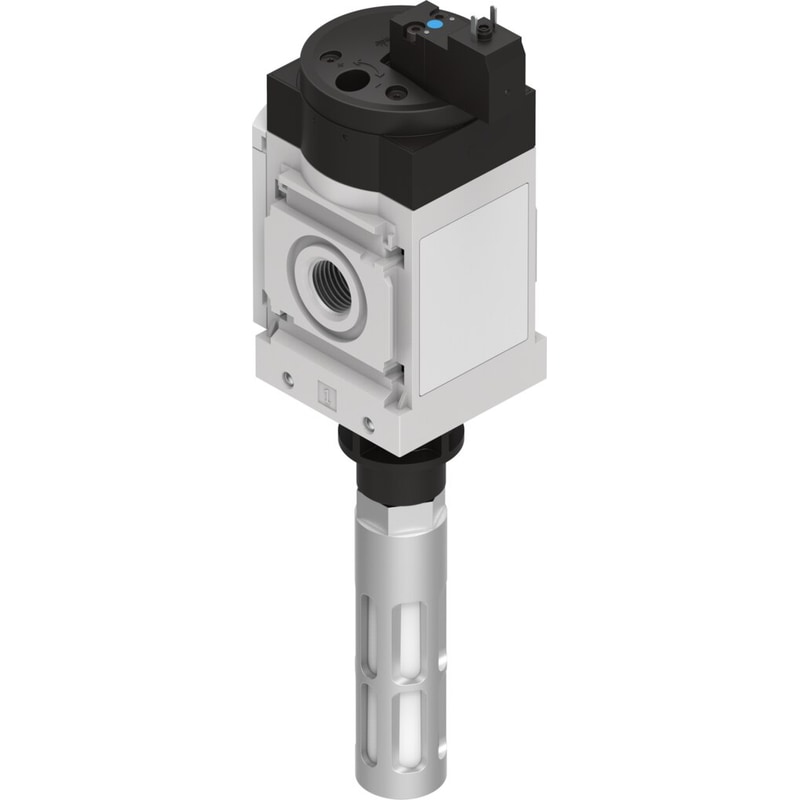

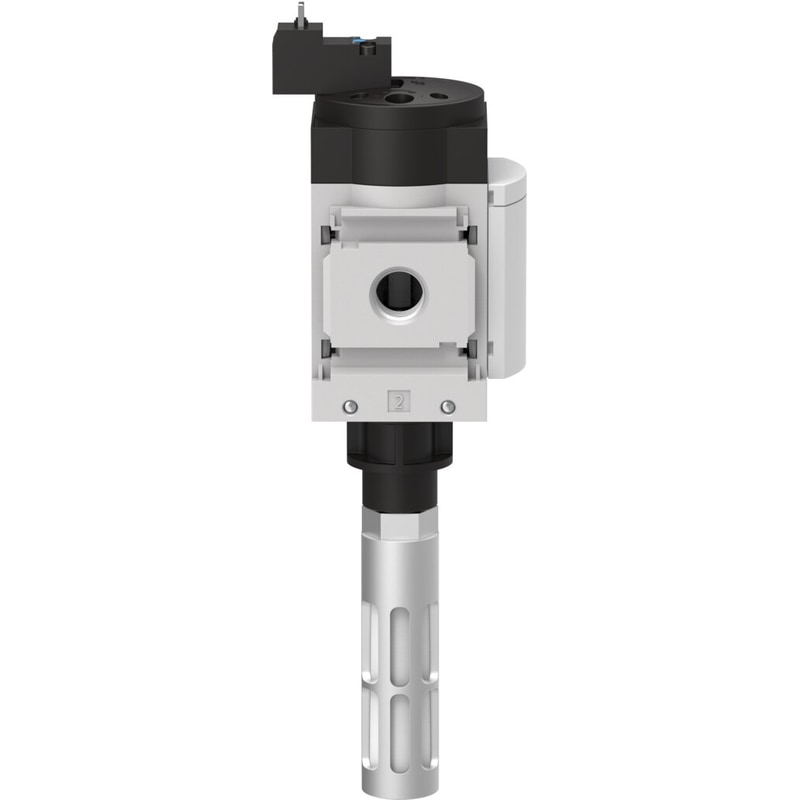

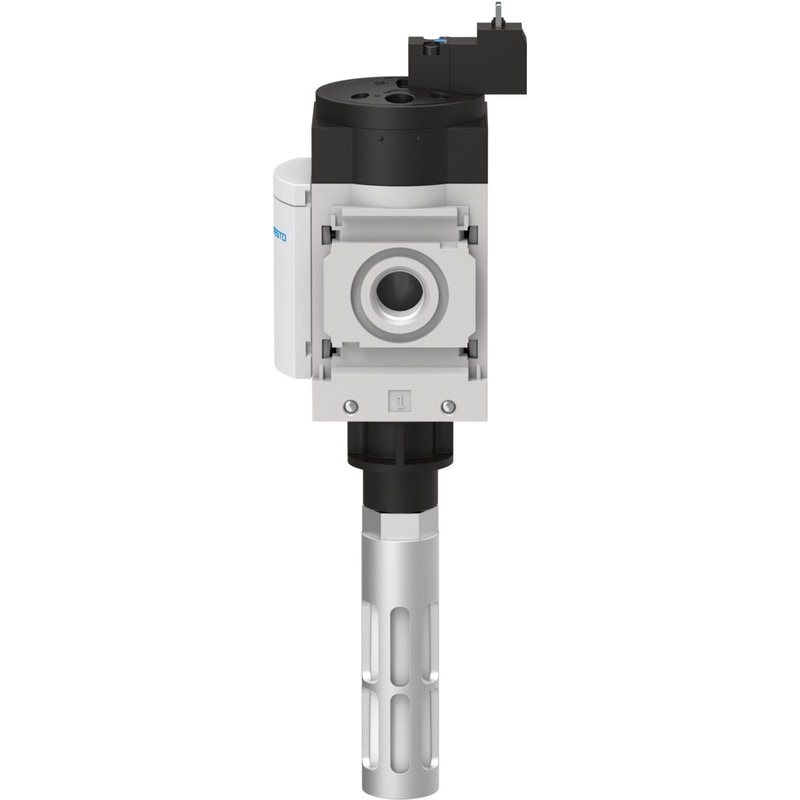

on-off valve MS6-EE-1/2-10V24-S-Z Electrical, with silencer, direction of flow: from right to left Design structure=Piston slide, Type of actuation=electrical, Exhaust-air function=not throttleable, Manual override=Pushing, Type of reset=mechanical spring
| Design structure | Piston slide |
|---|---|
| Type of actuation | electrical |
| Exhaust-air function | not throttleable |
| Manual override | Pushing |
| Type of reset | mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3/2 closed, monostable |
| Operating pressure | 4 … 10 bar |
| C value | 29 l/sbar |
| b value | 0.4 |
| Standard nominal flow rate | 7,000 l/min |
| Duty cycle | 1 |
| Characteristic coil data | 24 V DC: 2.5 W |
