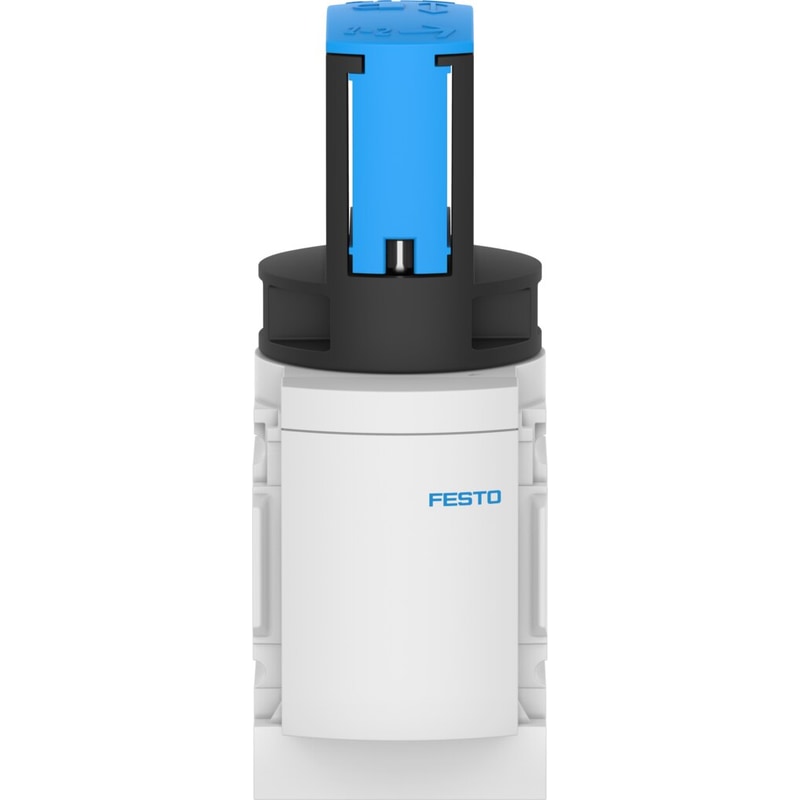

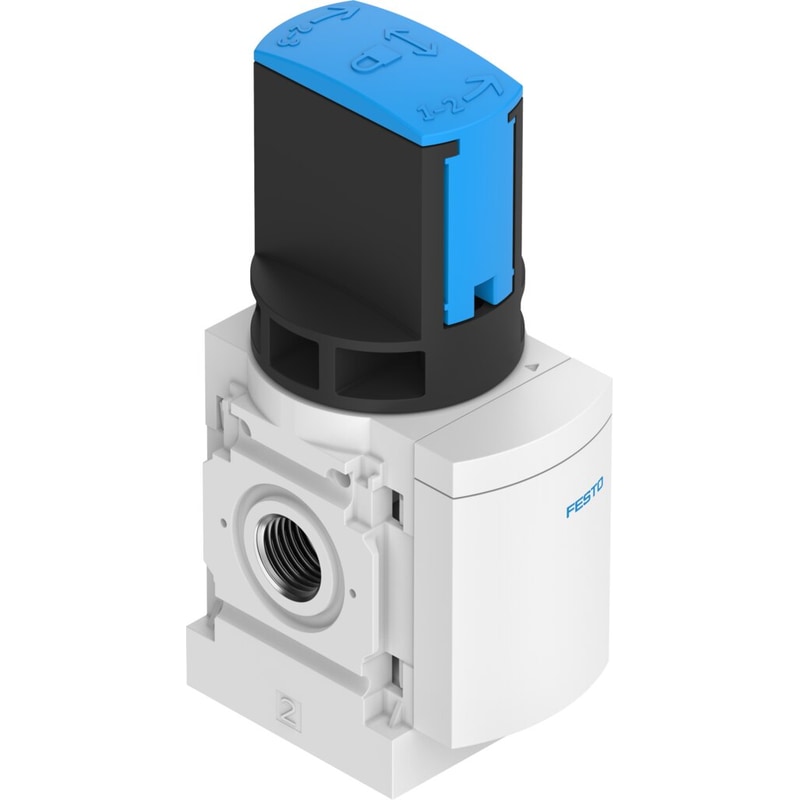

on-off valve MS4-EM1-1/4-Z Manual, direction of flow: from right to left. Design structure=Rotary slide valve, Type of actuation=manual, Exhaust-air function=not throttleable, Type of piloting=direct, Valve function=3/2 bistable
| product type | Manual Soft-Start Valve |
|---|---|
| Port Size | 1/4″ Port Connection |
| options | Right to Left Flow |
| Weight | 0.528417 lbs |
|---|---|
| Dimensions | 5.314961 × 1.968504 × 2.952756 in |
| Structural design | Rotary gate valve |
| Actuation type | Manual |
| Exhaust air function | Without flow control option |
| Type of control | Direct |
| Symbol | 00991670 |
| Valve Function | 3/2, bistable |
| Operating pressure | 0 bar … 14 bar |
| C value | 9 l/sbar |
| b-value | 0.39 |
| Normal nominal flow rate (normalized to DIN 1343) | 2200 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| For use in the food industry | See supplementary material information |
| Type of mounting | With accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 190 g |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Seals material | TPE-U(PU) |
| Housing material | Die-cast aluminum |
