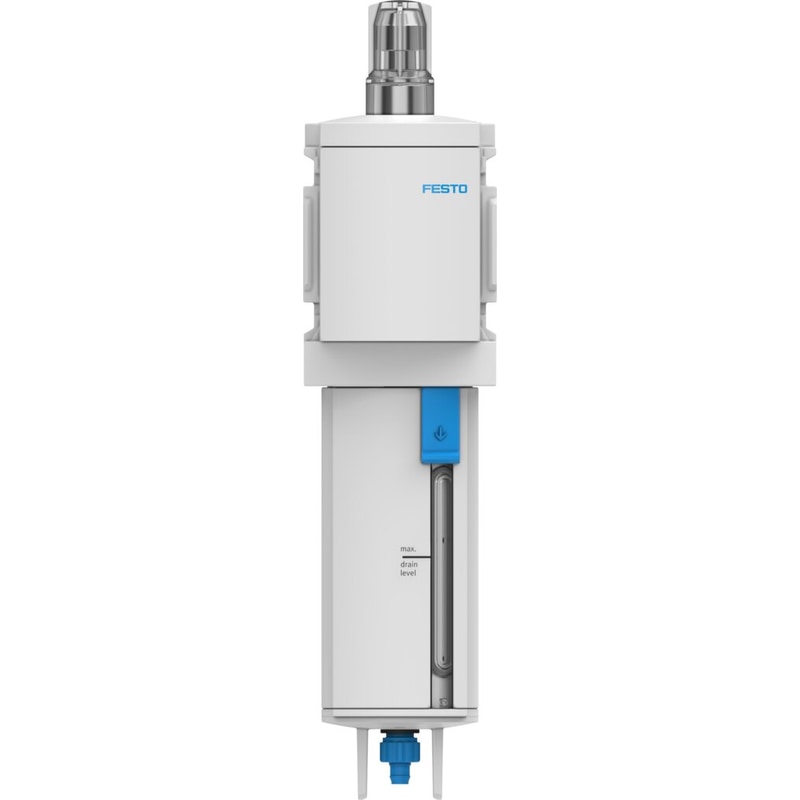

micro filter MS4-LFM-1/4-AUV-DA-Z 0.01 µm filter, metal bowl guard, fully automatic condensate drain, with differential pressure indicator, flow direction from right to left. Series=MS, Size=4, Design structure=Fibre filter, Grade of filtration=0,01 µm, Condensate drain=fully automatic
| product type | Micro Filter |
|---|---|
| Port Size | 1/4″ Port Connection |
| filtration | 0.01µm |
| Bowl Type | Metal Bowl |
| Drain Type | Fully Automatic |
| options | Differential Pressure Display |
| option | Right to Left Flow |
| Weight | 0.972239 lbs |
|---|---|
| Dimensions | 9.84252 × 3.149606 × 2.283465 in |
| Series | MS |
| Size | 4 |
| Structural design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Fully automatic, Manual, non-detenting |
| Symbol | 00991544 |
| Operating pressure | 2 bar … 12 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:-:4], Inert gas |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [3:-:2] |
| Max. standard flow rate for air quality class | 360 l/min |
| Min. standard flow rate for air quality class | 54 l/min |
| Filter efficiency | 99.9999 % |
| Max. condensate volume | 25 ml |
| Bowl guard | Integrated as metal bowl guard |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Storage temperature | -10 °C … 60 °C |
| Filter efficiency, fine particles | 99.995 % |
| MPPS | 0.05 µm |
| MPPS filter efficiency | 99.95 % |
| Residual oil content | 0.01 mg/m³ |
| Filter efficiency, oil aerosol | 99 % |
| Differential pressure display | Visual display |
| Type of mounting | With accessories |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Housing material | Die-cast aluminum |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | Die-cast aluminum, Wrought aluminum alloy |
| Inspection window material | PA |
| Seals material | NBR |
| Note on materials | RoHS-compliant |
| Product weight | 350 g |
