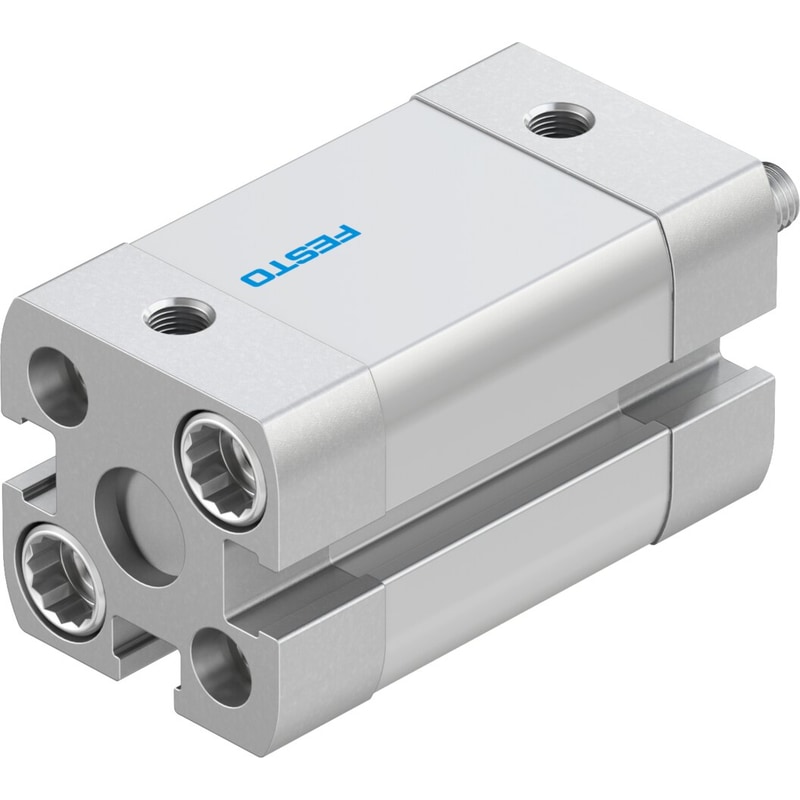

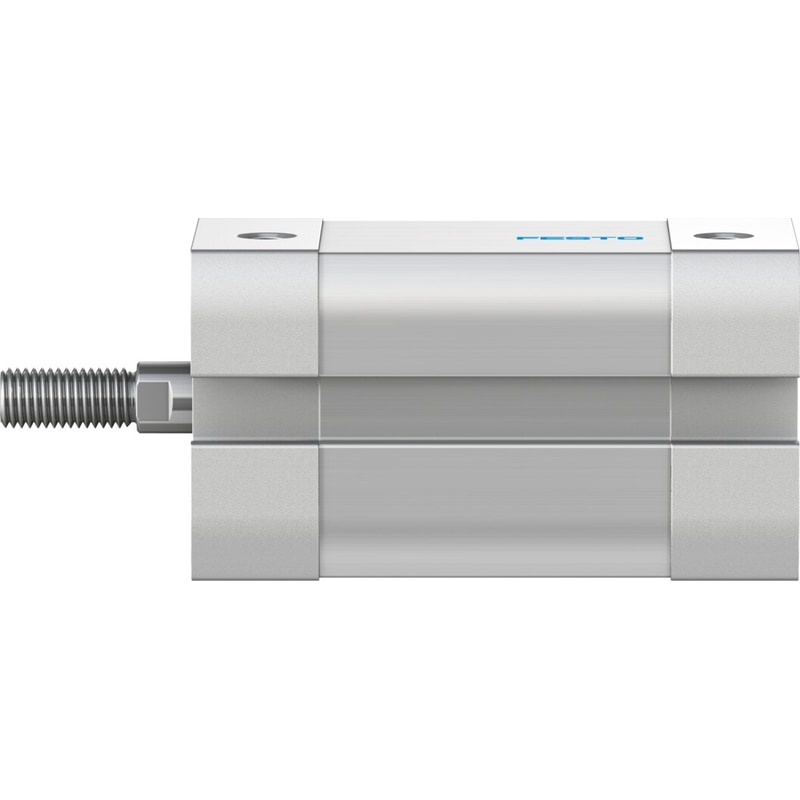

compact cylinder ADN-12-15-A-P-A With position sensing and external piston rod thread Stroke=15 mm, Piston diameter=12 mm, Piston rod thread=M5, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 15 mm |
|---|---|
| Piston diameter | 12 mm |
| Piston rod thread | M5 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Male thread |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 … 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
