Name: MS4N-LFR-1/4-D7-CUV-AS-Z
Brand: Festo
SKU: 535753
Availability: InStock

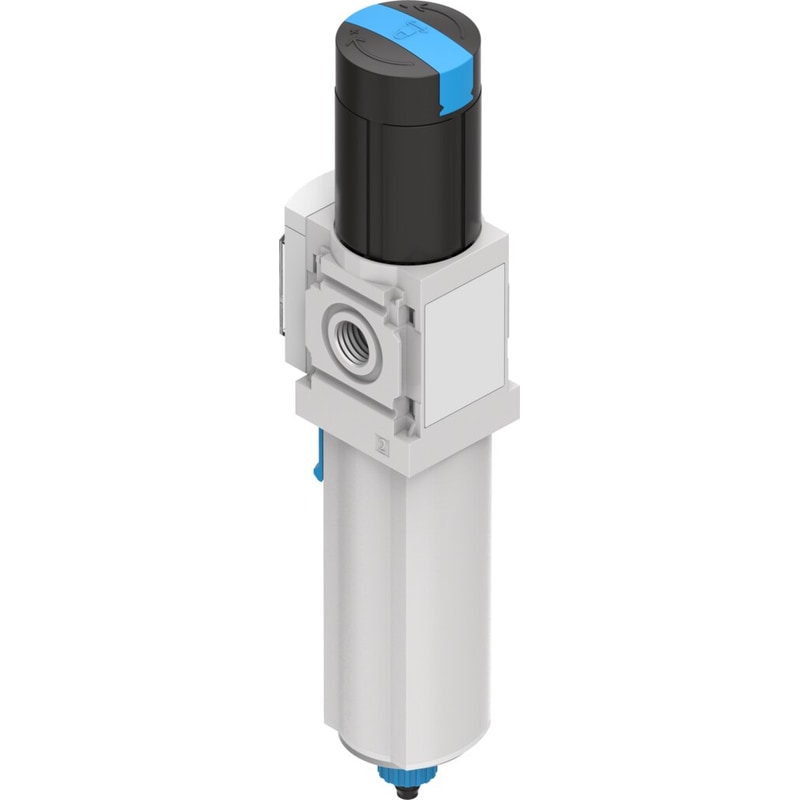

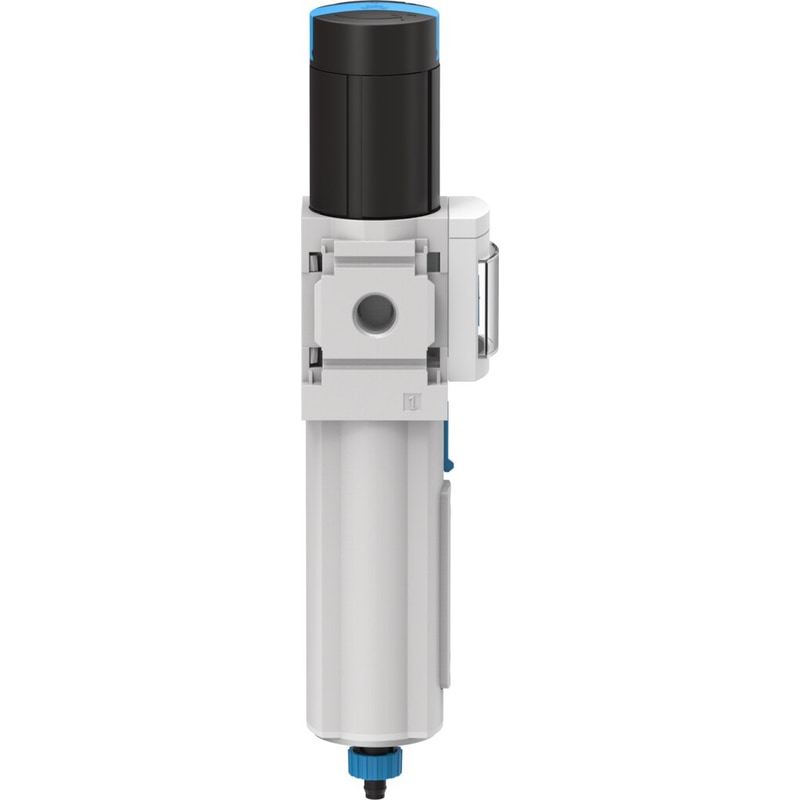

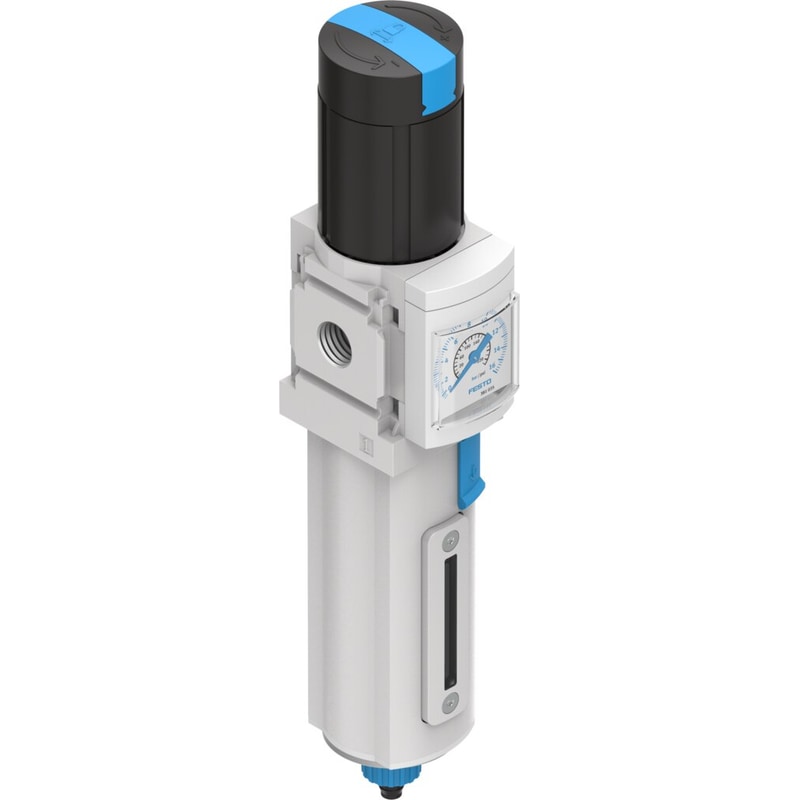

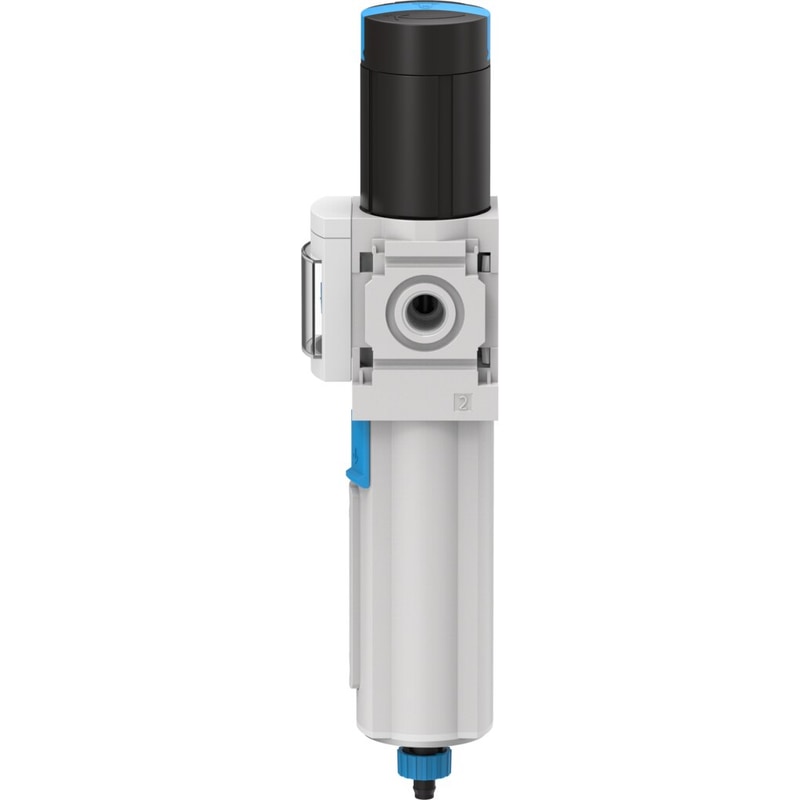

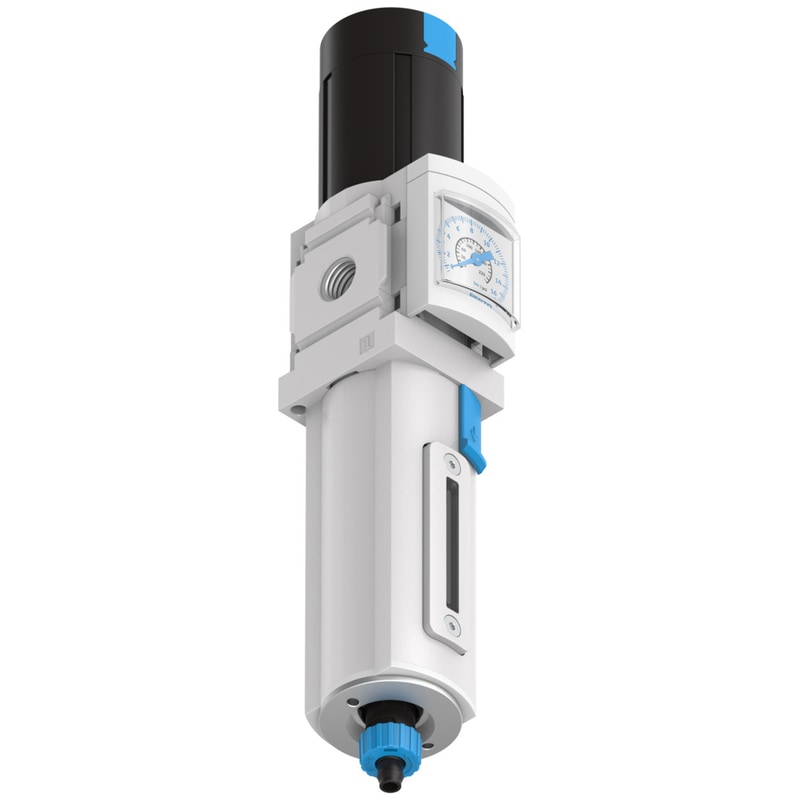

filter regulator MS4N-LFR-1/4-D7-CUV-AS-Z Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, metal bowl guard, fully automatic condensate drain, flow direction from right to left. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm

product type	Filter Regulator
Port Size	1/4″ Port Connection
pressure range	0.5-12bar (7.25-174PSI)
filtation	5µm
Bowl Type	Metal Bowl
Drain Type	Fully Automatic
option	Lockable

Weight	1.140914 lbs
Dimensions	11.023622 × 4.724409 × 3.543307 in
Size	4
Series	MS
Actuator lock	Rotary knob with detent, can be closed with accessories
Mounting position	Vertical +/- 5°
Grade of filtration	5 µm
Condensate drain	Fully automatic, Manual, non-detenting
Structural design	Filter regulator with pressure gauge
Max. condensate volume	25 ml
Controller function	Outlet pressure constant, With secondary exhausting, With return flow function
Bowl guard	Integrated as metal bowl guard
Degree of condensate separation	>75 %

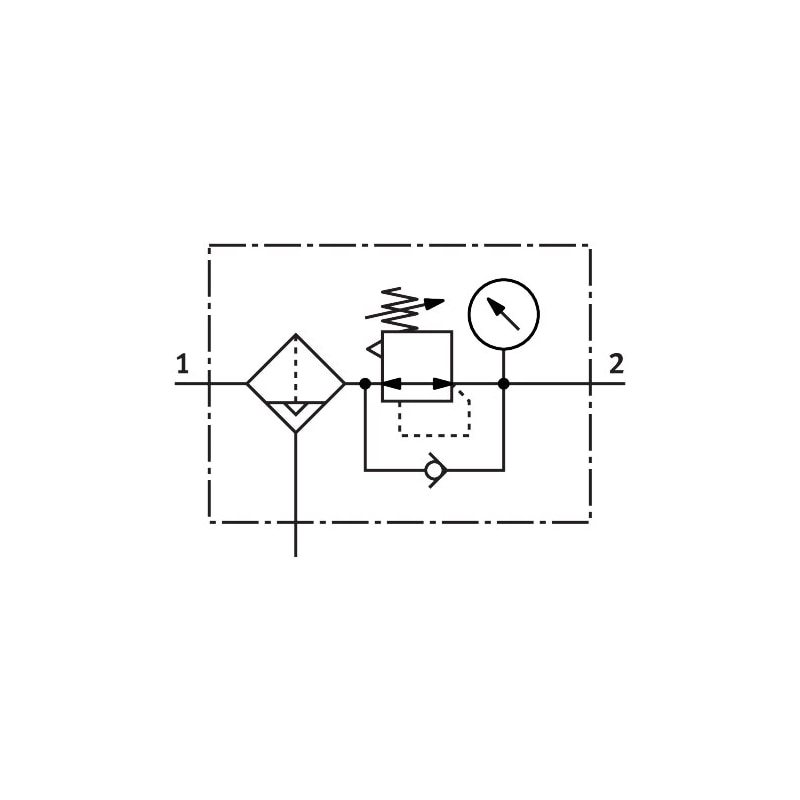

Symbol	00991587

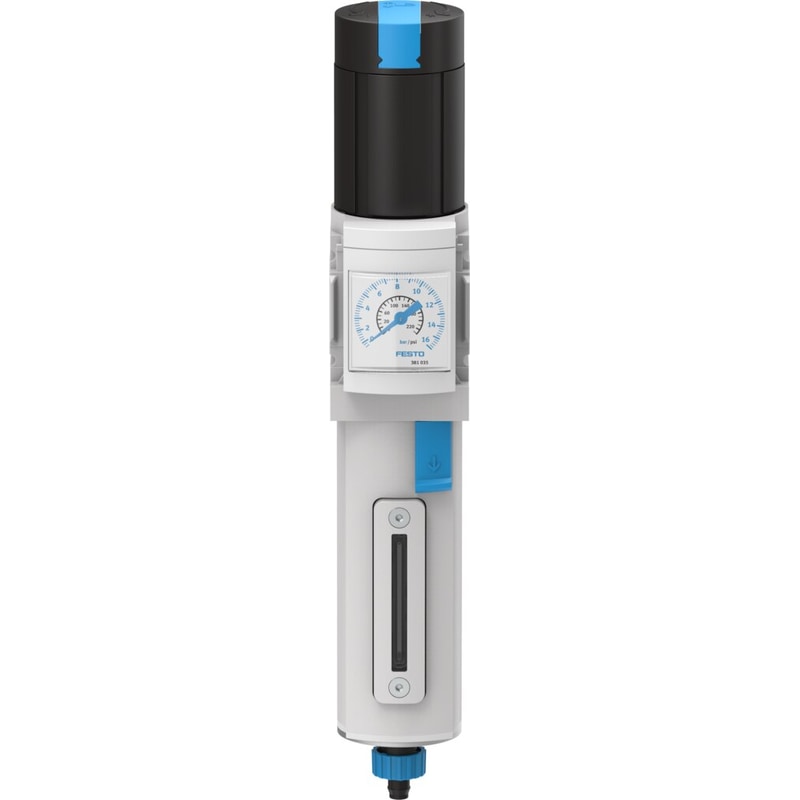

Pressure gauge	with pressure gauge
Operating pressure	2 bar … 12 bar
Pressure regulation range	0.5 bar … 12 bar
Max. pressure hysteresis	0.25 bar
Normal nominal flow rate (normalized to DIN 1343)	1200 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:-], Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10 °C … 60 °C
For use in the food industry	See supplementary material information
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [6:4:4]
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Pore size	<5 µm
Product weight	475 g
Type of mounting	With accessories
Pneumatic connection 1	1/4 NPT
Pneumatic connection 2	1/4 NPT
Note on materials	RoHS-compliant
Material of sub-base	Die-cast aluminum
Material of operator panel	PA, POM
Seals material	NBR
Compressed air filter material	PE
Housing material	Die-cast aluminum
Diaphragm material	NBR
Material of bowl	Die-cast aluminum, Wrought aluminum alloy
Inspection window material	PA
Separating disc material	POM
