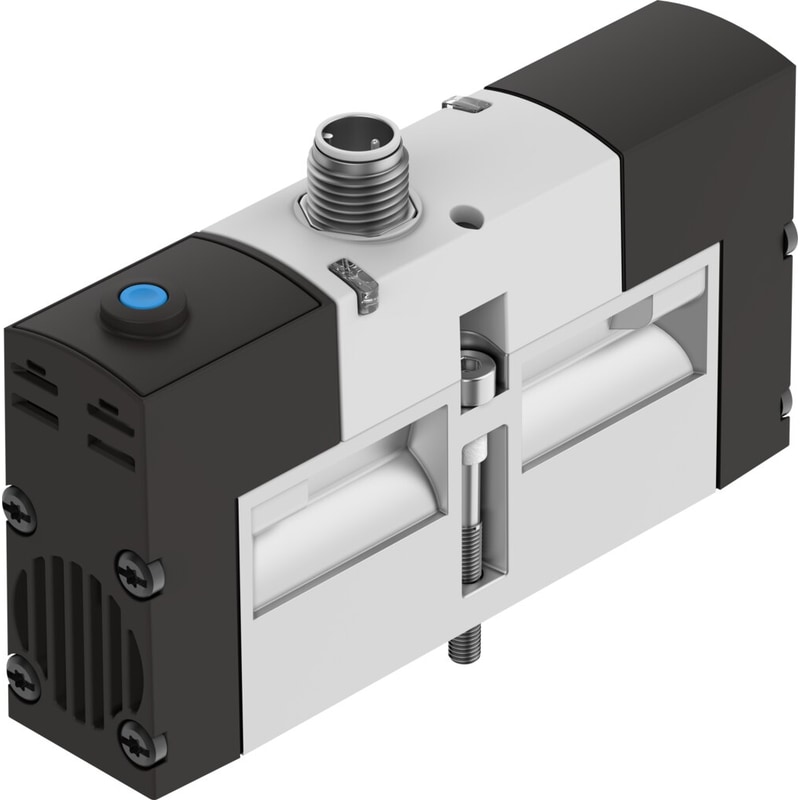

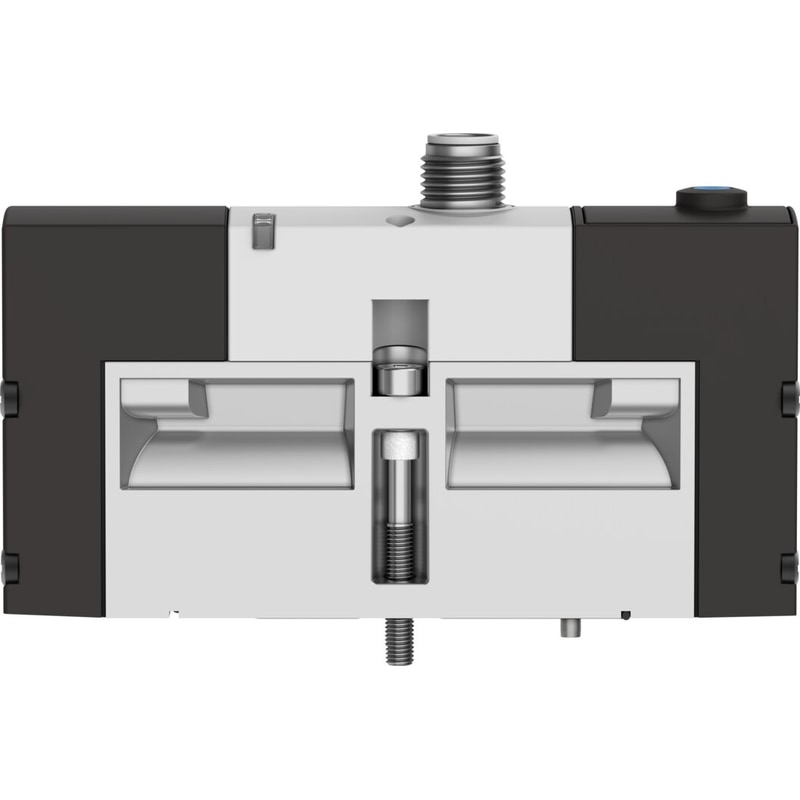

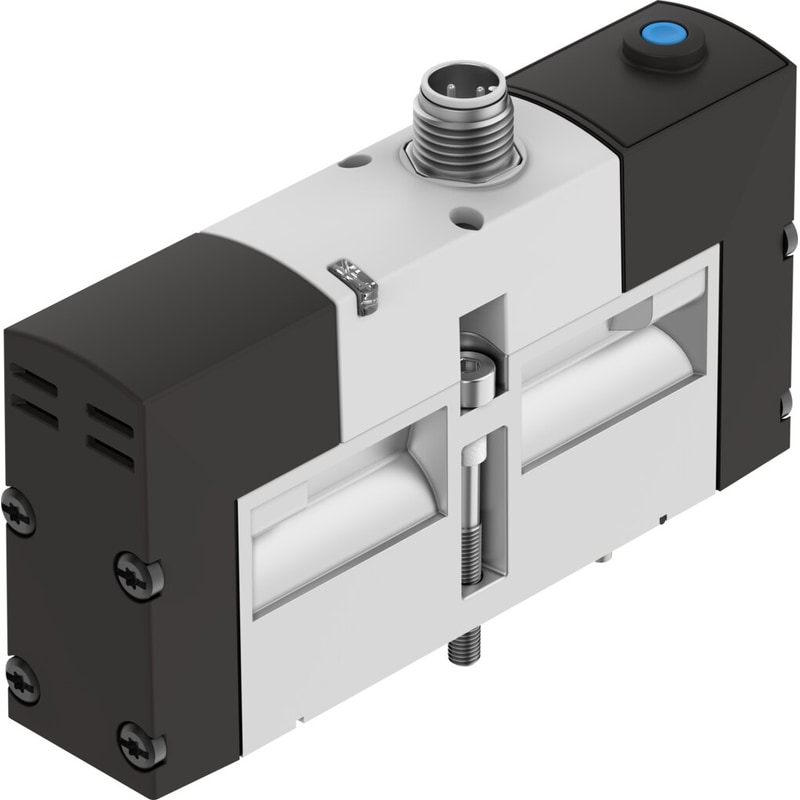

solenoid valve VSVA-B-M52-MZH-A1-1R5L with central plug, round design M12x1. Valve function=5/2 monostable, Type of actuation=electrical, Width=26 mm, Operating pressure=-0,9 – 16 bar, Design structure=Piston slide
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 26 mm |
| Operating pressure | ‘-0.9 … 16 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Protection class | IP65NEMA 4 |
| Authorisation | C-Tickc CSA us (OL)c UL us – Recognized (OL) |
| Nominal size | 9 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
