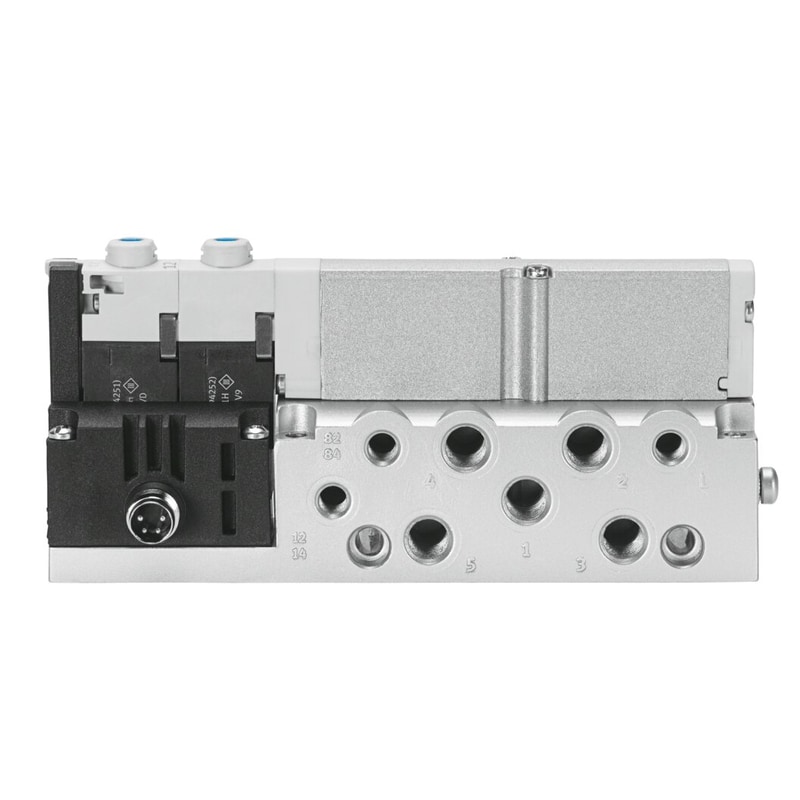

solenoid valve VMPA1-M1H-E-M7-PI With individual electrical connection, M8x1, 4-pin Valve function=5/3 exhausted, Type of actuation=electrical, Valve size=10 mm, Standard nominal flow rate=240 l/min, Operating pressure=3 – 8 bar

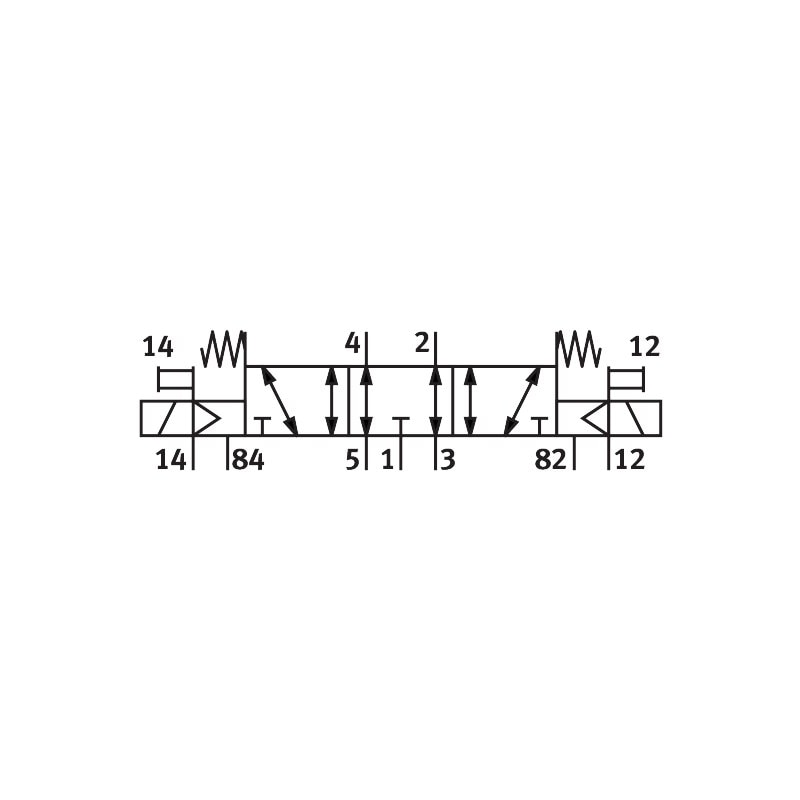

| Valve function | 5/3 exhausted |
|---|---|
| Type of actuation | electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 240 l/min |
| Operating pressure | 3 … 8 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Protection class | IP65to IEC 60529in assembled condition |
| Authorisation | c UL us – Recognized (OL) |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
